How to create Makefile and have any sample to refer ?

[miker]

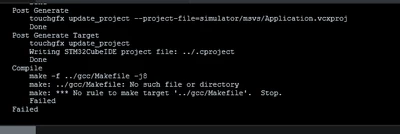

i'm successful to drive RGB LCD 480*272 with stm32cube IDE , but if i change to touchGFX and load into target , it have some following error , remark: simulator is OK









[miker]

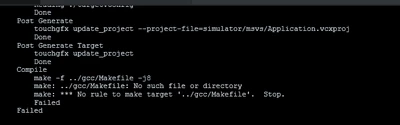

hello, everyone! I use a customed LCM driver board with STM32H750ZBT6 to drive a RGB_LCD that resolution is 480*272 , The LCD is normal and successful to drive when i generate the code with stm32CubeIDE ,  but if i generate the code with CMFile , using touchGFX to create UI , it have some error list under touchGFX















[Javier1]

Are you sure your makefile file is in that directory? , search for it and do the 'make' while youre in that path

[GaetanGodart]

Hello @miker ,



It seems you are using CMake toolchain.

You can only build and flash from TouchGFX Designer if you use STM32CubeIDE toolchain (gcc).

To build and flash using CMake, you should :

1. Generate code in TouchGFX Designer
2. Open the project in VS Code (with the STM32 extension) or use a terminal with CMake and Ninja/Make
3. Build the project using the CMake build system
4. Flash the board using STM32CubeProgrammer, ST-LINK Utility, or the VS Code extension



Regards,

[Osman SOYKURT]

Hello @miker ,

We have a dedicated article explaining in detail how to set up, build, and debug a TouchGFX project using CMake as build system. I recommend you to look at it : https://support.touchgfx.com/docs/development/scenarios/cmake-as-build-system

[Osman SOYKURT]

Hello @miker ,

Have you been able to solve your issue?
