how to create the roll wheel to switch the image within the same window ?

[miker]

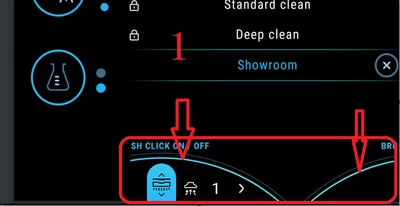

hello, i want to switch 5 images within the same window as following picture illustration; could you have any sample to me for reference ?











[GaetanGodart]

Hello @miker ,



Can you explain a bit more what you want to achieve?

Do you just want to show one image and then after some event (ex: button click or x time passed), you want to show another image instead of the first one?

Do you want to have a scrollable menu like on image one where we can see 2 small icons and you want to be able to move the focus? If so, you can look at the ScrollWheel example.

If it is something else, please explain it to me so I can give you an example or guide you on how to achieve the desired result.



Regards,

[miker]

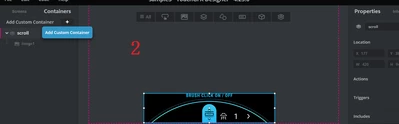

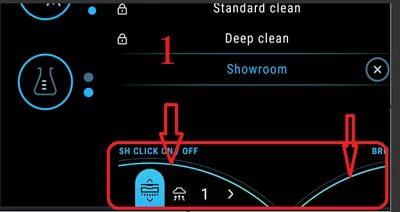

my aim is that when i slide the area of red rectangle box with the STM32H747I-DISO's touch panel, the image of red rectangle box will be replaced by another image , now i need use the container of scroll wheel to do that and create a custom container template , how to come true this function or release similar sample to refer ?







[GaetanGodart]

Hello @miker

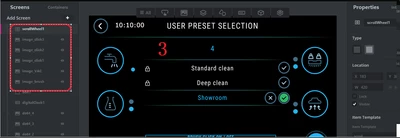

Ok so you have a scrollWheel (where we see "Standard clean", "Deep clean" and "Showroom") and an image below that.
You want to change the image below based on the currently selected item of the scollWheel?

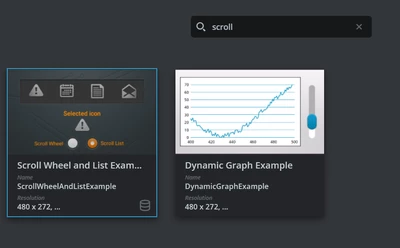

This is exactly what we do in the "Scroll Wheel and List Example" that is available in the Designer :

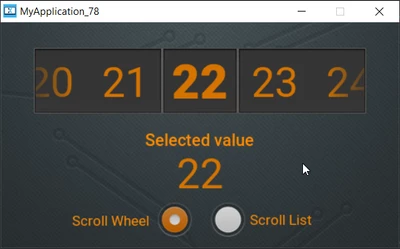

When selecting ScrollWheel, we update the textArea in real time but you could replace the textArea by your images and use a switch case to setVisible the right image :

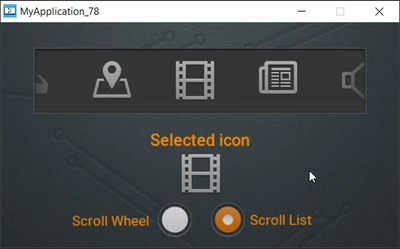

When you select the ScrollList, you see images instead of textArea (so this is what you want) but this time the image is only updated when you click on the item:



Note that this difference in behavior is because we don't use the same callbacks for the ScrollWheel and for the ScrollList:

But you could have either behavior with the scrollList or the scrollWheel.



I hope this answers you question!
If it does, I invite you to select this comment as "best answer".



Regards,
