I am using TouchGfx on STM32H747I-DISCO board. My final binay size is 2.13 GB

[shiv50084]

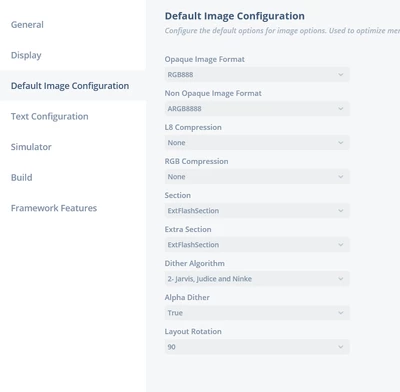

Default Image Configuation setting is :

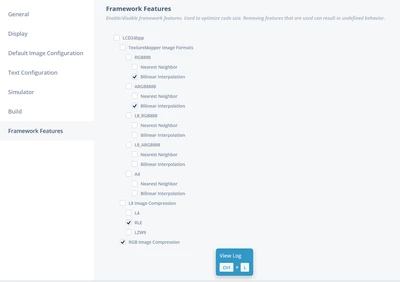

Framework Features:

Size of .bin file

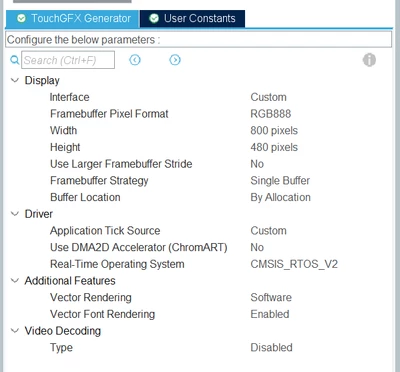

Touch Gfx setting in IOC file:



I also followed the link:

https://community.st.com/t5/stm32-mcus-products/generated-binary-file-size-is-too-large-2-3gb/td-p/300719



But still size is 2.13 GB.



Can you please help me to reduce the size of binary?

@UtkrantiYantra





[Tesla DeLorean]

Don't use a .BIN to describe two regions with large separation within the ARM's 4GB address space.

Use a .HEX, or divide into two or more .BINs describing the 0x08000000 and 0x90000000 regions separately.

[shiv50084]

@Tesla DeLorean

I am using this command

arm-none-eabi-objcopy.exe -O binary --only-section=ExtFlashSection "${BuildArtifactFileBaseName}.elf" ExtFlash.bin;arm-none-eabi-objcopy.exe -O binary --remove-section=ExtFlashSection "${BuildArtifactFileBaseName}.elf" STM32F746.bin



From mentioned link in query.



I need bin file for FPU. How can I create different  file from hex?

[Tesla DeLorean]

I don't expect the functionality of objcopy has changed. Review the command documentation and man page.

Check you're using the same/correct naming for the sections in the .ELF file. Check the .LD and what's described in the .MAP file

[MM..1]

In project settings uncheck bin file create.... you have hex ok.

[GaetanGodart]

Hello @shiv50084 ,



We made a video about reducing flash size : How to TouchGFX: Save flash memory

You could also check your compiler setting to reduce size (-Os for size optimization in GCC).



I hope this helps. :smiling_face_with_smiling_eyes:
If this comment or another one solved your problem, I invite you to select it as "best answer".



Regards,
