Recommendation for 4 - 7 inch CTP Touch display with STM32 controller to start with Touchgfx

[MRupp.11]

Hello,

i am looking about affordable LC Displays with intergrated STM32 controller to evaluate the cabapilities  of TouchGFX

Currently i only knew the displays from Reverdi.



But i would like to compare them with others.

Basic Requirements are:

- Screen Size beteen 4 - 7 "

 - Should have native support by TouchGFX with templates

 - Mut be available for private persons

Do you know other manufactureers providing such type of combuned/intelligent displays

Thanks in advance

Greatings

MArc





















[mathiasmarkussen]

Hello Marc,

You could go for an ST discovery kit. The STM32U5G9J-DK2, STM32H7S78-DK and STM32N6570-DK have the same 5" display. They are roughly listed in increasing performance order, although the U5G9 supports full hardware acceleration of vector graphics.

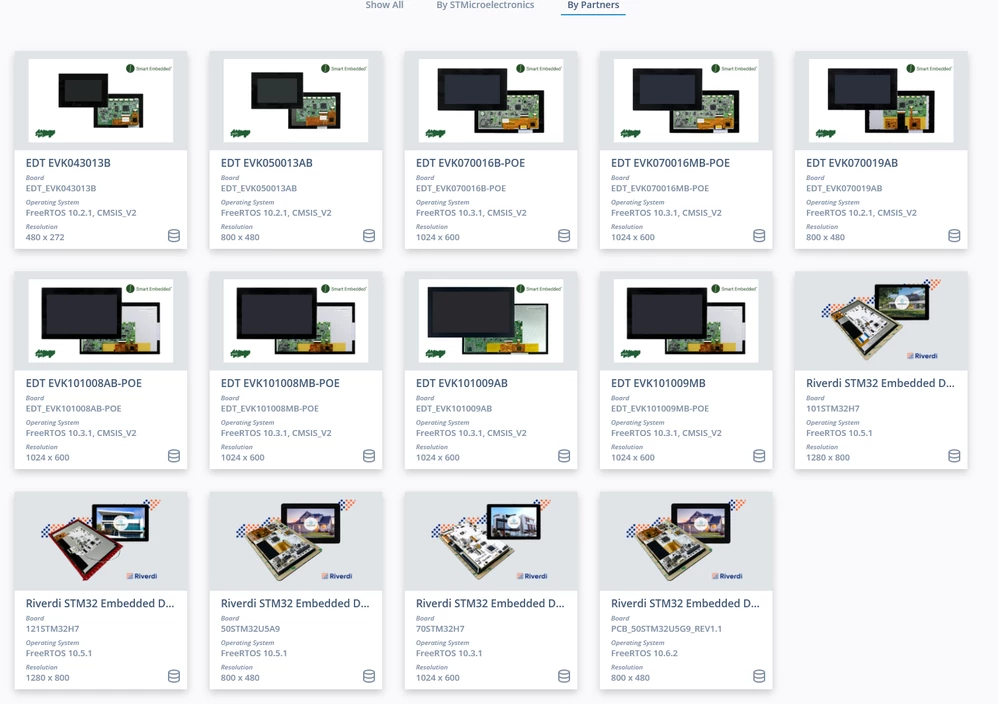

If you are looking for third party displays with out of the box support, there are these partner displays with integrated MCU:

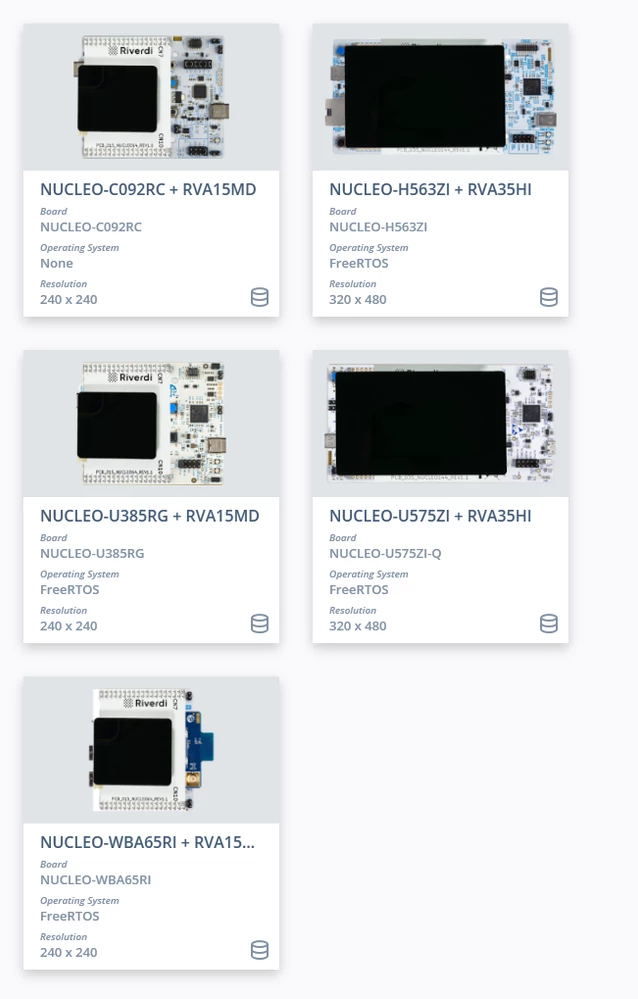

If you want a display and a separate Nucleo board, these options are available, although they are smaller than the requirements you listed:

Finally, there is support for a knob style display from Team Source Display:



There are some other options out there with TouchGFX projects available, but I have no experience with these, either from a hardware or software point of view.
