STM32 Hardfault Error when calling fillBuffer under TouchGFX.

[AEng7]

Hey, I am running into issues with a custom PCB based on STM32H743IIT6.

Using IS42S32400J-6TLI as SDRAM,  with an LCD screen. Using TouchGFX and DMA2D deactivated.

A hard fault is encountered after entering Model:Tick()

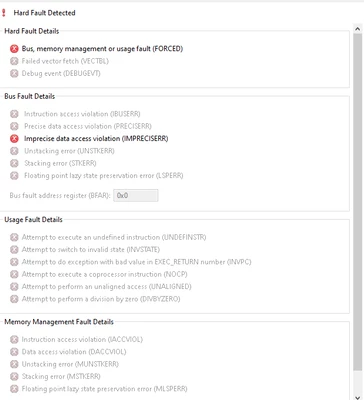

Hard Fault Error Detected at:



Debug stack view:

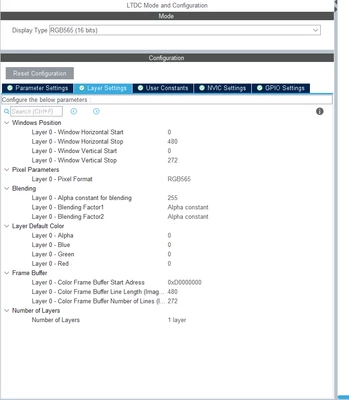

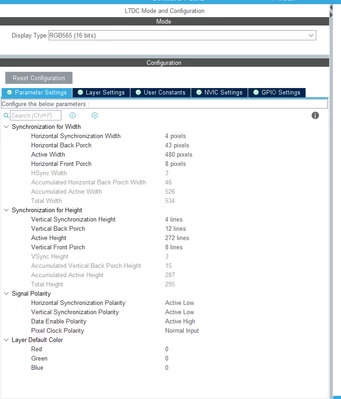

LTDC:

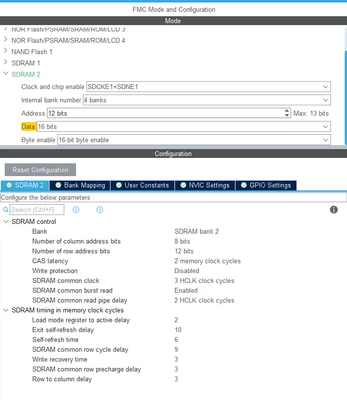

SDRAM - only 16 data bits used:

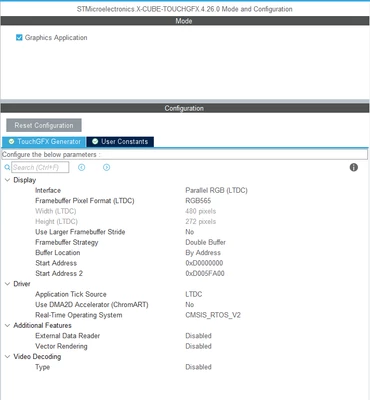

TouchGFX:



MCU:





Any suggestions what could be causing this Hard Fault error?



[AEng7]

Seems to go to



Then BusFault Handler at :





[AEng7]

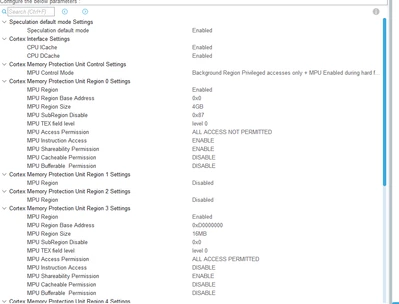

Applying new MCU settings:



I still get the BusFault_Handler error



[AEng7]

This was solved by setting the SDRAM, LTDC, and unlocking the MCU regions appropriately
