STM32F412G-DISCO `FramebufferSection' will not fit in region `RAMFB'

[HAnh]

Hi Everyone.

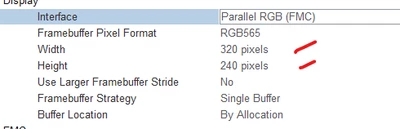

I use STM32F412G-DISCO to custom TFT 320x240 and set up the touchGFX the same.

But when I generate the code it shows me the error "STM32F412G-DISCO.elf section `FramebufferSection' will not fit in region `RAMFB'

I checked in the flash file. the RAMFB is configurated 128K

I don't know how to fix this. Can anyone help me advice in this case?

[MM..1]

Simply 320x240x2 = 150k  then cant fit into 128k

[GaetanGodart]

Hello @HAnh ,



As MM said, your framebuffer is too big for the size of your RAMFB.
The color depth of your pixels is RGB565 so 5+6+5 = 16 bits which is 2 bytes.
So you will need 240 * 320 * 2bytes = 153600 bytes.

You need to either :

• reduce your color depth (not the best)
• reduce your display size (probably not your goal)
• increase your memory, maybe with an external memory



Regards,

[GaetanGodart]

Hello @HAnh ,



Have you been able to move forward on this?



Regards,
