STM32F413 disco board with Touch GFX

[HAnh]

Hi everyone.

I have a board STM32F413 disco. How can I use TouchGFX to display on LCD on this board?

I have found the template in TouchGFX but I didn't see it.

Is there any way? that I can display LCD on the STM32F413 disco, or where I can find an example to sourcode for this.

[Andrew Neil]

---

@HAnh wrote:

I have found the template in TouchGFX but I didn't see it.

---

Pardon? You've found it, but you can't see it??

[mƎALLEm]

Hello,

Unfortunately, there is no TouchGFX Board Setup for STM32F413 disco available on TouchGFX designer.

Only STM32F412 Discovery is available as template.

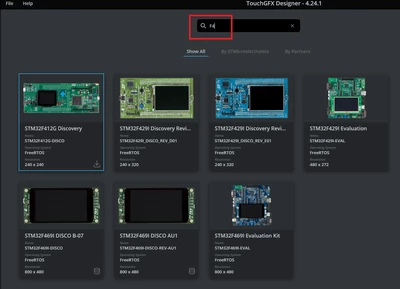

The available TouchGFX designer templates for F4 boards:

See also this thread: https://community.st.com/t5/stm32-mcus-touchgfx-and-gui/touchgfx-on-stm32f413h-disco-board/m-p/207376



[Andrew Neil]

---

---

@mƎALLEm wrote:

Only STM32F413 disco is supported.

See this thread: https://community.st.com/t5/stm32-mcus-touchgfx-and-gui/touchgfx-on-stm32f413h-disco-board/m-p/207376

You mean STM32F413H Disco ?

https://www.st.com/en/evaluation-tools/32f413hdiscovery.html



@HAnh here's a thread on setting up for a custom board:

https://community.st.com/t5/stm32-mcus-touchgfx-and-gui/how-to-create-a-touchgfx-project-for-custom-board/td-p/135426

[mƎALLEm]

---

@Andrew Neil wrote:

---

---

You mean STM32F413H Disco ?

---

Sorry I meant 412G DISCO. I've edited my comment.
