Hi, I'm working on STM32F746G-DISCO.

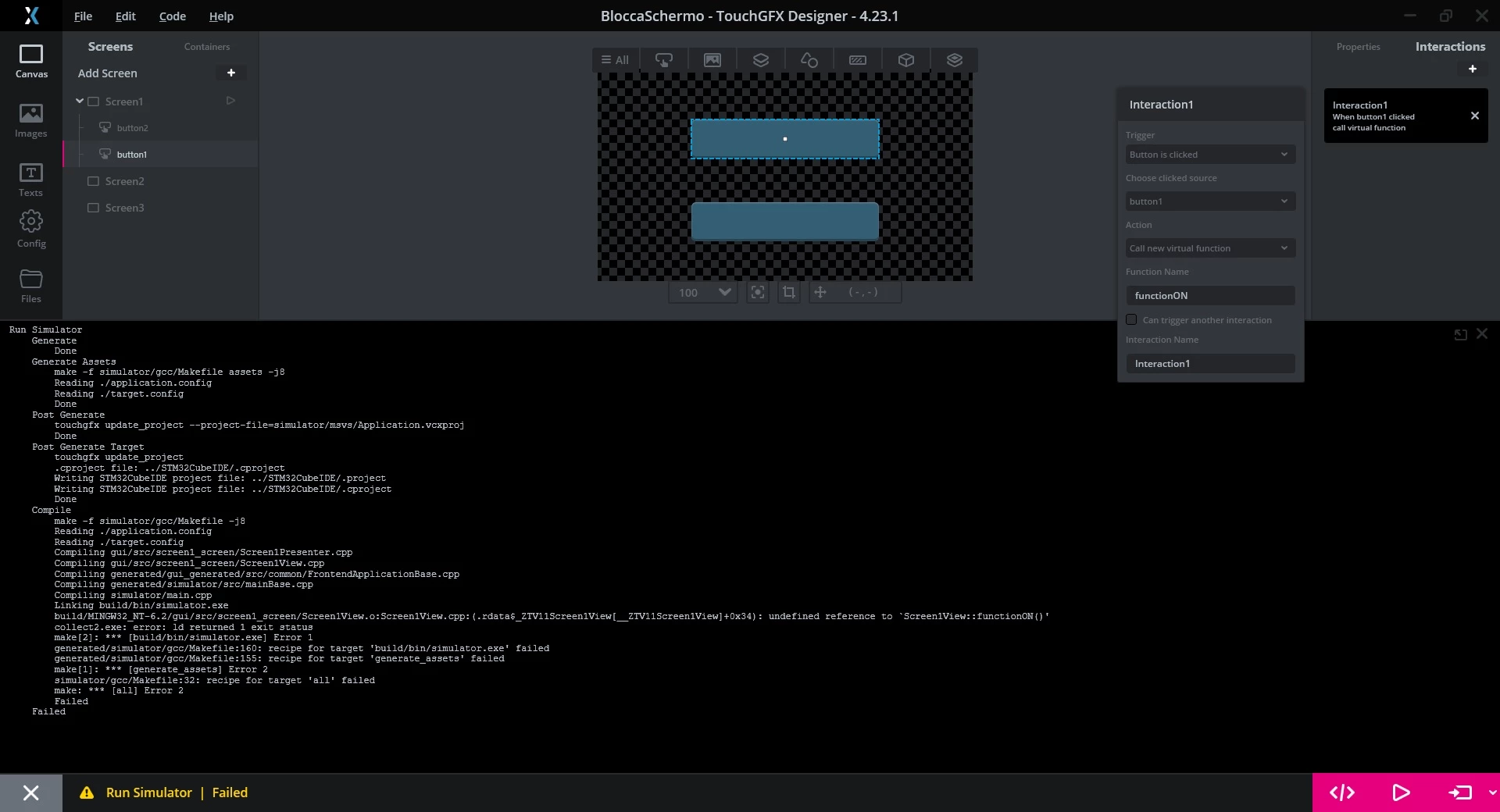

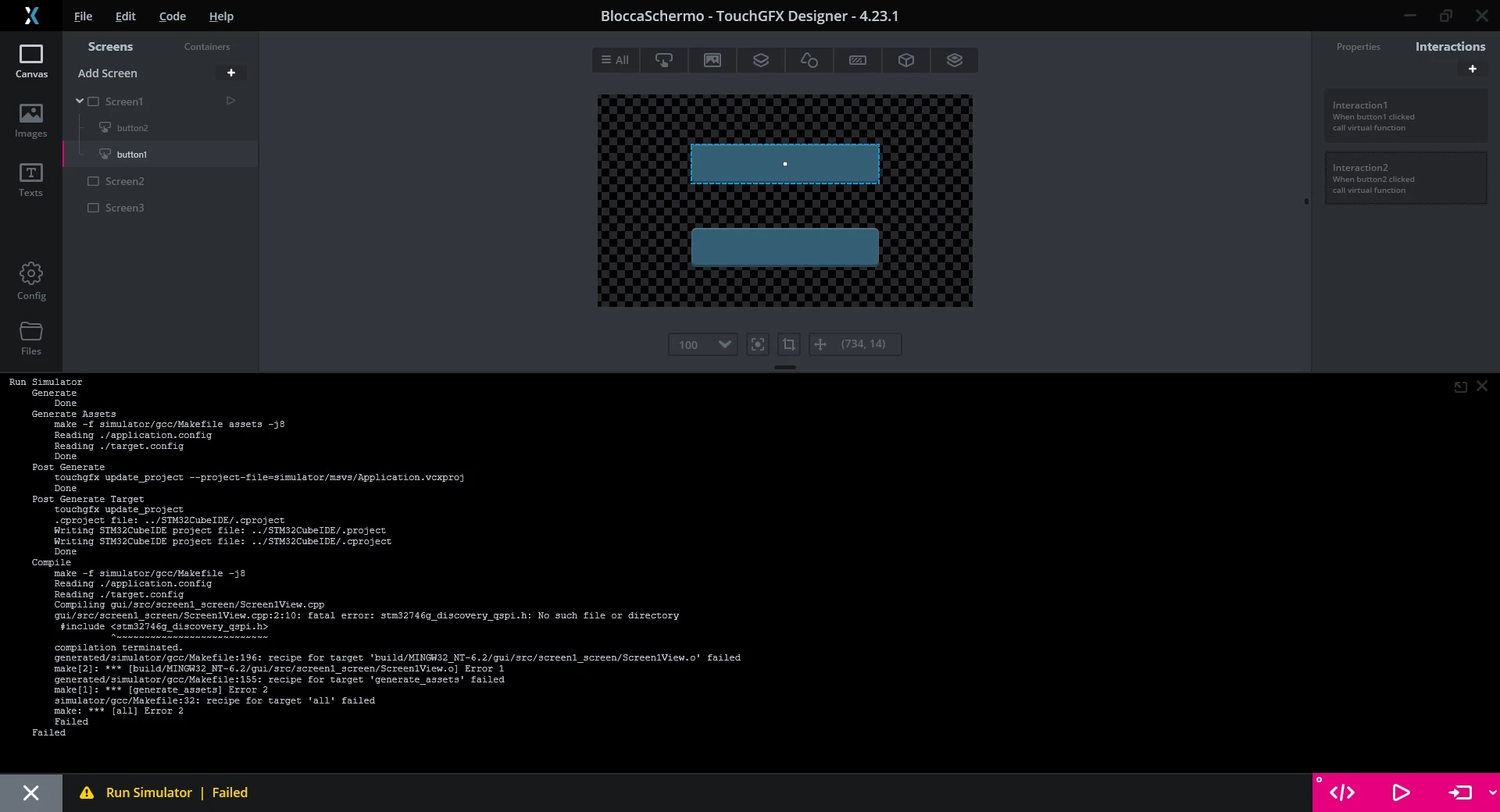

Kindly can someone tell me if it is normal that after making some project screens on TouchGFX and launching the SIMULATOR, everything is ok. I open the project with CubeIde and add some code from the IDE and transfer it to STM32F746G-DISCO it continues to work, if I try to simulate it with the TouchGFX SIMULATOR I can no longer make it work and it gives me errors right in the lines of code I have added. Thank you.

TouchGFX Designer

This topic has been closed for replies.

Best answer by Osman SOYKURT

Hello @StefanoL ,

Yes the normal process is :
1- Create your UI with TouchGFX and generate code (F4)
2- Open the .ioc file with STM32CubeMX and configure your hardware
3- Generate code on STM32CubeMX for the toolchain you want (STM32CubeIDE)
4- Go back to TouchGFX and generate code again (F4)
5- Open your .project file with STM32CubeIDE and compile code.

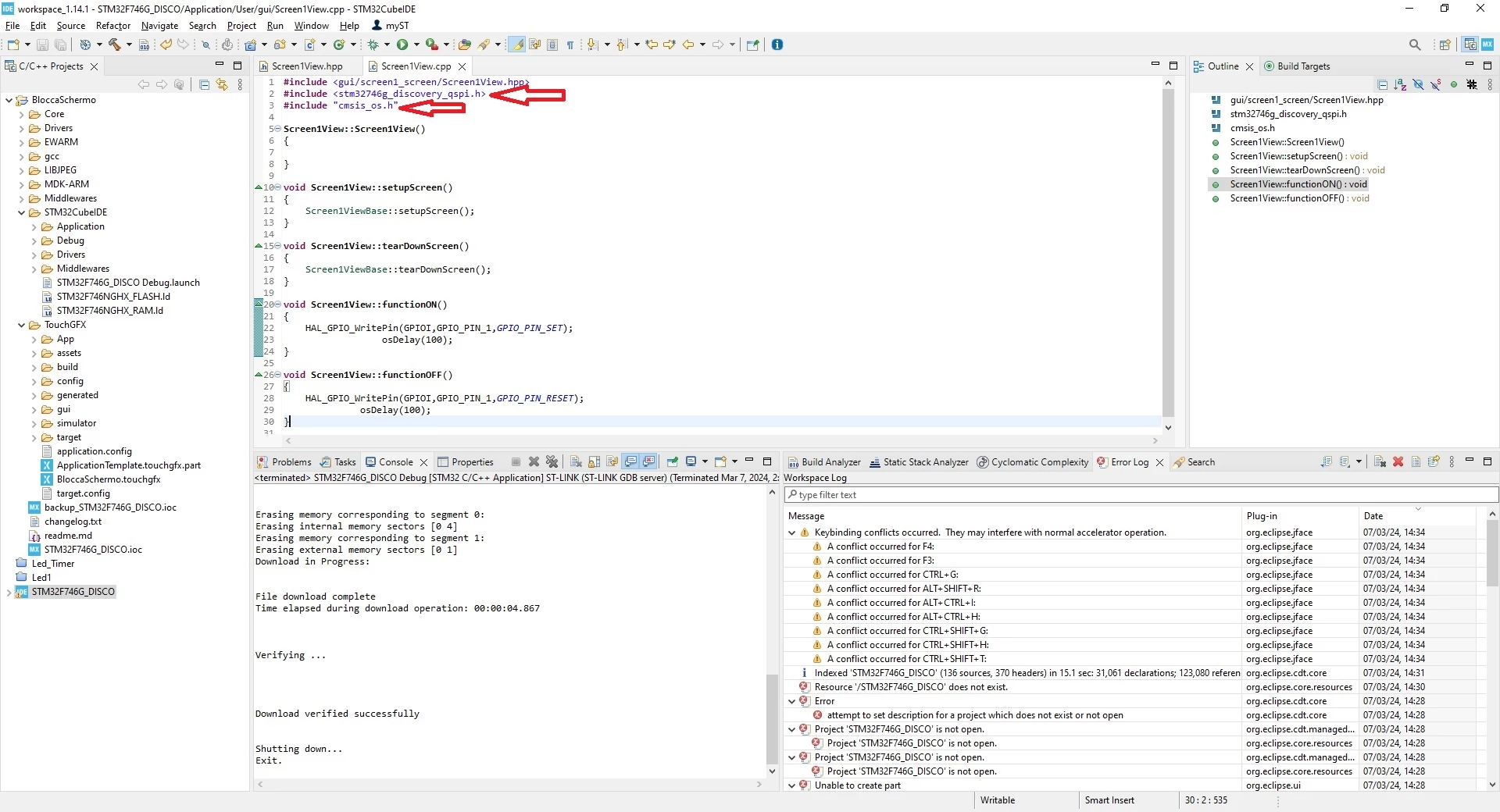

If you use other files from a library you need to include them in the makefiles so of course you need to check the included paths.

I

Imen.D

Technical Moderator

Hello @StefanoL ,

Could you please share more details about the error message you have, the used versions of the tools and the lines of code you have added.

"When your question is answered, please close this topic by clicking ""Accept as Solution"".ThanksImen"

S

StefanoLAuthor

Associate II

The IDE is probably installed incorrectly because it seems that the file for CUBEIDE is not created properly.

mƎALLEm

Technical Moderator

Hello,

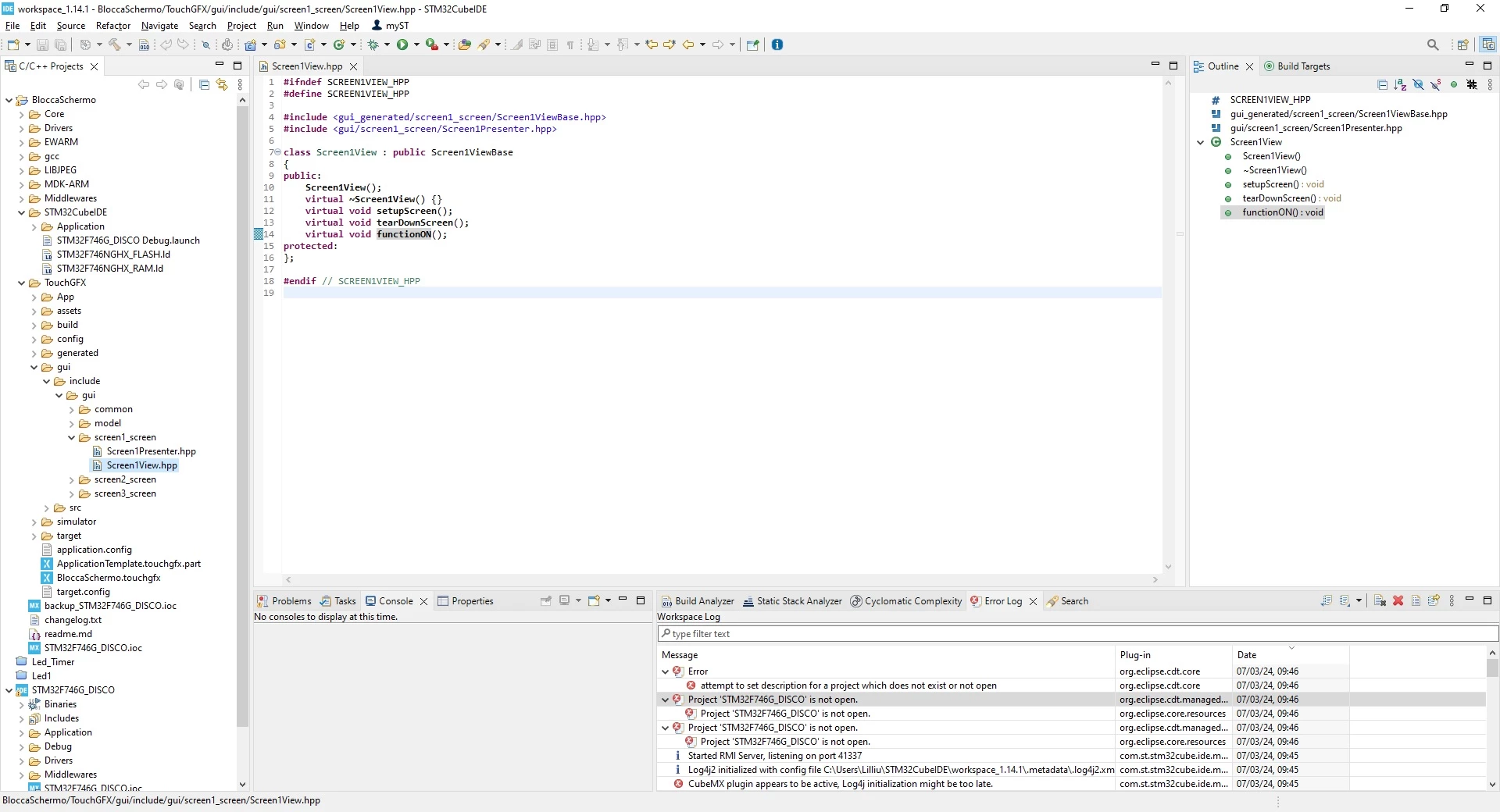

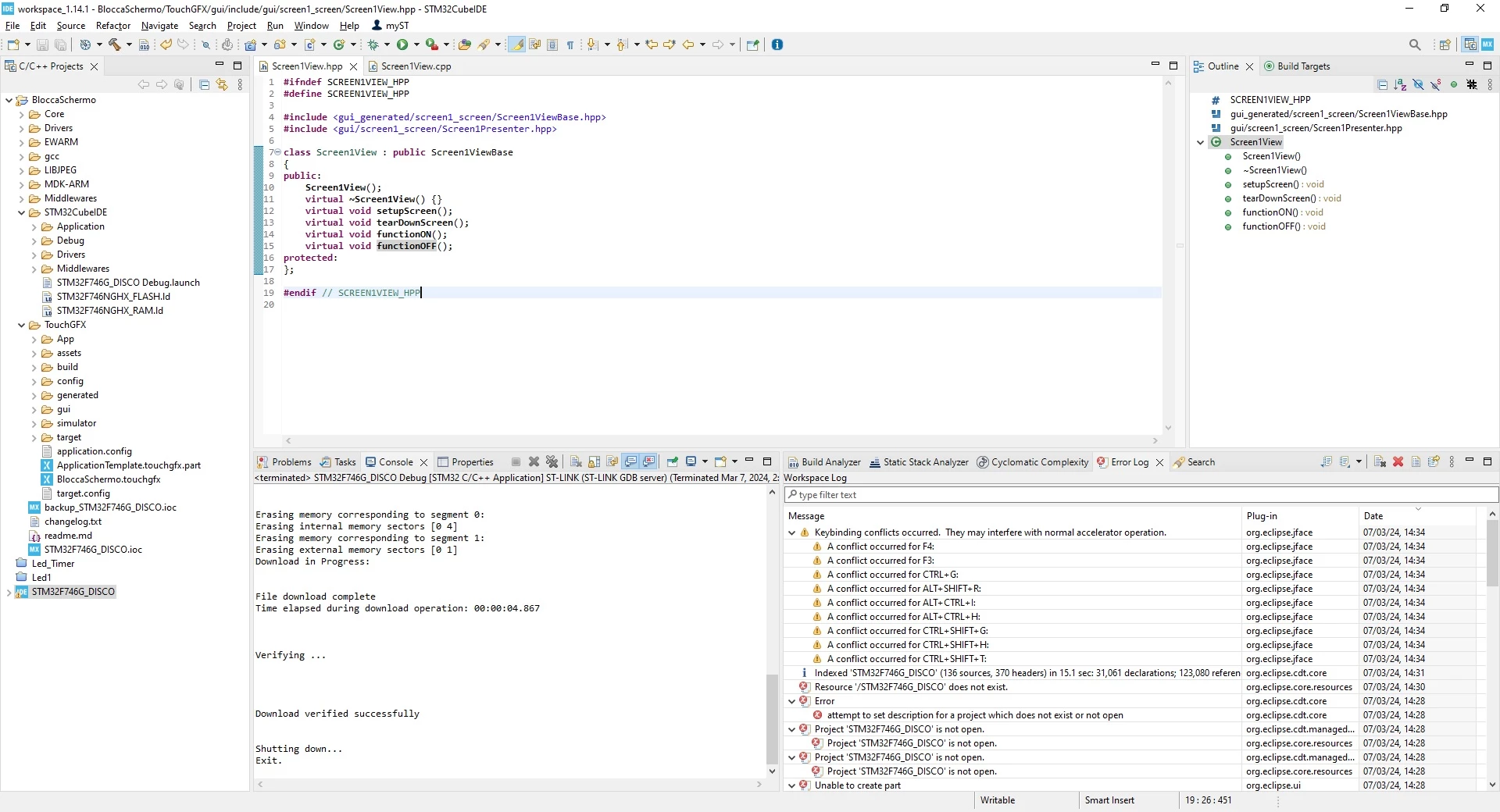

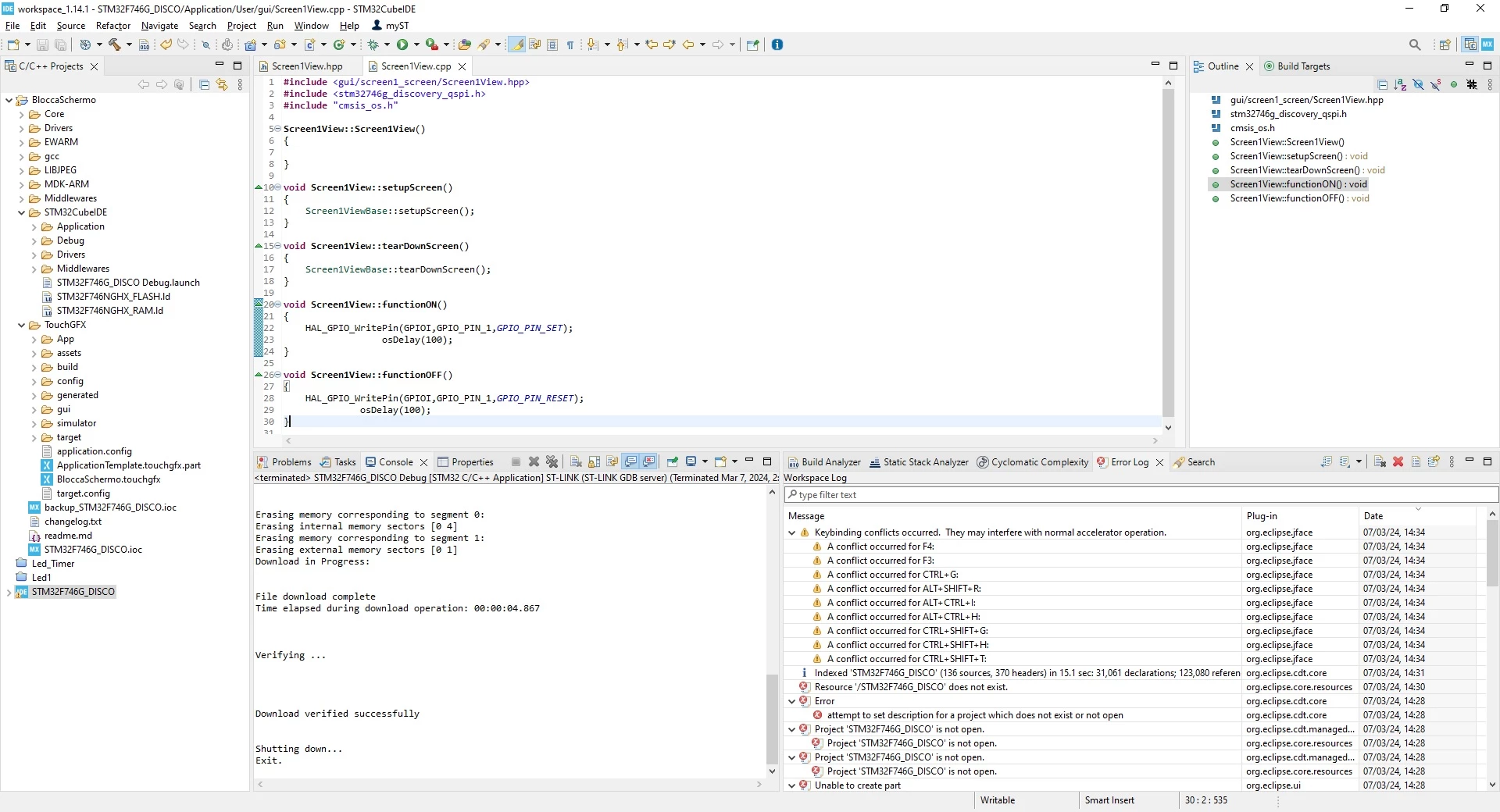

Did you declare functionON() somewhere in Screen1View.cpp?

"To give better visibility on the answered topics, please click on ""Accept as Solution"" on the reply which solved your issue or answered your question."

S

StefanoLAuthor

Associate II

..

mƎALLEm

Technical Moderator

Could you please attach your project?
