Text Area alignment change

[BhavyaSri]

How to change the alignment of textarea from the default style set in touchgfx designer?



In touchgfx designer(Version:4.21.3) I have set to Left alignment. I use this textarea for multiple purposes, for few I need to set to Left alignment and for few I need to set to Right alignment. I tried using ' textArea.setTextAlignment(TEXT_ALIGNMENT_RIGHT);'  but it says set alignment is not a member.



[GaetanGodart]

Hello @BhavyaSri ,



I have not seen a method called "setTextAlignment' in the textArea API.

You could try the method resizeToCurrentTextWithAlignment().
I think you should set the alignment directly from Designer instead of code.



If this comment solves your problem, I invite you to select it as "best answer".



Regards,

[BhavyaSri]

Thanks for your reply!



I cannot use from designer as I use Same textarea for multiple applications. Some of them need it to be right justified and some of them need it to be Left Justified. I have default set it as Left justified in designer, however for some cases I want to change that to Right justified via code.



Regards,

Bhavya

[ferro]

Hi @BhavyaSri

I use TextAreaWithOneWildcard





// T_ALIGN_LEFT, T_ALIGN_CENTER, T_ALIGN_RIGHT Ids text is "<>" with different alignment
// T_TEXT_MULTIALIGN holds the text to dispaly and alignment does not matter

TextAreaWithOneWildcard::setTypedText ( touchgfx::TypedText ( T_ALIGN_CENTER ) );
TextAreaWithOneWildcard::setWildcard ( touchgfx::TypedText ( T_TEXT_MULTIALIGN ).getText () );
TextAreaWithOneWildcard::invalidate ();





Example:



[ferro]

@BhavyaSri

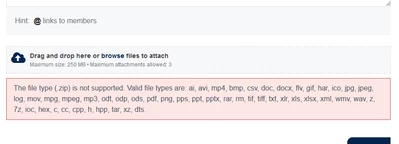

Attached is Gfx project with extension .pdf - rename it to .zip. Forum does not allow me to attach file with .zip. Strange as I see .zip files shared here.



[ferro]

Hi @GaetanGodart

Do you know why my .zip file attachments are refused by forum ? Thanks.





[GaetanGodart]

Hello @ferro ,



The ".zip" extension is not supported. Most people use the ".7z" extension to share their files.



Regards,

[BhavyaSri]

Hi @ferro ,

I'm not able to see .pdf also. I'm able to see only image.

Also, just to add more details to my query:

1. I used textArea1 text field and enabled it as WildCard Buffer is designer.

2. I use 'Unicode::strncpy(textArea1Buffer,textfieldval, TEXTAREA1_SIZE);' in code and this 'textfieldval' will be changed based on microcontroller output.

Please let me know if additional details are required.

[ferro]

Here

[BhavyaSri]

Thanks for the solution @ferro and Thanks for the suggestions @GaetanGodart  . I have found the solution for left, right alignments(I need only left, right alignment).

Solution:

1. I have declared in Texts section as 'T_ALIGN_LEFT',' T_ALIGN_RIGHT' Ids text is "<>" with different alignment in designer.

2. Where ever, I wanted to set to Right Alignment, I'm writing code as

• textArea1.setTypedText(touchgfx::TypedText (T_ALIGN_RIGHT));
• Unicode::strncpy(textArea1Buffer,textfieldval,TEXTAREA1_SIZE);
• textArea1.setWildcard(textArea1Buffer);
• textArea1.invalidate();

3. And using this code to set it back to Left alignment whereever required:

• textArea1.setTypedText(touchgfx::TypedText (T_ALIGN_LEFT));
• textArea1.invalidate();

[NGune.1]

Hi,

To be a reference for the others, can you please be more clear about how it is resolved?

I define my text areas in the code (since, in the beginning it is unknown that how many text areas will be needed).

In the .hpp I have:

 touchgfx::TextAreaWithOneWildcard Line[100][10];

 in the View.cpp, I have something like:

Line[i][j].setPosition(50+(j)*90, (i*24+5), 90, 24);
Line[i][j].setColor(touchgfx::Color::getColorFromRGB(255, 255, 255));
Line[i][j].setLinespacing(0);

snprintf(swap, 10, "%lu",aTemp[i][j]);
Unicode::strncpy(dst, swap, 10);
Unicode::snprintf(TextBuffer[i][j], 10, dst);

Line[i][j].setWildcard(TextBuffer[i][j]);
Line[i][j].setTypedText(touchgfx::TypedText(T_RESOURCEID1));
Line[i][j].setTypedText( touchgfx::TypedText(T_ALIGN_CENTER));
EditorContainer.add(Line[i][j]);
Line[i][j].invalidate();



It doesn't compile and gives error for the line that has this T_ALIGN_CENTER. it says:

'T_ALIGN_CENTER' was not declared in this scope

What am I doing wrong?

Thanks

[ferro]

Hi,

1. missing

#include <texts/TextKeysAndLanguages.hpp>

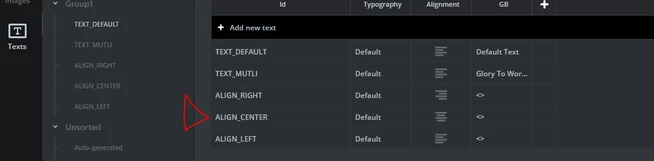

2. or ALIGN_CENTER is missing in Text view:



If not then past here compiler error screenshot please

[NGune.1]

Hi Ferro,

Number 2 was missing.

I added a new group, "ResourceID2" and made it center_aligned in the Designer. And then i my code wrote:

Line[i][j].setTypedText(touchgfx::TypedText(T_RESOURCEID2));

Everything with this ResourceId2 is now centered.

Thank you.
