Text with "Ññáéíóú" in touchgfx

[Maximiliano]

Hello to all ,

I am wanting to display a text that changes over time what it says, this works fine but for some reason the letters with tilde or the Ñ does not appear.

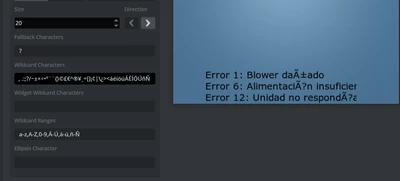

I put a picture of how I set the typography and how it is shown badly written in the simulation.

in “wildcard characters” I added áéíóúÁÉÍÓÚñÑ and in “wildcard ragne” I put ,Á-Ú,á-ú,ñ-Ñ but it did not work.

why does this problem occur?





Error 1: Blower dañado

Error 6: Alimentación insuficiente (it was cut off by the scrollablecontainer, it doesn't matter)

Error 12: Unidad no respondía





[MM..1]

Maybe this helps you Solved: "Tildes" don't appear in wildcard texts. - STMicroelectronics Community

understand Unicode UTF mix. And good practice is show version in your question...

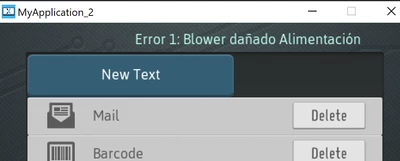

Plus i test your in static and wildcard from designer , then it works ok . What is your code where fail???



[Maximiliano]

Hello @MM..1  thank you for replying.

the fault is in the buffered text.
I also tried putting directly a ñ or a letter with tilde and it fails too.

I don't know if I understood correctly, but is your capture of a text without buffer?





 Unicode::snprintf(texto_errorBuffer, TEXTO_ERROR_SIZE, "%s", "Ñá");
 texto_error.invalidate();





Un ejemplo del uso que le estoy dando es:



const char* errors[] = {
 "Error 1: Blower dañado",
 "Error 2: Ventilador no gira",
 "Error 3: Sobrecalentamiento detectado",
 "Error 4: Cortocircuito en el sistema",
 "Error 5: Falla en el sensor de temperatura",
 "Error 6: Alimentación insuficiente",
 "Error 7: Comunicación interrumpida",
 "Error 8: Batería descargada",
 "Error 9: Temperatura fuera de rango",
 "Error 10: Fallo en la conexión de red",
 "Error 11: Memoria insuficiente",
 "Error 12: Unidad no respondía"
	};

	// Cambiar el tamaño del arreglo a uno adecuado para el mensaje de error
	char errorBuffer[512];

	// Buffer de tipo Unicode::UnicodeChar para la cadena final
	Unicode::UnicodeChar finalErrorBuffer[512];


 // Inicializar el buffer de errores como vacío
 errorBuffer[0] = '\0';

	int error_code1 = 1; // Error 1
	int error_code2 = 6; // Error 6
	int error_code3 = 12; // Error 12


 // Copiar el primer error
 strncpy(errorBuffer, errors[error_code1 - 1], sizeof(errorBuffer) - 1);
 strncat(errorBuffer, "\n", sizeof(errorBuffer) - strlen(errorBuffer) - 1); // Añadir salto de línea

 // Copiar el segundo error
 strncat(errorBuffer, errors[error_code2 - 1], sizeof(errorBuffer) - strlen(errorBuffer) - 1);
 strncat(errorBuffer, "\n", sizeof(errorBuffer) - strlen(errorBuffer) - 1);

 // Copiar el tercer error
 strncat(errorBuffer, errors[error_code3 - 1], sizeof(errorBuffer) - strlen(errorBuffer) - 1);
 strncat(errorBuffer, "\n", sizeof(errorBuffer) - strlen(errorBuffer) - 1);



 // Convertir el contenido de errorBuffer (char) a finalErrorBuffer (Unicode::UnicodeChar)
 Unicode::strncpy(finalErrorBuffer, errorBuffer, sizeof(finalErrorBuffer) / sizeof(Unicode::UnicodeChar));


 Unicode::snprintf(texto_errorBuffer, TEXTO_ERROR_SIZE, "%s", finalErrorBuffer);
 texto_error.invalidate();



[MM..1]

Strings in your source files is in UTF8 , then cant be used directly... why you dont read solution?
