TouchGFX 4.24.0 Custom Board Failed Generate Code

[ButterDeco]

Generating Code in Post Generate Target step failed,

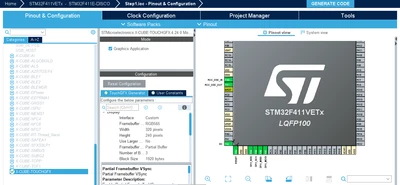

I'm making custom board project using STM34F411E-DISCO board and LCD with SPI 1 connectivity, after configure board in STM32CubeMX ver 6.12 --> Generate Code --> add TouchGFX_DataTransfer.c and .h library --> open the project in TouchGFX, I put box in my screen, and tried to generate code to test configuration and got failed massage when generate the code. here the failed massage:

Generate Code
 Generate
 Done
 Generate Assets
 make -f simulator/gcc/Makefile assets -j8
 Reading ./application.config
 Reading ./target.config
 Done
 Post Generate
 touchgfx update_project --project-file=simulator/msvs/Application.vcxproj
 Done
 Post Generate Target
 touchgfx update_project
 D:/TouchGFX/4.24.0/env/MinGW/msys/1.0/Ruby30-x64/lib/ruby/gems/3.0.0/gems/touchgfx-cli-4.24.0/lib/touchgfx/generators/keil_project_updater.rb:313:in `check_compiler_options': undefined method `text' for nil:NilClass (NoMethodError)
 	from D:/TouchGFX/4.24.0/env/MinGW/msys/1.0/Ruby30-x64/lib/ruby/gems/3.0.0/gems/touchgfx-cli-4.24.0/lib/touchgfx/generators/keil_project_updater.rb:35:in `run'
 	from D:/TouchGFX/4.24.0/env/MinGW/msys/1.0/Ruby30-x64/lib/ruby/gems/3.0.0/gems/touchgfx-cli-4.24.0/lib/touchgfx/generators/cubemx_project_selector.rb:106:in `run'
 	from D:/TouchGFX/4.24.0/env/MinGW/msys/1.0/Ruby30-x64/lib/ruby/gems/3.0.0/gems/touchgfx-cli-4.24.0/lib/touchgfx/generators/update_project.rb:115:in `run'
 	from D:/TouchGFX/4.24.0/env/MinGW/msys/1.0/Ruby30-x64/lib/ruby/gems/3.0.0/gems/touchgfx-cli-4.24.0/lib/touchgfx/cli/inside.rb:48:in `update_project'
 	from D:/TouchGFX/4.24.0/env/MinGW/msys/1.0/Ruby30-x64/lib/ruby/gems/3.0.0/gems/thor-1.1.0/lib/thor/command.rb:27:in `run'
 	from D:/TouchGFX/4.24.0/env/MinGW/msys/1.0/Ruby30-x64/lib/ruby/gems/3.0.0/gems/thor-1.1.0/lib/thor/invocation.rb:127:in `invoke_command'
 	from D:/TouchGFX/4.24.0/env/MinGW/msys/1.0/Ruby30-x64/lib/ruby/gems/3.0.0/gems/thor-1.1.0/lib/thor.rb:392:in `dispatch'
 	from D:/TouchGFX/4.24.0/env/MinGW/msys/1.0/Ruby30-x64/lib/ruby/gems/3.0.0/gems/thor-1.1.0/lib/thor/base.rb:485:in `start'
 	from D:/TouchGFX/4.24.0/env/MinGW/msys/1.0/Ruby30-x64/lib/ruby/gems/3.0.0/gems/touchgfx-cli-4.24.0/lib/touchgfx.rb:16:in `<module:CLI>'
 	from D:/TouchGFX/4.24.0/env/MinGW/msys/1.0/Ruby30-x64/lib/ruby/gems/3.0.0/gems/touchgfx-cli-4.24.0/lib/touchgfx.rb:9:in `<module:TouchGFX>'
 	from D:/TouchGFX/4.24.0/env/MinGW/msys/1.0/Ruby30-x64/lib/ruby/gems/3.0.0/gems/touchgfx-cli-4.24.0/lib/touchgfx.rb:8:in `<top (required)>'
 	from <internal:D:/TouchGFX/4.24.0/env/MinGW/msys/1.0/Ruby30-x64/lib/ruby/3.0.0/rubygems/core_ext/kernel_require.rb>:85:in `require'
 	from <internal:D:/TouchGFX/4.24.0/env/MinGW/msys/1.0/Ruby30-x64/lib/ruby/3.0.0/rubygems/core_ext/kernel_require.rb>:85:in `require'
 	from D:/TouchGFX/4.24.0/env/MinGW/msys/1.0/Ruby30-x64/lib/ruby/gems/3.0.0/gems/touchgfx-cli-4.24.0/bin/touchgfx:6:in `<top (required)>'
 	from D:/TouchGFX/4.24.0/env/MinGW/msys/1.0/Ruby30-x64/bin/touchgfx:23:in `load'
 	from D:/TouchGFX/4.24.0/env/MinGW/msys/1.0/Ruby30-x64/bin/touchgfx:23:in `<main>'
 Failed
 Failed
​

The project I copied from GitHub Work just fine, here the link:
https://github.com/controllerstech/STM32/tree/master/TOUCH%20GFX/ILI9341%20SPI


I tried to configure TouchGFX + Keil V5 with compiler ARMCLANG v6.22.



[Mohammad MORADI ESFAHANIASL]

Hello @ButterDeco ,

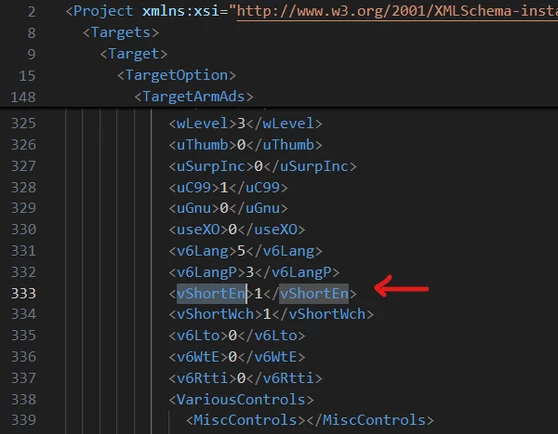

It seems like the structure of your Keil project is causing the issue. Would you please open the .uvprojx in an editor and ensure that vShortEn is set to 1 under Project->Targets->TargetOption->TargetArmAds->Cads->vShortEn?

If it doesn't help, please share your project.

Best regards,

[ButterDeco]

Hi @Mohammad MORADI ESFAHANIASL,

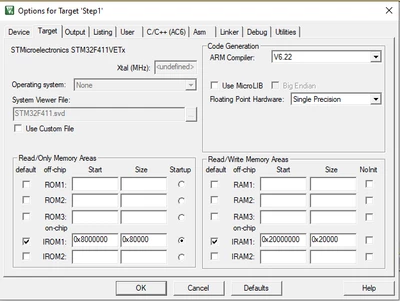

Thank you for responding my question! I've search for vShortEn but I can't seem to find it. following your instruction I should open my project in keil uVision, I tried open options for target bud don't find Target Arm Ads. Am I doing this right?



[Mohammad MORADI ESFAHANIASL]

No, I meant opening your Keil project in a code editor :grinning_face_with_sweat:

[ButterDeco]

Hi @Mohammad MORADI ESFAHANIASL,

Thank you! now I can successfully generated code in my Touch FX, much appreciate! now I run to a problem when build code in keil v5, the GitHub program above can run just fine without this kind of error, is it because my keil's project structure again? I haven't add any code after generate code from touchGFX. my hypotheses the problem from linker that generated from touch GFX.
