TouchGFX framebuffer location for STM32H563

[PFlor.2]

Is there a recommended RAM address for placing the framebuffer on the STM32H563?  I just picked out 0x20040000 but wondered if I should just put it at the beginning address (0x20000000), wasn't sure what is recommended.

[MM..1]

Why you ask, this is based on your app requirments and



[GaetanGodart]

Hello @PFlor.2 ,

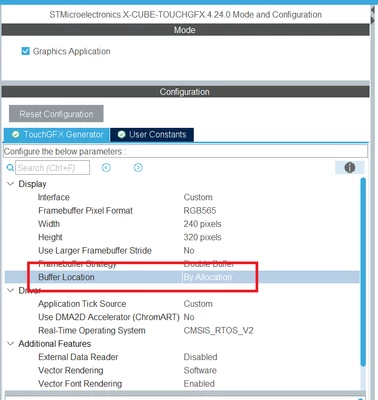

It is recommended to keep the framebuffer location as "by allocation" to let TouchGFX decide where to put the framebuffer :

You can have a look at our TBS to see how we set it up.



Regards,

[PFlor.2]

Thanks for the tip but I started that way and it appears that Flash memory is taken with this approach, by address does not utilize the flash space like by allocation does.  Can you advise on this?

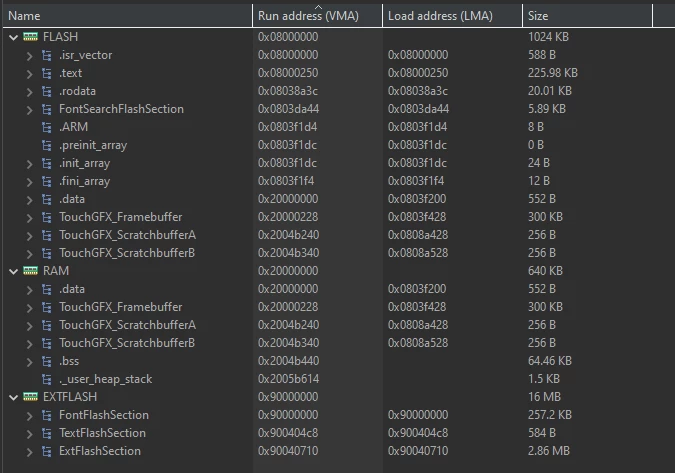

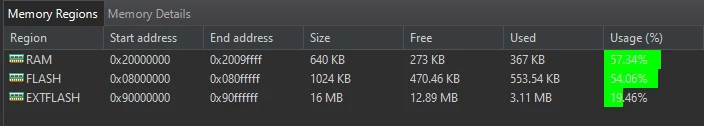

By Allocation:

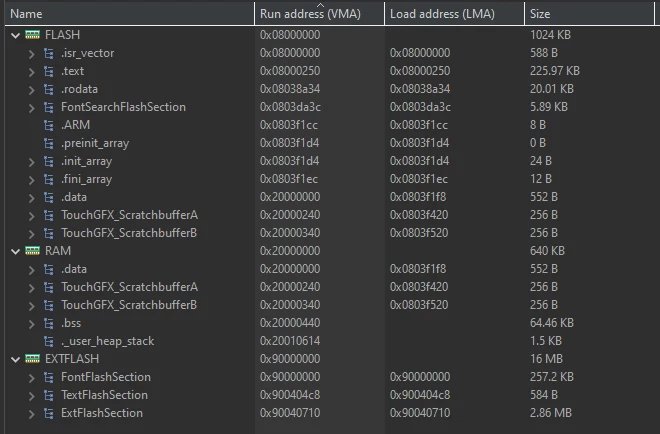

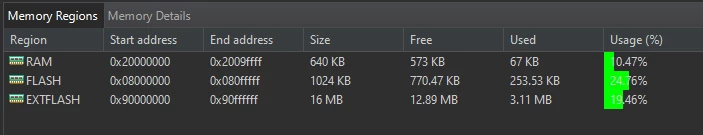

By Address:



[MM..1]

If you choice by address, then linker script require reservations for this, for example

RAM  0x20000000 256k

RAMFB 0x20040000 ...

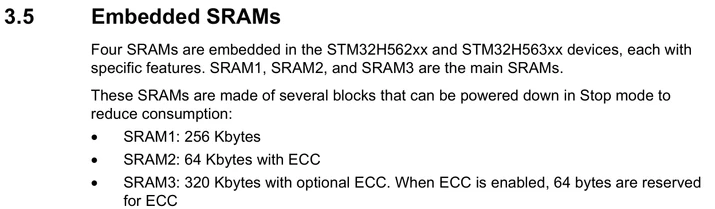

but as i show you better is use maybe RAM3

And by allocation result to init in flash when you dont mark it as noinit... result same size in flash and ram.

[GaetanGodart]

Hello @PFlor.2 ,



This code (talking about the NOLOAD)

prevents the framebuffer section from being loaded into the ram at startup.

Is it what you were asking?



Regards,

[MM..1]

Are you sure Gaetan , that ALIGN(0x4) is ok for LTDC FIFO ?

[PFlor.2]

I'm using a SPI display so not using LTDC if that matters.
