TouchGFX Template for RVA35HI + H563ZI Template for REV1.0 of display

[CharanVis]

Hi there,

I was trying to use the TouchGFX Designer Template for the H563ZI dev board with the RVA35HI display. However I noticed that I have REV1.0 of the display whereas the template that is generated is for REV1.1.

I tried configuring the pin connections through the .ioc files by referring to respective version datasheet but so far no luck. It would of great help if there was any way in which I can be given the template for the display version that I've got.

Any help would be really appreciated.

Cheers

[GaetanGodart]

Hello @CharanVis ,

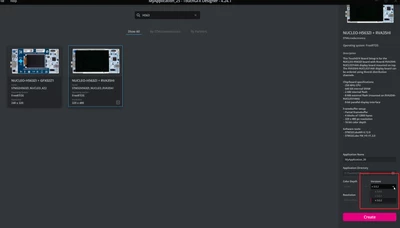

What happens if you try to use an older version of the provided TBS :



Regards,

[CharanVis]

Hello @GaetanGodart,

I did try using v3.0.0, still the same issue. The loader that is generated is for REV1.1 and the ioc configurations also seem to match that of REV1.1 when cross checking with the datasheet...

[CharanVis]

@GaetanGodart and @Osman SOYKURT, I was wondering if I would somehow be able to access the template for REV1.0 of the display. Our project has been delayed by quite an amount due to a lot of complications.

We initially had the U575ZI-Q development board for which there was no template. As a result we got the H563ZI development board. Tried getting the demo code from TouchGFX Designer to work but failed to do so. We also tried using the U575ZIQ + RVA35HI template once it was out and same results as before :(

Only after some amount of debugging, we found out that we have REV1.0 of the display whereas the template (all versions) are for REV1.1 of the display. Any help regarding this would be really appreciated. The display is a really important part of our project and we can't afford further delays either. Looking forward to hearing back from you.

Note: Here's a detailed thread made on the problems that we faced ( We also tried the same steps with the H563ZI board)

https://community.st.com/t5/stm32-mcus-touchgfx-and-gui/u575zi-q-dev-board-rva35hi-display-touchgfx-error-failed-to/m-p/749198

Please let me know if there's further information that might be needed and please do consider this to be of priority. Cheers

[mathiasmarkussen]

I can see you have had issues with the external loader, which you seem to have (partially?) solved with a loader you found on Riverdis github repository. Have you been able to confirm that the flash actually contains what you expect after flashing with that loader?

Have you tried to create a test project in TouchGFX (for RVA35 1.1) with all the assets in internal flash?

This would eliminate the external flash as an error source for both writing and reading. I believe confirming that you can get an image on the display should be our highest priority at this point.

[CharanVis]

Hi @mathiasmarkussen @GaetanGodart , thank you for your quick responses :)

Just a couple clarifications:

1) We have ordered another display from Mouser Electronics recently. But there's still the chance that it might be REV1.0 of the display rather than REV1.1. So until then, we are going to have a go at this

2) I went through the datasheet for the RVA35HI display (the initial release vs the latest updates) and found a couple changes made to the PCB. A number of the pin connections of the connectors (CN7, CN8, CN9, CN10) have been changed between the two versions. These are the datasheets I was referring to:

https://nz.mouser.com/datasheet/2/1021/DS_RVA35HI_NUCLEO144A_Rev_1_0-3473845.pdf
https://download.riverdi.com/RVA35HI-NUCLEO144A/DS_RVA35HI-NUCLEO144A_Rev.1.2.pdf

3) Using the external loader from Riverdi's GitHub repository, I successfully flashed the external memory segments. However, I still need to confirm if the flash contains the expected data. It's worth noting that due to differences in pin configurations between the two versions, the .ioc pin configuration in the TBS doesn't align with the expected connections for the REV1.0 display. As a result, there’s a significant chance that the flashing may not have been accurate.

4) The data bus configurations for REV1.0 and REV1.1 of the display are different along with some other signals. In REV1.0, the data bus pins are arranged differently compared to REV1.1. We’re currently trying to update the .ioc pin settings to match REV1.0, but the differences in how the data bus is configured are causing some challenges.


Will keep you all updated as I progress. So until then, can we have this post open for discussion still?

Thank you once again for your help :) Really appreciate it

[GaetanGodart]

Hello @CharanVis ,



Yes, we can keep on exchanging about the issue on this thread! :smiling_face_with_smiling_eyes:



Regards,

[CharanVis]

Hello @GaetanGodart @mathiasmarkussen

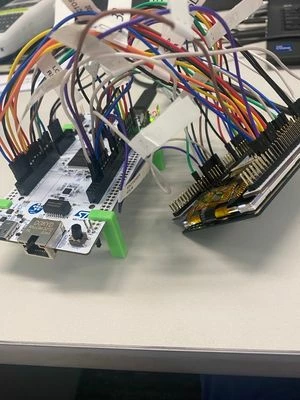

Behold, our creation:

How we are approaching this:

1) We decided to not change the TBS for the RVA35HI + H563ZI, rather adapt the connections off REV1.0 to match that of the expected connections for REV1.1 of the display.

2) This involved spotting the differences between the mappings of the respective versions and using female-male jumper cable connections from the display to the dev board. PS: Have attached the table we formulated for the above

3) Some key points to note is that, in the TBS generated, we could see up-to 8 Data Buses in total (ordered from DB0-DB7), whereas in the pin connections for REV1.0 of the display, there were more than 8 Data Buses attached to the connectors (CN7-CN12). What we decided to do was to simply ignore all the Data Buses after DB7 since .ioc file for the TBS expected only upto DB7. If what I have said so far is not clear, please feel free to ask for clarification :)

Here's the link to the datasheets for your reference:
REV1.0
REV1.1

4) Some good news: We were able to flash the target (both internal and external) through TouchGFX Designer without having to modify the TBS itself. Here's the console output from TouchGFX Designer:

 Flash
 make -f ../gcc/Makefile flash
 Reading TouchGFX/application.config
 Reading TouchGFX/target.config
 Linking TouchGFX/build/bin/target.elf
 Producing additional output formats...
 target.hex - Combined internal+external hex
 intflash.elf - Internal flash, elf debug
 intflash.hex - Internal flash, hex
 -------------------------------------------------------------------
 STM32CubeProgrammer v2.18.0
 -------------------------------------------------------------------

 ST-LINK SN : 003D00223433511037363934
 ST-LINK FW : V3J15M7
 Board : NUCLEO-H563ZI
 Voltage : 3.30V
 SWD freq : 8000 KHz
 Connect mode: Normal
 Reset mode : Software reset
 Device ID : 0x484
 Revision ID : Rev X
 Device name : STM32H56x/573
 Flash size : 2 MBytes
 Device type : MCU
 Device CPU : Cortex-M33
 BL Version : 0xE4
 SFSP Version: v2.5.0
 Debug in Low Power mode enabled

 Opening and parsing file: target.hex


 Memory Programming ...
 File : target.hex
 Size : 4.90 MB
 Address : 0x08000000


 Erasing memory corresponding to segment 0:
 Erasing internal memory sectors [0 34]
 Erasing memory corresponding to segment 1:
 Erasing external memory sectors [0 1185]
 Download in Progress:
 ±±±±±±±±±±±±±±±±±±±±±±±±±±±±±±±±±±±±±±±±±±±±±±±±±± 0%
 Û 2%Û 4%Û 6%Û 8%Û 10%Û 12%Û 14%Û 16%Û 18%Û 20%Û 22%Û 24%Û 26%Û 28%Û 30%Û 32%Û 34%Û 36%Û 38%Û 40%Û 42%Û 44%Û 46%Û 48%Û 50%Û 52%Û 54%Û 56%Û 58%Û 60%Û 62%Û 64%Û 66%Û 68%Û 70%Û 72%Û 74%Û 76%Û 78%Û 80%Û 82%Û 84%Û 86%Û 88%Û 90%Û 92%Û 94%Û 96%Û 98%Û 100%

 File download complete
 Time elapsed during download operation: 00:01:18.537

 Hard reset is performed
 Done
 Done



5) Unfortunately, we are unable to see the output on the LCD itself, it is just blank :(


Would you have any thoughts/suggestions or be able to point out where I may have gone wrong or have not considered certain things? Would really appreciate it :)

Thanks again!

[CharanVis]

Thank you so much for your help @mathiasmarkussen @GaetanGodart

Got the V1.1 and it works. Saved me all the effort :)

Cheers,

Charan
