touchgfx with STM32h750vb

[Prajyot1]

i want to use touchgfx make UI's for board STM32H750VB with display 2.8inch 240*320 ST7789 driver.

> In touchgfx designer i have choose STM32H750 DK  for my board ? is there any another board similar to h750vb or this is one correct?

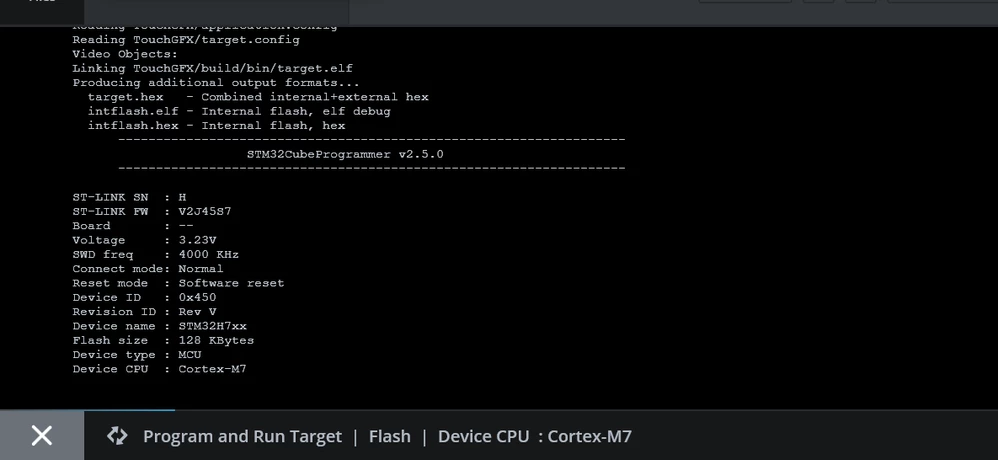

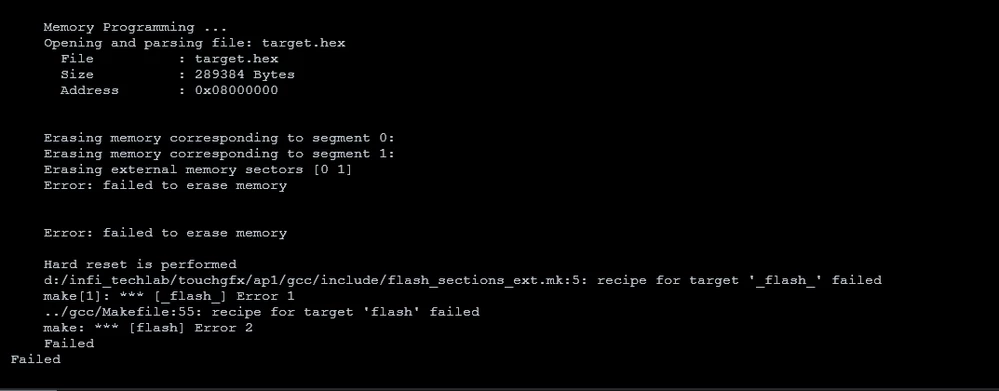

> I created the UI , when i directly try to program and run target it get stuck on programmer part and then fails























[Andrew Neil]

---

@Prajyot1 wrote:

 board STM32H750VB

---

That's not a board - that's just a chip.

Do you have an actual board - ie, an assembly including the chip, PCB, and other components?

If yes, you need to give details before anyone can say what may or may not be "similar" to it.

See: How to write your question to maximize your chances to find a solution.

---

[Prajyot1]

yes , i have WeAct Studio STM32H750 Development Board



[Andrew Neil]

You mean this: https://www.adafruit.com/product/5032 ?

For non-ST boards, please always give a link, so that we know exactly what you're referring to.

[GaetanGodart]

Hello @Prajyot1 ,



The TBS (TouchGFX Board Setup) you choose works for the STM32H750-Discovery board which has specific memory, pins, PCB, display, etc.

You seem to be using another board.

Therefore, you will have to create your own TBS, to do so, you can get inspired by our TBS and you can look at this guide .



Regards,
