X-CUBE-TOUCHGFX 4.23.1 is out!
TouchGFX 4.23.1 is now out.
Please follow this link to download it.
4.23.1 Release details:
-
Release date: January 22nd, 2024
-
New TouchGFX Designer Features:
-
Bugfixes in TouchGFX Designer:
- Fixed TextArea lineheight in canvas not matching with rendered lineheight.
- Fixed 'tgfx.exe generate' creating new 'touchgfx_backup' everytime it is executed.
- Fixed opening properties for 'Grid Lines' and 'Labels' on graph widgets enabling and disabling them.
- Fixed importing Custom Widgets with fonts causing issues.
-
New TouchGFX Core Features:
- Added methods SwipeContainer::goNextPage() and SwipeContainer::goPreviousPage() to change page with an animation.
-
Bugfixes in TouchGFX Core:
- Fixed issue where kerning data was sometimes missing for vector fonts.
- Fixed issue where CacheableContainer could draw outside the invalidated area.
- Drawing vector fonts on STM32U599/5A9 using GPU2D (NeoChrom) would result in poor anti-aliasing.
- Fixed Keil library nemagfx_core_release.lib to use lcd class "LCDGPU2D_AXI" instead of "LCDGPU2D" for cortex M7 and M55.
-
Deprecated TouchGFX Core Features:
- New TouchGFX Generator Features:
- Support for TrustZone applications (STM32L5/STM32U5).
- Bugfixes in TouchGFX Generator:
- Having Video Decoding enabled on ThreadX applications would result in compilation errors when using MDKARM.
4.23.0 Release details:
-
Release date: December 5th, 2023
-
New TouchGFX Designer Features:
- Added ability to define typography as vector rendered font.
- Added possibility to use the IntFlash option in the designer.
- Added 'overshoot percentage' property on Scroll Wheel and Scroll List widgets.
- Added WideTextAction property to Text Area widget.
-
Bugfixes in TouchGFX Designer:
- Fixed validation not being run when adding a new language.
- Fixed being able to move locked Custom Container Instances when loading a project.
- Fixed 'Operating System' label being shown when importing a UI into a project.
- Fixed generated '.svg.png' images with malformed format crashing the application.
- Fixed wrong typography selected for wildcard buffer.
- Fixed erroneous code generation when having two interactions and trigger on an interaction with 'Delay' as its action.
- Fixed crash when modifying a copied Custom Container.
- Fixed naming of copied and pasted Screens and Custom Containers not being assigned correct names.
- Fixed being able to set simulator skin offset to a negative number.
- Fixed being able to set Screen size to 0,0.
- Fixed crash when closing a project.
- Fixed canvas buffer size not being editable.
- Fixed application behaving weirdly when project path includes whitespace characters.
- Fixed File->Recent not having an upper limit, resulting in UI being unusable.
- Fixed CircleProgress widget rendering start and end angle correctly on canvas.
- Fixed image selector not showing correct images when switching between folders.
- Fixed resource Text being deleted if a FlexButton widget used the resource Text.
- Fixed Widgets disappearing when added to SwipeContainer pages.
- Fixed a bug where copying and pasting widgets in widget tree, would reverse the order of the widgets
- Fixed bug where newlines in wildcard texts were not allowed.
- Fixed erroneous rendering in canvas when rotating text in Text Area and Button With Label Widget.
-
New TouchGFX Core Features:
- Added Vector Font Rendering.
- Added support for 32 bpp vector rendering.
- Painters for 32bpp will now use hardware acceleration (when possible).
-
Bugfixes in TouchGFX Core:
- Changed AbstractButtonContainer::getPressed to const.
- Fixed a bug in AnimationTextureMapper that caused an assert when an animation was started repeatedly.
- Fixed a bug in Unicode::snprintfFloats where #-formatter was ignored.
- Fixed a bug where TextureMapper would not rotate bitmaps for rotated displays on GPU2D (NeoChrom) targets.
- Missing VideoController::setVideoFrameRateCompensation() method has been added to the VideoController interface.
- Added missing GPU2D (Neochrome) setup which caused a vector operation to fail if no other operations has been performed prior to it.
-
Deprecated TouchGFX Core Features:
- VectorRenderer::setup(const Widget&, const Rect&) has been replaced by VectorRenderer::setup(const Rect&, const Rect&).
Note : TouchGFX Designer 4.23.1 MUST be used with STM32CubeMX 6.10.0 or above (link to download STM32CubeMX).

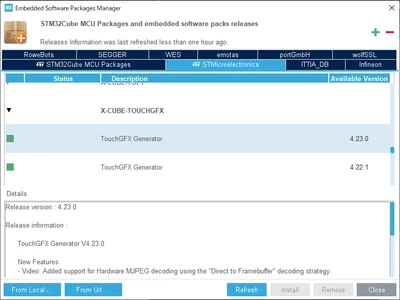

Attention : If X-CUBE-TOUCHGFX 4.23.1 is not available in STM32CubeMX software yet, please navigate to "Help > Manage embedded software packages > STMicroelectronics > X-CUBE-TOUCHGFX". Then click on "From Local ..." and navigate to the x-cube-touchgfx-4-23-1.zip file to install the new pack inside STM32CubeMX.
Please also check our Known Issues article.
Enjoy this new version ! :)
