ADC on the STM32WL5MOC module not working

[JoeGordon]

Hi Community!

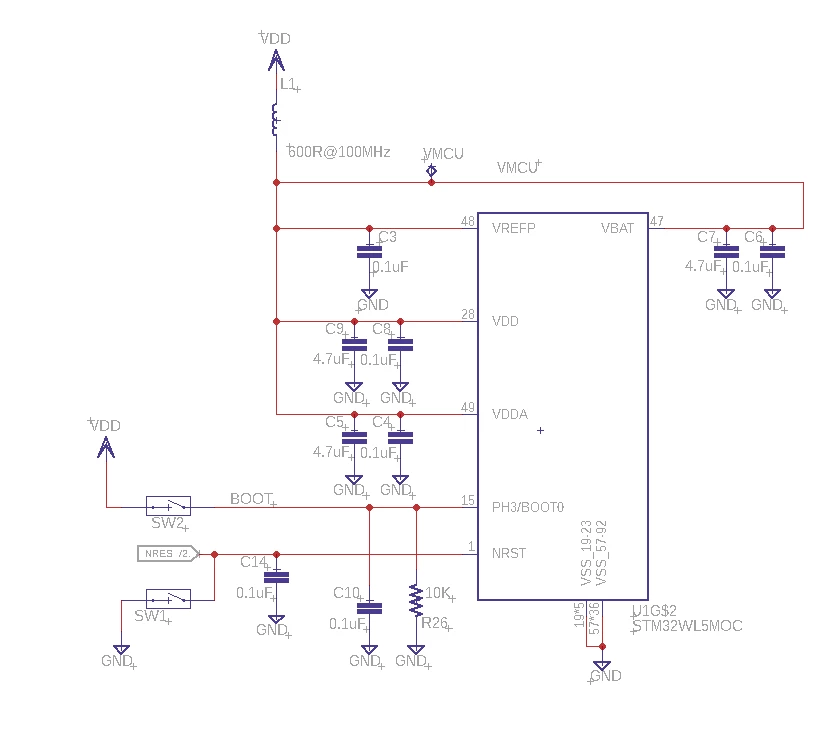

Currently working with the STM32WL5MOC module on my custom board.

I'm trying to work with the ADC but getting values like the fallowing and not changing even when i connect the ADC signal to ground.

light: 1366
light: 1367
light: 1367
light: 1366
light: 1367

I'm using default configuration for the ADC, and using the STM32cube

this is the code I'm using

  while (1)

  {

  HAL_ADC_Start(&hadc);

  HAL_ADC_PollForConversion(&hadc, HAL_MAX_DELAY);

     lux = HAL_ADC_GetValue(&hadc);

     sprintf(msg, "light: %hu \r\n",lux);

     HAL_UART_Transmit(&huart2, (uint8_t *)msg, strlen(msg), HAL_MAX_DELAY);

     HAL_Delay(500);

  }



Thanks in advance

[STTwo-32]

Hello @JoeGordon

Are you using our B-WL5M-SUBG1 or another design. If another design, please take care of any potential design issues. If it is our design, please send your full project here.

Best Regards.

STTwo-32
