How do I enable ThreadX on a STM32WB

  • August 13, 2025
  • 1 reply
  • 257 views

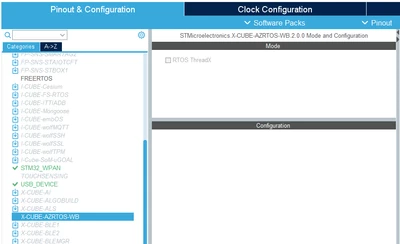

I've added the X-CUBE_AZRTOS-WB software pack and checked all the boxes for ThreadX but the RTOS ThreadX checkbox in STM32CubeIDE is disabled.  Is something else required to use ThreadX on an STM32WB?


Kindes regards

Best answer by STTwo-32

Hello @kumaichi

If USB_DEVICE middleware is configured, you can't use the X-CUBE_AZRTOS-WB (they can't be used on the same project). So, to configure the X-CUBE_AZRTOS-WB, you have to disable the USB_DEVICE.

Best Regards.

STTwo-32

1 reply

STTwo-32
STTwo-32Best answer
Technical Moderator
August 13, 2025

Hello @kumaichi

If USB_DEVICE middleware is configured, you can't use the X-CUBE_AZRTOS-WB (they can't be used on the same project). So, to configure the X-CUBE_AZRTOS-WB, you have to disable the USB_DEVICE.

Best Regards.

STTwo-32
