how to broadcast 15 byte data with ble

[Aboyh]

I want to create a program on stm32wb55 where the program broadcasts with a 15 byte payload containing the stm mac address, 4 bytes of data & 5 bytes of data
I have successfully done it on ESP32 and it can be scanned by a scanner

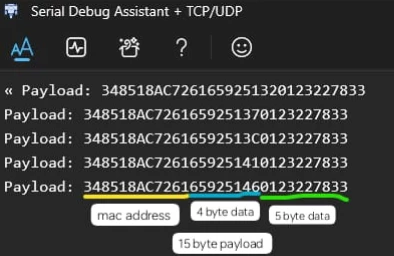

esp32 broadcaster

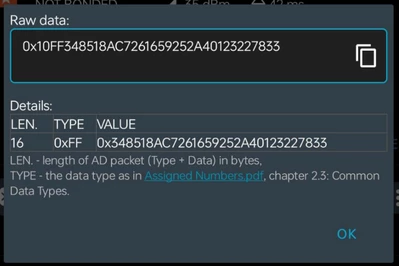

Scan with nrf connect

I want to do it on STM32 too, with the BLE_Beacon example program and choose type beacon

#define CFG_BEACON_TYPE (CFG_EDDYSTONE_UID_BEACON_TYPE)



but I don't understand how.. can you help me to produce the same payload as the one I created on ESP32?

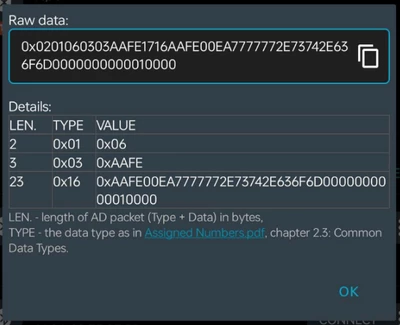

BLE_Beacon

[Aboyh]

@STTwo-32 can you help me sir?

[STTwo-32]

Hello @Aboyh

I suggest you take a look at the PM0271. It should be really helpful on your case. Else, could you provide more details.

Best Regards.

STTwo-32
