NUCLEO-WBA52CG SWO support inbox

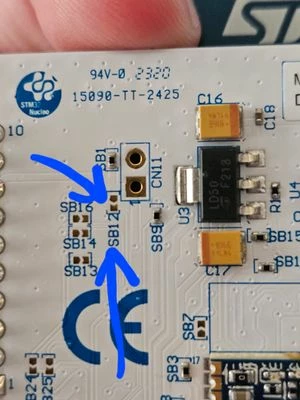

If I realize it is true, is it needed to solder SB12 in NUCLEO-WBA52CG board for using SWO as ITM_SendChar in printf debug?

Thank you for helping!

Best answer by STTwo-32

Hello @Arielu

I think it is a miss understanding from my side. You should solder the SB12 so you can use the on board SWO throw the on board ST-LINK.

Best Regards.

STTwo-32

Technical Moderator

Hello @Arielu and welcome to the ST Community.

The SB12 need to be soldered if you are going to use GPIO32 (Pin 10 of the CN4) as SWO.

Best Regards.

STTwo-32

Associate

And for using via embedded ST-LINK in the board, is it still required?

I ask because the ITM printf isn't working and after checking CAD resources for it.

Technical Moderator

If you are using the on board ST-LINK, you don’t need to solder the SB12.

Best Regards.

STTwo-32
