NUCLEO-WL55JC RCC HSE Crsytal/Ceramic Resonator configuration

[batuars]

Hi.

I want to use NUCLEO-WL55JC with 32MHz crystal, not TCXO. So i do following steps according to UM2592(User manual of STM32WL Nucleo-64 board)

• No C30 and no C38 as those capacitors are integrated into the STM32WL MCU.
• SB20 OFF in order not to supply the TCXO
• C31 OFF in order not to have a 32 MHz signal coming from the TCXO
• R39 and R40 ON to connect the X3 crystal to the STM32WL MCU



I use LoraWAN_end_node project in STM32Cube_FW_WL_V1.4.0.

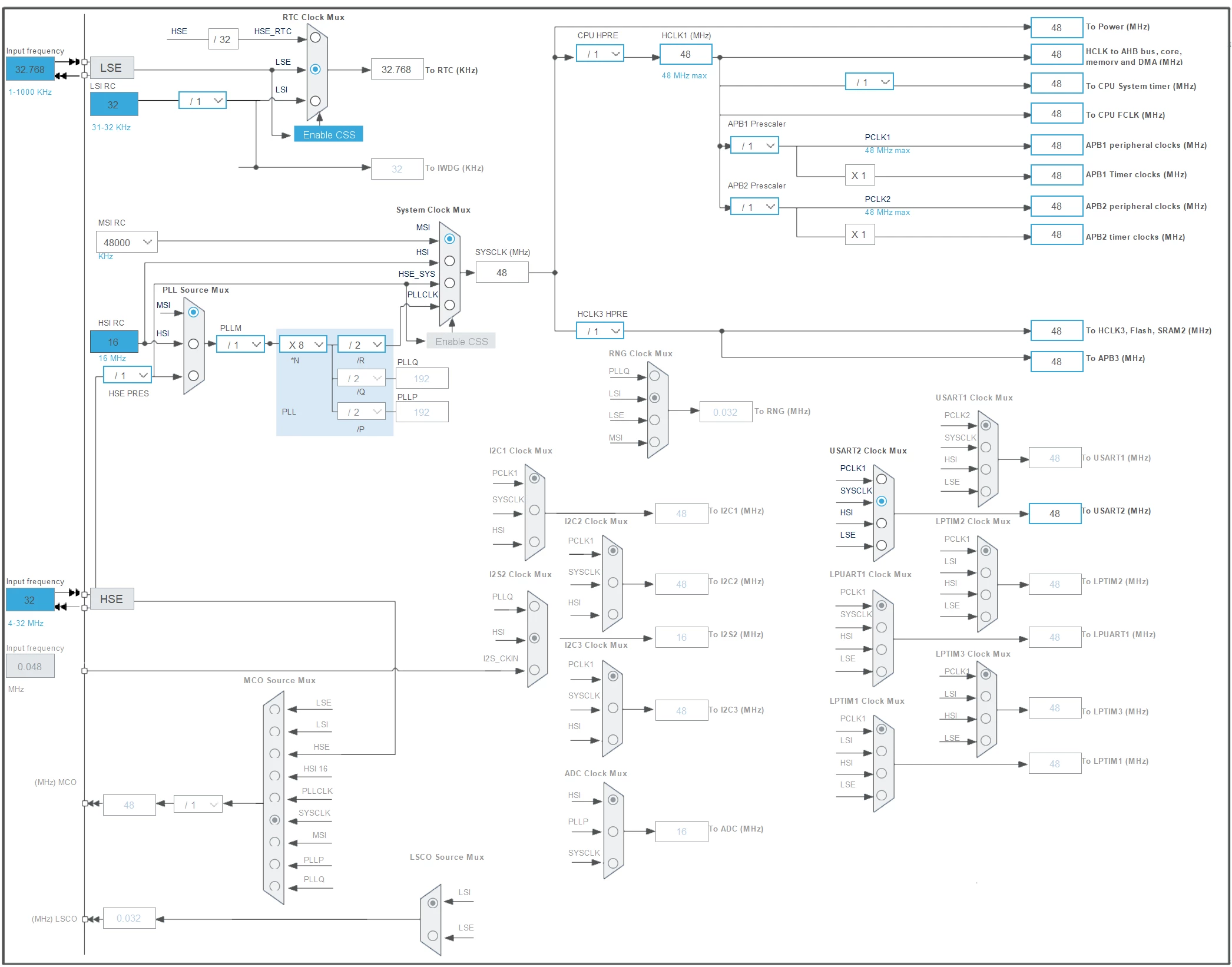

So i do following steps in configuration in CubeMX (also attach clock configuration)

• Select HSE as Crsytal/Ceramic Resonator instead of TCXO
• In stm32wlxx_nucleo_radio.c, BSP_RADIO_IsTCXO function returns RADIO_CONF_TCXO_NOT_SUPPORTED instead of RADIO_CONF_TCXO_SUPPORTED.



But after that, NUCLEO board give me message MAC txTimeOut instead of success tx process. While i use TCXO, there is no problem to send tx and also connect to LoraWAN.



What can i do to use standard crsytal instead of TCXO? Because i want to use my custom board, but i stuck about crystal.



[batuars]

Sorry for my mistake. The problem was my fault. I could not solder the R39 properly. After soldering, it connect LoraWAN successfully.
