STM32cubemonitorRF - 'Get RSSI' disabled

[ljm]

Hello

i'm using STM32WB05KZ (nucleo board) : Nucleo-WB05KZ with STM32CubemonitorRF

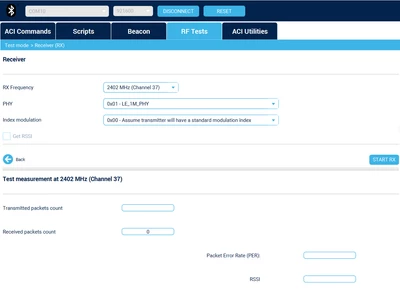

Please why here i can't select  "Get RSSI" , it's locked ?

and other question how can i modifie the outpout power (TX) of the antenna ( dBm) ?

thank you

[STTwo-32]

Hello @ljm

The Get RSSI option is locked due to the Firmware implementation on the STM32WB0, the ACI_HAL_READ_RSSI command is not supported.

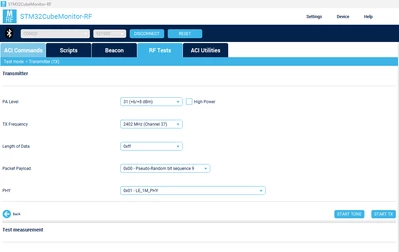

For the second question, if you are testing on a transmitter, you can set the PA Level you want here:

Best Regards.

STTwo-32



[ljm]

hello

thanks for replying.

for "Get RSSI" means there is no solution to get the RSSI value ?

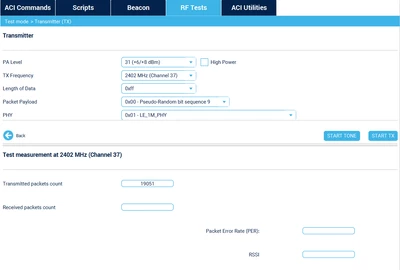

i do the some in mode transmission, i get the number of packets but there is no value for the rssi :

thanks

[STTwo-32]

For the STM32WB0, you can't get the RSSI using the STM32CubeMonitorRF.



[Andrew Neil]

New Post here: https://community.st.com/t5/stm32-mcus-wireless/stm32wb05kz-power-antenna-modification/td-p/782104



@ljm Don't forget to mark a solution in this thread!
