STM32WBA5M (Module) UltraLib Footprint error

[Juanduino]

Dear sir / madam



The UltraLibrarian WBA5M (Module) footprint is flawed. Potentially it can screw the module under reflow.

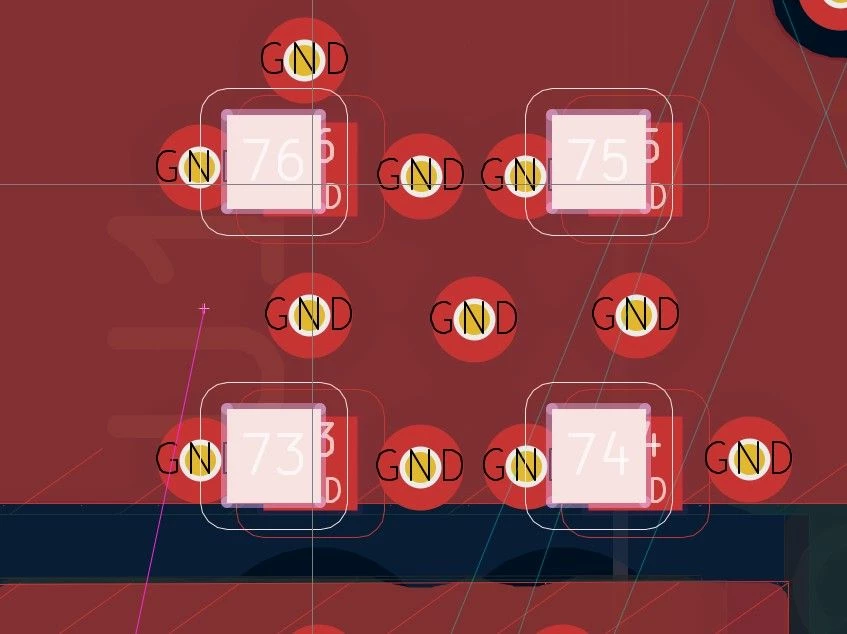

Those center GND pads are not placed correct. I noticed when comparing the ST dev-board module.



see image..

[KDJEM.1]

Hello @Juanduino and welcome to the community;

The requests about Ultralibrarian models must be handled directly through "Model feedback". To give your feedback, I recommend you to click on this link and follow the below steps.



Thank you.

Kaouthar
