STM32WL55 internal Pull-down Tolerance

[mokluza]

Hello team,



We are using STM32WL55 MCU. I haven't found any information about resistance value of its internal pull-down resistance.

As far as I know it is typically 40k. But could you tell what is the tolerance of this value?



Best regards,

Vladislav

[mƎALLEm]

Hello @mokluza and welcome to the community,

Min: 25K, Max 55k

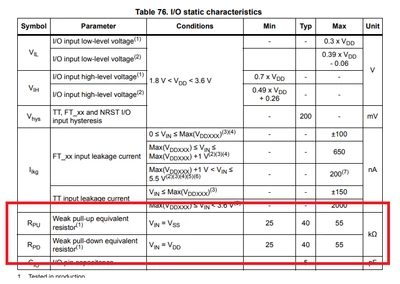

From the datasheet:



[mokluza]

Hello mƎALLEm,

Thank you for the quick reply.

Unfortunately your datasheet link doesn't work for me. Could you send me direct link or the file?



[Ozone]

The link is fine.
Probably a proxy issue on your side.
