Unable to turn on BLE WAPN on extended-full stack

[Exeu]

Hey there,

i have a custom board designed which is broadcasting stuff over BLE.

So far i am using the full_stack_fw which works quite well.

In order to turn on extended advertising i wanted to switch over to the full_extended_stack (needed for extended advertisement).

So i flashed the chip with the extended firmware.

After that i created a brand new project in CubeIDE and configured all the things.

Now i try to flash the application but it wont boot up :\

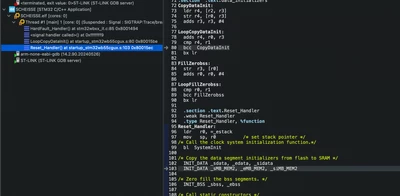

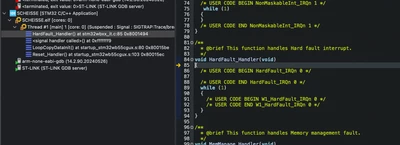

It gets somewhat of a HardFault after turning on BLE WAPN.

If i disable BLE again, it works.. So i am able to toggle an LED for example. No problem. This only occours as soon as BLE is activated.

Do you know what this is about?

Attached the IOC file aswell



[Ozone]

> It gets somewhat of a HardFault after turning on BLE WAPN.

That is the point to start from.
Read and "decode" the SCB registers that show you the reason for the hardfault.
I suspect a stack overflow. The processor stack of course, not the BLE protocol stack

PS: avoid profanities when naming your projects ...

[Exeu]

Thanks for the answer.

Do you know where i can see the SCB Registers in the IDE?

[FilipKremen]

Hello,

in order to run the extended binaries, the linker script file needs to be modified according to this guide.

STM32WB Bluetooth® LE – wireless stack information - stm32mcu (1.3.1.2)

Please let me know if you're able to run the project after the modification.



Best regards,

Filip Kremen

[Exeu]

you are my hero! Thank you so much man!

It seems to work now.

I was close to give up.. But now i can continue :)
