WB55 BLE client custom board

[JohnFromKrushevniky]

Hello.

I have my custom PCB with STM32WB55CEU. This board is tested so I m able to connect and sending data beetween "my PCB" and Smartphone.

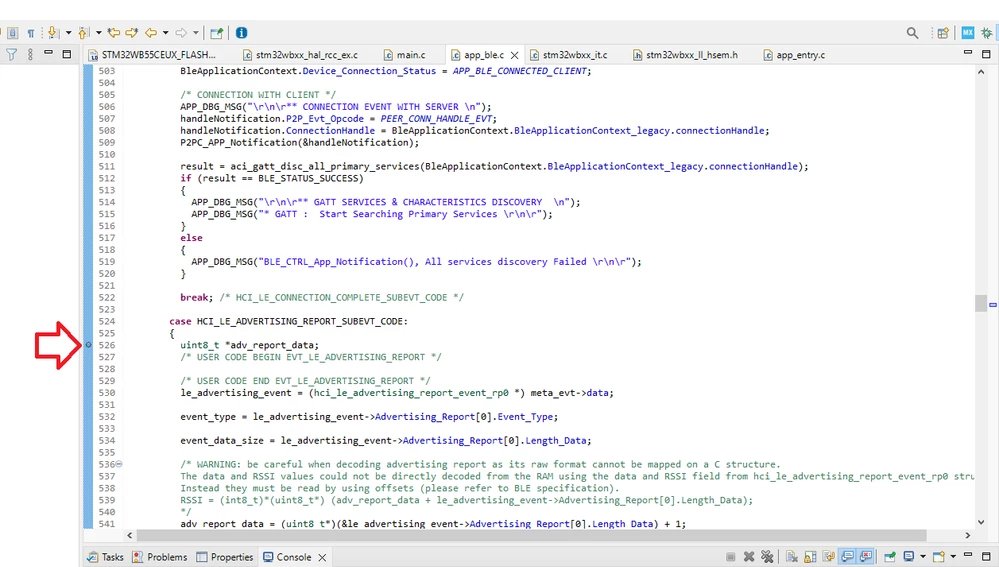

Now I have new goal. The goal is to start scan process for nearby devices. I would like to hit breakpoint which is illustrated by the red arrow in the photo below.

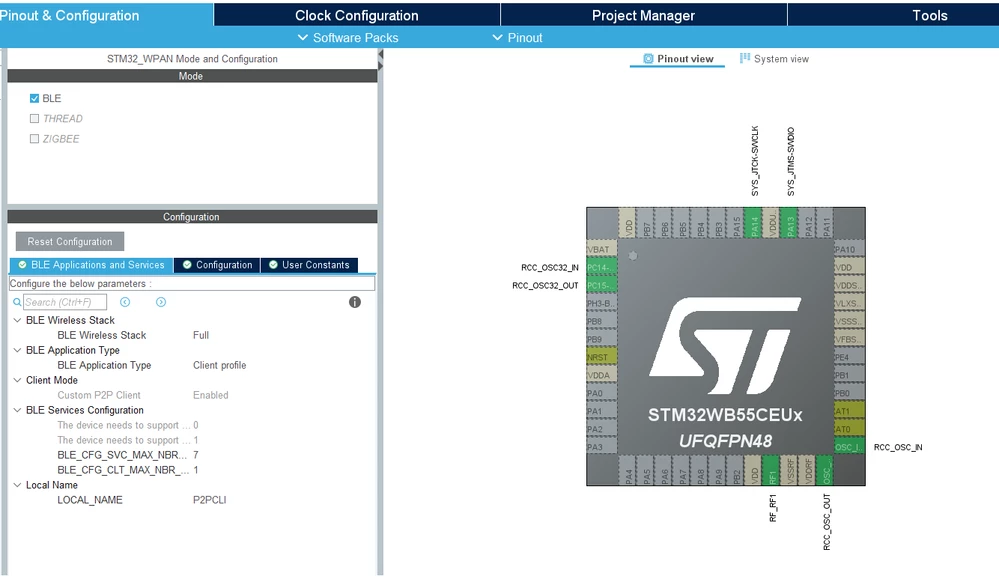

So I created new project, configure as Client profile with all default values. Is this configuration sufficient for the system to fulfill its purpose or should I add extra code to this project?

[Andrew Neil]

---

@JohnFromKrushevniky wrote:

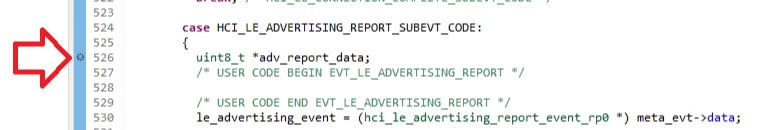

I would like to hit breakpoint which is illustrated by the red arrow in the photo below.

That point is just a variable definition - so there's (probably) no executable code there on which to set a break point.

[JohnFromKrushevniky]

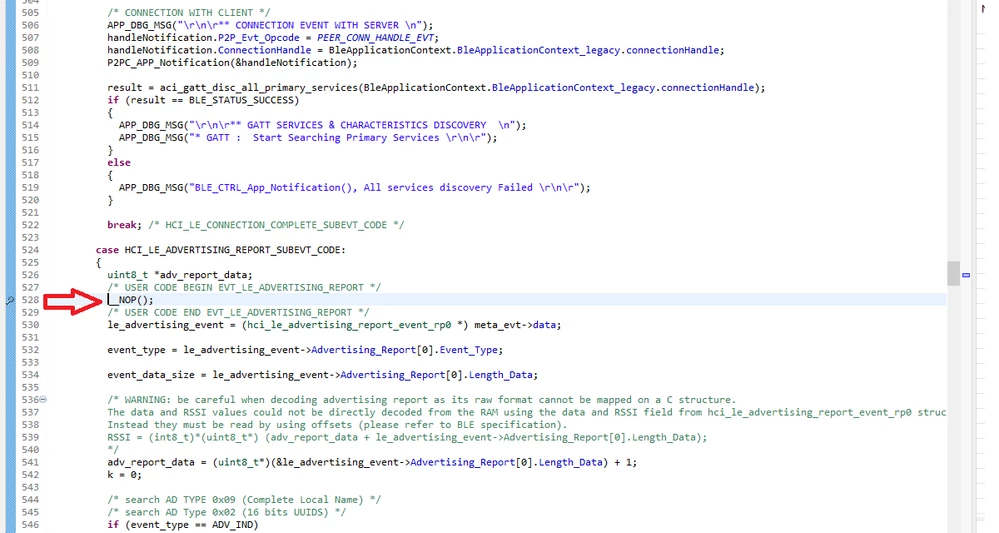

I added NOP(). I would like to hit the breakpoint.

As I understand this breakpoint will be reached when the STM32WB55 finds at least one device in its vicinity.

In next step I will be doing further operations.

[JohnFromKrushevniky]

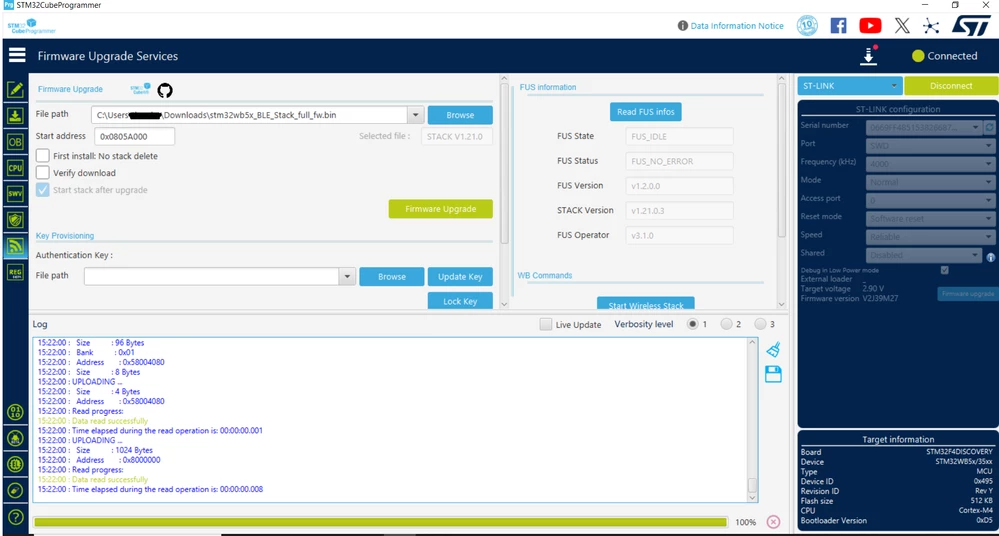

Some additional info:

As I can see on example P2P_client example there is a button whitch starts scanning process. I do not have any button on my custom board so I want to start scanning process at once, automatically after MCU initialization.

[JohnFromKrushevniky]

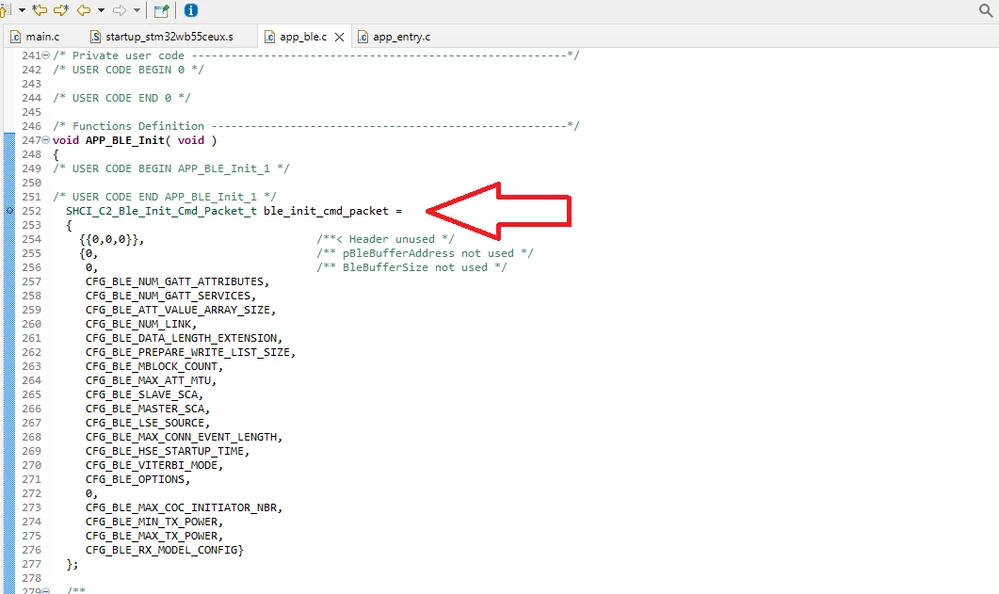

Program never reach this point:

[JohnFromKrushevniky]

Can anyone help me get started with this?

Does the lack of response from anyone mean that a lot needs to be changed in this project to start scanning?
