CubeProgrammer fails to reconnect over USB after U-Boot stage

[AMurr.2282]

I've been having this problem for a while now. I open one of the trusted flashlayout (.tsv) files in STM32CubeProgrammer. I can connect to the target board over USB without issue. I click "Download" and it successfully downloads tf-a-stm32mp-serialboot and also successfully downloads u-boot-stm32mp.

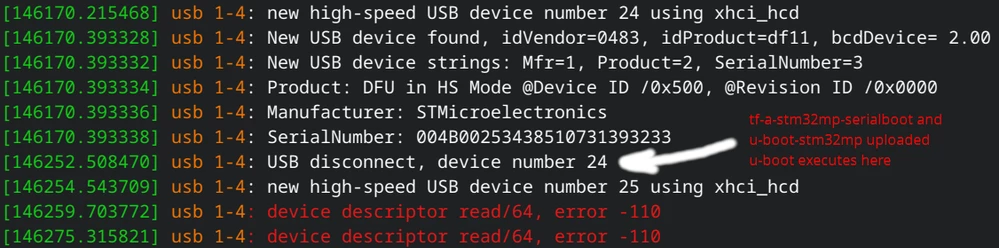

However, when U-Boot is executed, the target board fails to reconnect over USB. Here is the dmesg output:

Eventually, STM32CubeProgrammer times out because it is unable to connect to the target to download the kernel.

What could the cause for this be? I have looked at the USB configuration in the u-boot device tree many times and have followed the wiki, and it all looks correct.

[Olivier GALLIEN]

Hi @AMurr.2282​

Does this dedicated article may give you some clues ?

https://community.st.com/s/article/FAQ-STM32MP1-STM32CubeProgrammer-USB-reconnect-error-at-STM32MP1-boot-device-flashing

Olivier

[AMurr.2282]

Hi Olivier

I have tried everything in the article but I cannot get this to work. The article says it should reconnect as "USB download gadget" after u-boot has been downloaded. This does not happen with our board. Instead, we get error messages:

[ 3752.842604] usb 1-1.1.2: USB disconnect, device number 6

[ 3755.123295] usb 1-1.1.2: new high-speed USB device number 7 using xhci_hcd

[ 3760.411354] usb 1-1.1.2: device descriptor read/64, error -110

[ 3776.027392] usb 1-1.1.2: device descriptor read/64, error -110

[ 3776.223324] usb 1-1.1.2: new high-speed USB device number 8 using xhci_hcd

[ 3781.403408] usb 1-1.1.2: device descriptor read/64, error -110

[ 3797.019881] usb 1-1.1.2: device descriptor read/64, error -110

[ 3797.128891] usb 1-1.1-port2: attempt power cycle

[ 3797.739827] usb 1-1.1.2: new high-speed USB device number 9 using xhci_hcd

[ 3802.540048] usb 1-1.1.2: Device not responding to setup address.

[ 3807.551624] usb 1-1.1.2: Device not responding to setup address.

[ 3807.759839] usb 1-1.1.2: device not accepting address 9, error -71

[ 3807.847440] usb 1-1.1.2: new high-speed USB device number 10 using xhci_hcd

[ 3812.648248] usb 1-1.1.2: Device not responding to setup address.

[ 3817.659847] usb 1-1.1.2: Device not responding to setup address.

[ 3817.867473] usb 1-1.1.2: device not accepting address 10, error -71

[ 3817.869346] usb 1-1.1-port2: unable to enumerate USB device

Is it possible that u-boot is broken?

The hardware connections look fine. OTG ID pin is high (3.3V) and VBUS is 5V and is connected to PMIC.

Here is the u-boot device tree. Do you see any issues here?

/ {
 usb_phy_tuning: usb-phy-tuning {
 st,current-boost = <2>;
 st,no-lfs-fb-cap;
 st,hs-dc-level = <2>;
 st,hs-rftime-reduction;
 st,hs-current-trim = <5>;
 st,hs-impedance-trim = <0>;
 st,squelch-level = <1>;
 st,no-hs-ftime-ctrl;
 st,hs-tx-staggering;
 };
}; /* root */

&i2c4 {
 pmic: stpmic@33 {
 /* stuff */
 regulators {
 vbus_otg: pwr_sw1 {
 regulator-name = "vbus_otg";
 };

 vbus_sw: pwr_sw2 {
 regulator-name = "vbus_sw";
 regulator-active-discharge = <1>;
 };
 };
 };
};

&usbh_ehci{
 status = "okay";

 /* USER CODE BEGIN usbh_ehci */
 phys = <&usbphyc_port0>; /* Use USBPHYC HS PHY port #1, mapped on USBH controller */
 /* USER CODE END usbh_ehci */
};

&usbh_ohci{
 status = "okay";

 /* USER CODE BEGIN usbh_ohci */
 phys = <&usbphyc_port0>; /* Use USBPHYC HS PHY port #1, mapped on USBH controller */
 phy-names = "usb";
 vbus-supply = <&vbus_sw>;
 /* USER CODE END usbh_ohci */
};

&usbotg_hs{
 u-boot,dm-pre-reloc;
 pinctrl-names = "default", "sleep";
 pinctrl-0 = <&usb_otg_hs_pins_mx>;
 pinctrl-1 = <&usb_otg_hs_sleep_pins_mx>;
 status = "okay";

 /* USER CODE BEGIN usbotg_hs */
 phys = <&usbphyc_port1 0>; /* 0: UTMI switch selects the OTG controller */
 phy-names = "usb2-phy";
 vbus-supply = <&vbus_otg>; /* voltage regulator to supply Vbus */
 dr_mode = "peripheral";
 /* USER CODE END usbotg_hs */
};

&usbphyc{
 u-boot,dm-pre-reloc;
 status = "okay";

 /* USER CODE BEGIN usbphyc */
 /* USER CODE END usbphyc */
};

&usbphyc_port0{
 u-boot,dm-pre-reloc;
 status = "okay";

 /* USER CODE BEGIN usbphyc_port0 */
 phy-supply = <&v3v3_vdd_io>;
 st,phy-tuning = <&usb_phy_tuning>;
 /* USER CODE END usbphyc_port0 */
};

&usbphyc_port1{
 u-boot,dm-pre-reloc;
 status = "okay";

 /* USER CODE BEGIN usbphyc_port1 */
 phy-supply = <&v3v3_vdd_io>;
 st,phy-tuning = <&usb_phy_tuning>;
 /* USER CODE END usbphyc_port1 */
};

[PatrickF]

Hi,

I assume you are using your own custom board.

Are you using latest CubeProgrammer ? On W10, Linux PC or Virtual Machine ? On VM, there is some settings to ensure the USB are 'routed' to the VM.

Is you DDR memory working, did you tuned it and tested it using DDRTool ?

Btw, maybe look also at following articles:

https://community.st.com/s/article/FAQ-STM32MP1-How-to-create-a-device-tree-with-STM32CubeMx-for-your-design

https://community.st.com/s/article/FAQ-STM32MP1-Bring-up-procedure

Regards.

[Olivier GALLIEN]

Hi @Hgvfd.1​ ,

If all hints provided in this article does not help, I would rather recommend you to open a new post with complete description of your environment ( Soc, board, SW version) and traces from both CubeProg and target.

Thx,

Olivier
