Hi, I have built the OpenSTLinux distribution according to your wiki guide (https://wiki.st.com/stm32mpu/index.php/STM32MP1_Distribution_Package#Building_the_OpenSTLinux_distribution).

[JMour.1]

I want to populate the distribution to an SD-card and mount it in STM32MP157A-DK1 according to this link: https://wiki.st.com/stm32mpu/wiki/STM32CubeProgrammer#How_to_populate_a_microSD_card_inserted_in_a_Linux_host_PC

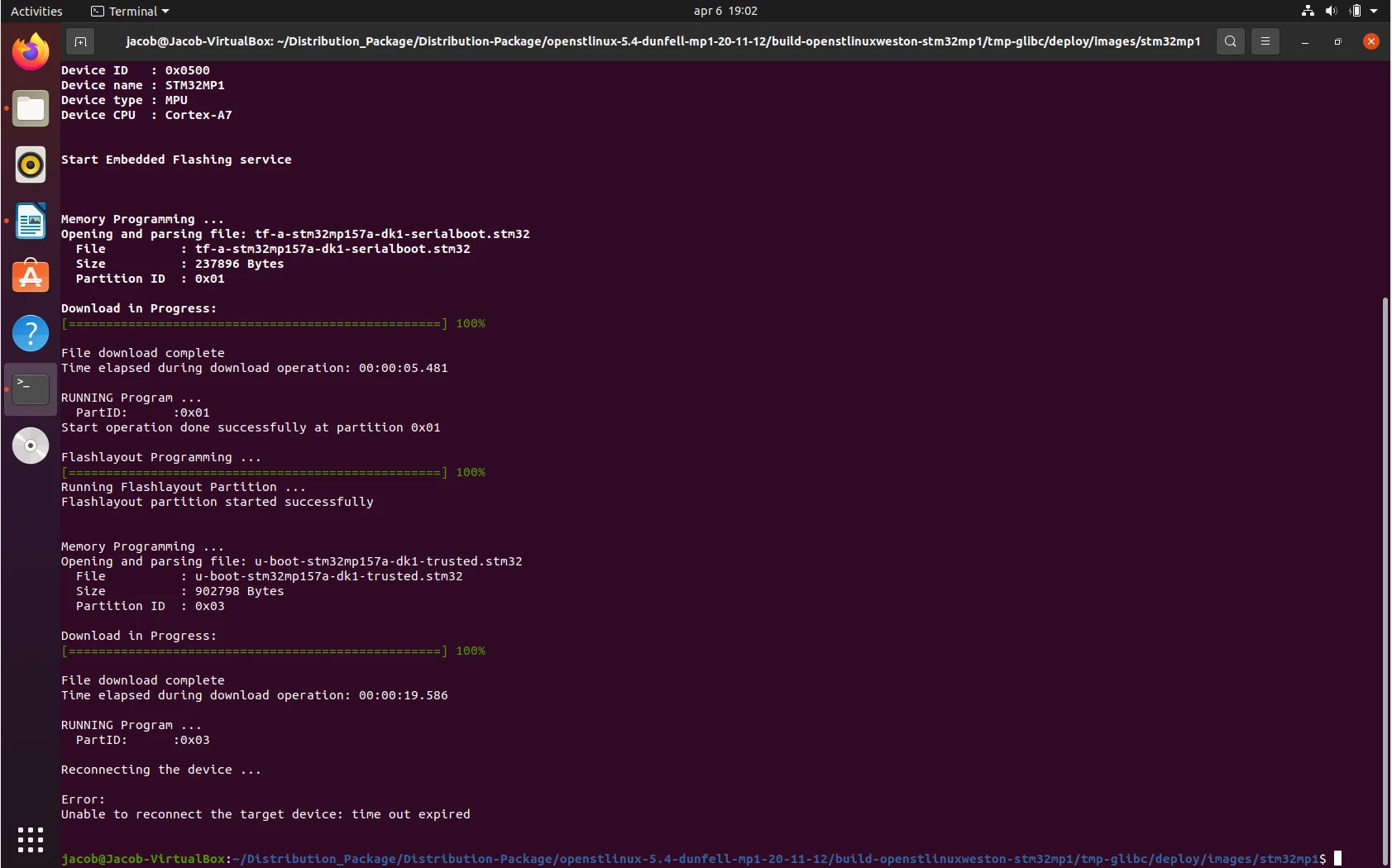

My host PC is a virtual machine and it seems like there is a problem with STM32CubeProgrammer reconnecting to the device (see uploaded image). I have changed the USB settings on my virtual machine to automatically attach the device to it. This works fine when I press the reset button on STM32MP157A-DK1, it unmounts and mounts directly to the virtual machine again.

How can I solve the reconnecting problem with STM32CubeProgrammer? Is there another way to populate an SD card by copying files from the deploy folder in the built distribution folder?

[PatrickF]

Hi, did the flashload work with pre-built Starter Package ?

Otherwise please have a look to https://community.st.com/s/article/FAQ-STM32MP1-STM32CubeProgrammer-USB-reconnect-error-at-STM32MP1-boot-device-flashing

Regards.

[JMour.1]

No, it didn't.

I have tried to do this on Windows instead and the same problem occurs despite not using a virtual machine. Here is the log from CubeProgrammer:

08:23:31 : Read TSV File: C:\Work\Starter-Package\stm32mp1-openstlinux-5.10-dunfell-mp1-21-03-31\images\stm32mp1\flashlayout_st-image-weston\trusted\FlashLayout_sdcard_stm32mp157a-dk1-trusted.tsv

 08:23:31 : Number of partitions: 9

 08:23:50 : USB speed  : High Speed (480MBit/s)

 08:23:50 : Manuf. ID  : STMicroelectronics

 08:23:50 : Product ID : DFU in HS Mode @Device ID /0x500, @Revision ID /0x0000

 08:23:50 : SN     : 003000443338510D39303435

 08:23:50 : FW version : 0x0110

 08:23:50 : Device ID  : 0x0500

 08:23:54 : Start Embedded Flashing service

 08:23:54 : Memory Programming ...

 08:23:54 : Opening and parsing file: tf-a-stm32mp157a-dk1-usb.stm32

 08:23:54 :  File     : tf-a-stm32mp157a-dk1-usb.stm32

 08:23:54 :  Size     : 225572 Bytes

 08:23:54 :  Partition ID : 0x01

 08:23:54 : Download in Progress:

 08:23:55 : File download complete

 08:23:55 : Time elapsed during download operation: 00:00:00.387

 08:23:55 : RUNNING Program ...

 08:23:55 :  PartID:   :0x01

 08:23:55 : Start operation done successfully at partition 0x01

 08:23:55 : Flashlayout Programming ...

 08:23:55 : Running Flashlayout Partition ...

 08:23:55 : Flashlayout partition started successfully

 08:23:55 : Memory Programming ...

 08:23:55 : Opening and parsing file: fip-stm32mp157a-dk1-trusted.bin

 08:23:55 :  File     : fip-stm32mp157a-dk1-trusted.bin

 08:23:55 :  Size     : 1064414 Bytes

 08:23:55 :  Partition ID : 0x03

 08:23:55 : Download in Progress:

 08:23:56 : File download complete

 08:23:56 : Time elapsed during download operation: 00:00:00.957

 08:23:56 : RUNNING Program ...

 08:23:56 :  PartID:   :0x03

 08:23:56 : Reconnecting the device ...

 08:24:26 : Error: Unable to reconnect the target device: time out expired

 08:24:26 : Error: Start operation failed at partition 0x03

 08:24:26 : Error: TSV flashing service failed

 08:24:26 : Warning: Connection to device 0x500 is lost

 08:24:26 : Disconnected from device.

What am I doing wrong?

[PatrickF]

Hi,

in W10 Device Manager, please check the USB 'DFU in HS mode @...." device properties details.

Property 'Bus reported device description' should be:

1. "DFU in HS Mode @Device ID /0x500, @Revision ID /0x0000" when it is issued from the BootROM (used to load partition Id 0x01 and 0x03) after reset with BOOT pin set to 'Serial USB'
2. "USB download gadget@Device ID /0x500, @Revision ID /0x2000, @Name /STM32MP157AAC Rev.B," or similar when uBoot is connected (after "Reconnecting the device ..." )

If not, you might have missed some USB driver during installation or some USB devices are disabled (e.g. still point to a Virtual Machine).

Be sure to try with latest CubeProgrammer v2.7.0 and pre-built images from latest Starter Package.

Logging console could help (UART VCP on ST-Link port, 115200,n,8,1)

Regards.

[JMour.1]

Hi,

The USB in Device Manager is "DFU in HS Mode @Device ID /0x500, @Revision ID /0x0000".

I'm not sure if the DFU driver was installed during installation. STM32 Bootloader.bat file executes without errors but

"PC $> STM32_Programmer_CLI -l usb"

returns:

"STM32_Programmer_CLI : The term 'STM32_Programmer_CLI' is not recognized as the name of a cmdlet, function, script

file, or operable program. Check the spelling of the name, or if a path was included, verify that the path is correct

and try again.

At line:1 char:1

+ STM32_Programmer_CLI -l usb

+ ~~~~~~~~~~~~~~~~~~~~

  + CategoryInfo     : ObjectNotFound: (STM32_Programmer_CLI:String) [], CommandNotFoundException

  + FullyQualifiedErrorId : CommandNotFoundException"

I'm using the latest CubeProgrammer and pre-built image from latest Starter Package.

[PatrickF]

Please carefully check the property 'Bus reported device description' for point 1 and 2 in my previous reply

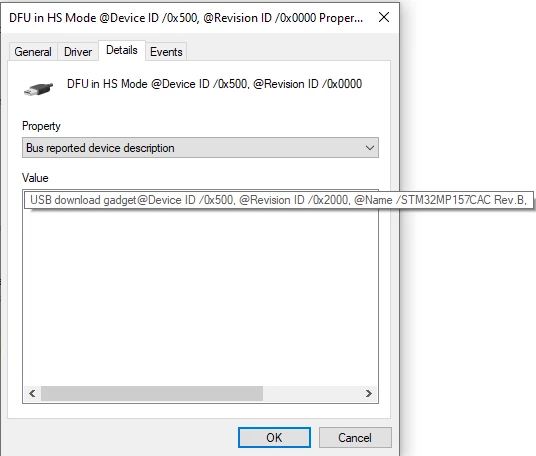

When uBoot start, it should be like that (captured from DK2-F):you could also use:

"%ProgramFiles%\STMicroelectronics\STM32Cube\STM32CubeProgrammer\bin\STM32_Programmer_CLI.exe" -l usb

and check "Product ID" before flashing (with BootROM DFU) and during Flashing (with uBoot DFU).

Have your tried on another PC or using another USB high-speed port on the PC ?

Regards.

[Fase.1]

I also faced the similar issue of reconnecting with STM32CubeProgrammer while working on my new page project If there is a possibility to solve this issue then please guide me.
