How do I flash OpenSTLinux onto STM32MP151 with eMMC by using STM32CubeProgrammer?

[DMårt]

I have built my own STM32MP15XXAC board from scratch DanielMartensson/STM32-Computer: STM32 Computer were Linux can be deployed onto (github.com)

Instead of SD-card, it has eMMC. Now I want to flash the eMMC with OpenSTLinux. How can I do that with STM32CubeProgrammer?

I find lack of information how to install Linux or other kind of Linux-OS onto eMMC for STM32MP15XXAC.





[Gregory PLANCHON]

Hi @DMårt ,



It works in the same way as with an SD card, you just have to be sure that the file you're sending is for emmc.



Regards,

Grégory

[DMårt]

@Gregory PLANCHON

Thank you for your reply.

But where do I start?

I have downloaded the software STM32CubeProgrammer. So now I need some image right or firmware? Where can I find that?

[Gregory PLANCHON]

You can adapt the ostl to your physical characteristics, using either

• the distribution package to use Yocto  : https://wiki.st.com/stm32mpu/wiki/STM32MPU_Distribution_Package
• the developer package to use the SDK : https://wiki.st.com/stm32mpu/wiki/STM32MPU_Developer_Package

Then follow this example to flash your EMMC : https://wiki.st.com/stm32mpu/wiki/Getting_started/STM32MP1_boards/STM32MP157x-EV1/Let%27s_start/Populate_the_target_and_boot_the_image



Regards,

Grégory

[DMårt]

@Gregory PLANCHON

Hi!

There is no pre-compiled OS image?

Compile the linux kernel for this processor can take weeks.

[DMårt]

@Gregory PLANCHON

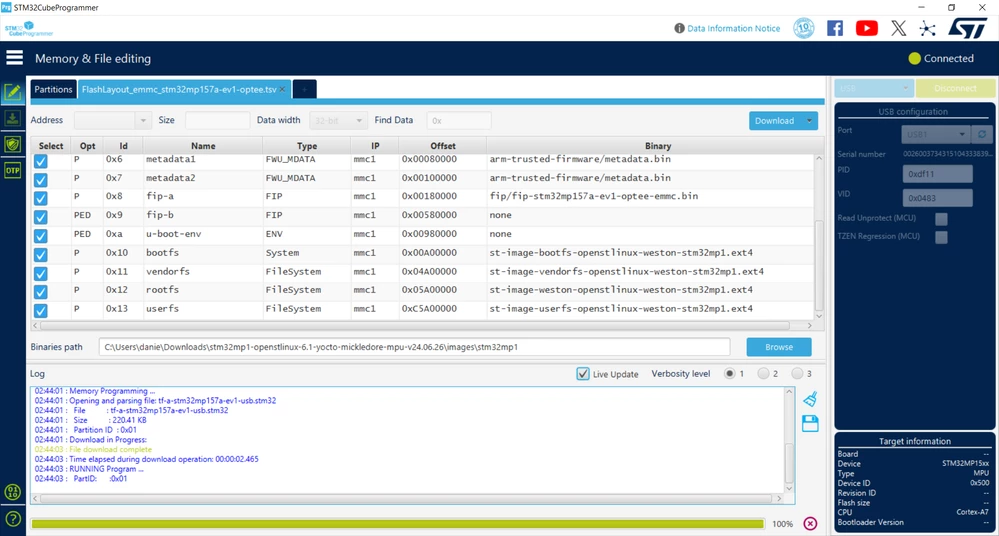

Now I have flashed the board. Is this correct?

I did not get any pop-up that saying "Flash complete"

---





 02:42:03 : STM32CubeProgrammer API v2.17.0 | Windows-64Bits
 02:42:10 : Read TSV File: C:\Users\danie\Downloads\stm32mp1-openstlinux-6.1-yocto-mickledore-mpu-v24.06.26\images\stm32mp1\flashlayout_st-image-weston\optee\FlashLayout_emmc_stm32mp157a-ev1-optee.tsv
 02:42:10 : Number of partitions: 13
 02:43:38 : UR connection mode is defined with the HWrst reset mode
 02:43:38 : USB speed : High Speed (480MBit/s)
 02:43:38 : Manuf. ID : STMicroelectronics
 02:43:38 : Product ID : DFU in HS Mode @Device ID /0x500, @Revision ID /0x0000
 02:43:38 : SN : 002600373431510433383938
 02:43:38 : DFU protocol: 1.1
 02:43:38 : Board : --
 02:43:38 : Device ID : 0x0500
 02:44:01 : Start Embedded Flashing service
 02:44:01 : Memory Programming ...
 02:44:01 : Opening and parsing file: tf-a-stm32mp157a-ev1-usb.stm32
 02:44:01 : File : tf-a-stm32mp157a-ev1-usb.stm32
 02:44:01 : Size : 220.41 KB
 02:44:01 : Partition ID : 0x01
 02:44:01 : Download in Progress:
 02:44:03 : File download complete
 02:44:03 : Time elapsed during download operation: 00:00:02.465
 02:44:03 : RUNNING Program ...
 02:44:03 : PartID: :0x01 ​
