How to assgin TIM1 as time base source on cube MX for STM32MP157C-DK2

[ABous.1]

Hello,

I wish use FreeRTOS with STM32MP157C. When I configure my bord on CubeMX a message pop up says I should configure SYS parameter with an others time source than sysTick. But if I configure TIM1 for example I cannot assign TIM1 in SYS section .

card

Have you any ideas to solve this problem ?

Best Regards,

Arnaud Bousquet

[Olivier GALLIEN]

Hi @ABous.1​

Normally you just have to assign TIM1 on M4 context without enabling anything else.

Then TIM1 should be available in SYS section.

Hope it help

Olivier

[ABous.1]

Hello,

I try again with your recommendation but without success.

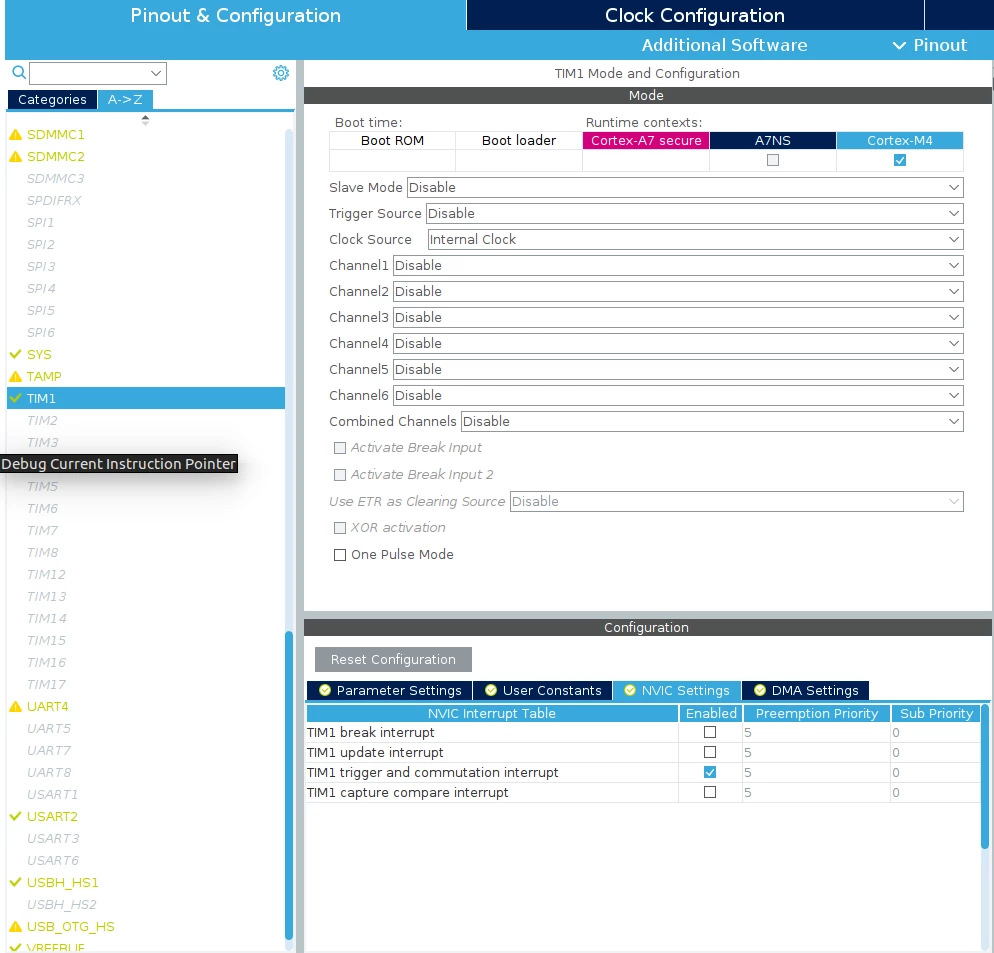

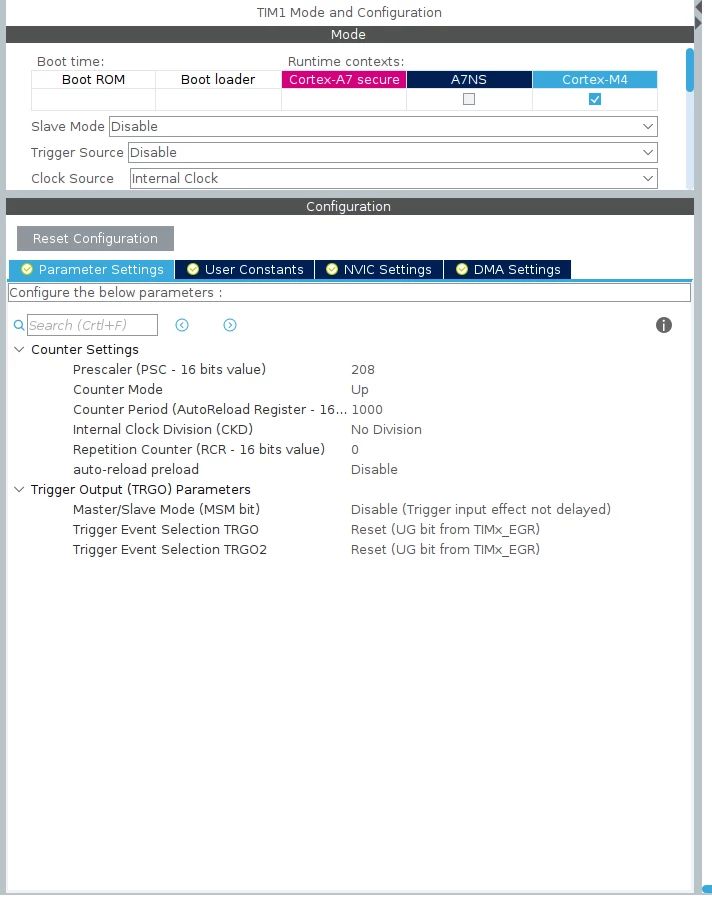

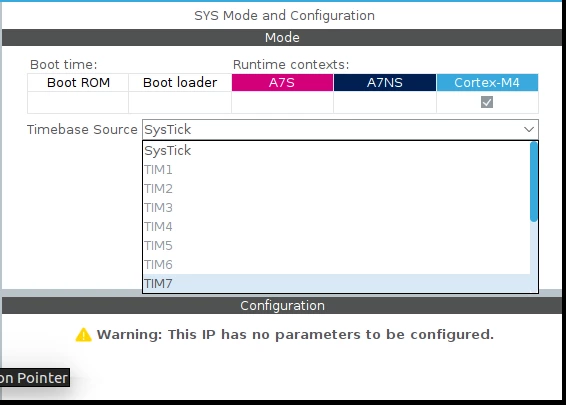

I do some screenshot of my modification in cubeMX project.

PS: My STMcubeMX version is 5.5.0.

Best regards,

Arnaud Bousquet

[Olivier GALLIEN]

Hi @ABous.1​

You have to remove Clock Source setting in TIM1. Set it back to Disable.

Olivier
