How to select format type and KeySize in STM32 Trusted Package Creator?

[ThinhNguyen]

I am following the "How to deploy SSP using a step-by-step approach". I am working on "3.1.2.2. Secret file content for STM32MP2 series". The target MPU is STM32MP257F. I have some questions as below:

1. How do I know whether to choose "Format 1" or "Format 2"?

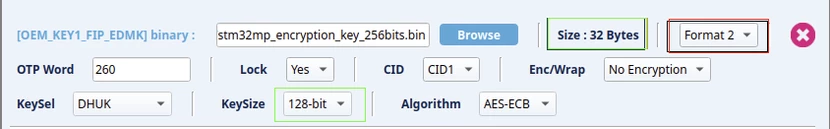

2. I selected the binary file as FIP-EDMK, which is 256-bit but the KeySize shows 128-bit and it won't let me select 256-bit again. Is this acceptable?







[Zakaria1]

Hello @ThinhNguyen,

According to the STM32 Trusted Package Creator user manual, it states:
"Select the endianness format of the binary, Format 1, or Format 2. (Format 1 is fixed for word item)." Since you’re working with a binary, you should select Format 2.
For the second question, you need to change the Enc/Wrap option to either Encryption or Wrapping to access the KeySize option and set it to 256-bit.

Please refer to the user manual UM2238 for more details.

Best Regards,
Zakaria

[ThinhNguyen]

Hi @Zakaria1 ,

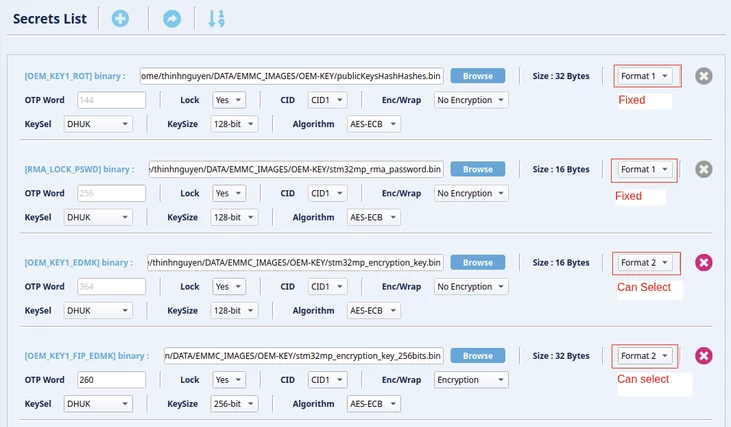

I read UM2238 but didn't see much mention about when to use format 1 and when to use format 2. As you said, when using binary files, you should choose format 2, so why are OEM_KEY1_ROOT and RMA_LOCK_PSWD also binary files but it requires choosing format 1.



[Zakaria1]

Hi @ThinhNguyen,
Sorry, I misunderstood. In fact, for all word items, the format is fixed as Format 1. For binary items, there is a choice, but for specific keys, I believe the tool enforces the format to avoid selecting an incorrect one. The format refers to the endianness used for writing keys to the OTPs. Here’s an example from UM2238:

Endianness given in the specification for format: Keys are represented as a string of bytes
to be stored in consecutive OTP words. For example, a 64-bit key
(0xAABBCCDDEEFF5566) is stored in two consecutive OTP words, KEY0 and KEY1. A
key is stored in OTP words using one of the following formats:
• Format 1: KEY0 = 0xAABBCCDD, KEY1 = 0xEEFF5566
• Format 2: KEY0 = 0xDDCCBBAA, KEY1 = 0x6655FFEE

[Zakaria1]

Please refer to this wiki page for the STM32MP23-25 OTP mapping to determine which format to use.
STM32MP23-25 OTP mapping - stm32mpu
Here’s a screenshot from the wiki showing that OEM_KEY1_ROT and OEM_KEY2_ROT must be in Format 1:

[ThinhNguyen]

Hi @Zakaria1,

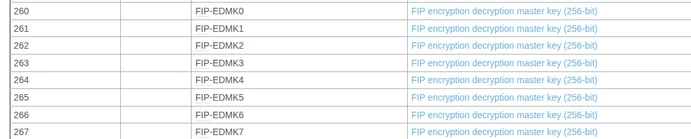

I looked through it, but unfortunately it doesn't mention anything about the FIP-EDMK format. You can see the image I pasted below.

Click to the link it let me to the intruction to enable secure boot. There is no information about FIP-EDMK format type too.



[Zakaria1]

Indeed, the FIP-EDMK format is not specified in the wiki. I’ll look into updating the wiki page to include the correct format.
You can find the information in U-Boot in the file:

`arch/arm/mach-stm32mp/cmd_stm32key.c`

It contains:
{
.name = "FIP-EDMK",
.desc = "Encryption/Decryption Master Key for FIP",
.start = 260,
.size = 8,
},
The format isn’t specified, so it defaults to Format 1.
static int fuse_key_value(struct udevice *dev, const struct stm32key *key, unsigned long addr, bool print)
{
u32 word, val;
int i, ret;
u32 (*format)(u32) = format1;

/* Use key_format function pointer if defined */
if (key->key_format)
format = key->key_format;

Format1 is the default value.

If the format is specified in the structure (always with Format 2), then Format 2 is used.

So, the format to use is indeed Format 1. I hope this answers all your questions. I’ll request information regarding the meaning of the Enc/Wrap option and respond in the other post.

[Zakaria1]

Hi @ThinhNguyen,

Here’s the link to access the same code I sent in the previous response:
u-boot/arch/arm/mach-stm32mp/cmd_stm32key.c at v2023.10-stm32mp · STMicroelectronics/u-boot · GitHub

Best Regards,
Zakaria

[ThinhNguyen]

hi @Zakaria1 ,

Thank you. It seems that the patch file for uboot in the meta-st-stm32mp is outdate but that is beyond the scope of this question.
