NAND Flash initialization hangs forever on custom board

[AMurr.2282]

Hello community

Problem in short:

The boot process hangs when U-Boot tries to load the stm32_fmc2_nand driver. Serial output can be found here:

https://pastebin.com/VgJG6rSF

I have designed and built a custom board using the STM32MP153AAC. The peripherals share a lot in common with the STM32MP157C-DK2 dev board (serial is also connected to uart4, PMIC is also connected to i2c4) so I used the STM32MP157C-DK2.dts device tree source file as reference for a lot of the changes I made to my own device tree source file.

My top-level dts can be found here. It was auto-generated by CubeMX and then manually edited here and there:

https://pastebin.com/pUJsdDzH

You can see on line 525 the relevant FMC block. I copy/pasted most of it from stm32mp157c-dk2.dts

My build process for U-Boot is:

# Get correct U-Boot source with STM32MP patches
git clone https://github.com/STMicroelectronics/u-boot
git checkout v2018.11-stm32mp

# Name of my device tree source file (see above)
export export DEVICE_TREE=stm32mp153a-raichu-cubemx-mx-u-boot
export CROSS_COMPILE=arm-linux-gnueabihf-
export ARCH=arm

# Configure & Build
make stm32mp15_trusted_defconfig
make -j

I previously built a linux distribution using Yocto Project, which generated the following flash layout file (.tsv):

#Opt Id Name Type IP Offset Binary
- 0x01 fsbl1-boot Binary none 0x0 tf-a-stm32mp153a-raichu-cubemx-mx-trusted.stm32
- 0x03 ssbl-boot Binary none 0x0 u-boot-stm32mp153a-raichu-cubemx-mx-trusted.stm32
P 0x04 fsbl1 Binary(2) nand0 0x00000000 tf-a-stm32mp153a-raichu-cubemx-mx-trusted.stm32
P 0x06 ssbl Binary nand0 0x00200000 u-boot-stm32mp153a-raichu-cubemx-mx-trusted.stm32
P 0x07 ssbl2 Binary nand0 0x00400000 u-boot-stm32mp153a-raichu-cubemx-mx-trusted.stm32
P 0x21 ubifs System nand0 0x00600000 st-image-tkrt-openstlinux-tkrt-stm32mp1-raichu-cubemx_nand_4_256_multivolume.ubi

I manually replaced the file u-boot-stm32mp153a-raichu-cubemx-mx-trusted.stm32 in Yocto's deploy directory with the file produced by compiling U-Boot above, u-boot.stm32.

I then downloaded the TF-A and U-Boot images to the target device using STM32CubeProgrammer. TF-A works fine, it then loads and executes U-Boot, which then hangs at NAND initialization.

I manually added some additional printf() calls in the U-Boot source code to try and figure out where it gets stuck. You can see in the serial output (https://pastebin.com/VgJG6rSF) that it gets stuck while probing the stm32_fmc2_nand driver.

Further digging and many printf's later, I have found the exact place where it stops. nand_base.c:573:

static void nand_wait_status_ready(struct mtd_info *mtd, unsigned long timeo)
{
	register struct nand_chip *chip = mtd_to_nand(mtd);
	u32 time_start;
 u32 current_time;

	timeo = (CONFIG_SYS_HZ * timeo) / 1000;
	time_start = get_timer(0);
 printf("time_start: %d, timeo: %d\n", time_start, timeo);
	while ((current_time= get_timer(time_start)) < timeo) {
 printf("current_time: %d\n", current_time);
		if ((chip->read_byte(mtd) & NAND_STATUS_READY))
			break;
 printf("read_byte() didn't return NAND_STATUS_READY\n");
		WATCHDOG_RESET();
	}
};

chip->read_byte(mtd) calls:

uint8_t nand_read_byte(struct mtd_info *mtd)
{
 printf("nand_read_byte()\n");
	struct nand_chip *chip = mtd_to_nand(mtd);
	return readb(chip->IO_ADDR_R);
}

readb(chip->IO_ADDR_R) essentially reads a byte from address chip->IO_ADDR_R, and chip->IO_ADDR_R is a NULL-pointer.

You can see in the serial output some printf() functions that print the values of chip->IO_ADDR_R and chip->IO_ADDR_W:

chip->chip_size: 0
chip->IO_ADDR_R: 0x0
chip->IO_ADDR_W: 0x0

And this is where I'm currently stuck. The device tree source in stm32mp157c.dtsi (included by my dts) provides the correct addresses:

fmc: nand-controller@58002000 {
 compatible = "st,stm32mp15-fmc2";
 reg = <0x58002000 0x1000>,
 <0x80000000 0x1000>,
 <0x88010000 0x1000>,
 <0x88020000 0x1000>,
 <0x81000000 0x1000>,
 <0x89010000 0x1000>,
 <0x89020000 0x1000>;
 interrupts = <GIC_SPI 48 IRQ_TYPE_LEVEL_HIGH>;
 dmas = <&mdma1 20 0x10 0x12000A02 0x0 0x0 0>,
 <&mdma1 20 0x10 0x12000A08 0x0 0x0 0>,
 <&mdma1 21 0x10 0x12000A0A 0x0 0x0 0>;
 dma-names = "tx", "rx", "ecc";
 clocks = <&rcc FMC_K>;
 resets = <&rcc FMC_R>;
 status = "disabled";
};

In my dts I have:

&fmc{
 u-boot,dm-pre-reloc;
 pinctrl-names = "default", "sleep";
 pinctrl-0 = <&fmc_pins_mx>;
 pinctrl-1 = <&fmc_sleep_pins_mx>;
 status = "okay";

 /* USER CODE BEGIN fmc */
 #address-cells = <1>;
 #size-cells = <0>;

 nand: nand@0 {
 reg = <0>;
 nand-on-flash-bbt;
 /*nand-ecc-mode = "none";*/
 #address-cells = <1>;
 #size-cells = <1>;
 };
 /* USER CODE END fmc */
};

This all looks fine to me. Can someone help me understand why the R/W addresses and chip sizes are all 0?

[Olivier GALLIEN]

Hi @AMurr.2282​

> You can see on line 525 the relevant FMC block. I copy/pasted most of it from stm32mp157c-dk2.dts.

I presume you mean stm32mp157c-ev1.dts since there is no nand device on dk2 right ?

Can you please share nand device reference on your design ? Is it 8 or 16 bits ?

Thx,

Olivier

[AMurr.2282]

Hi @Community member​

Yes sorry, it was stm32mp157c-ev1.dts, not stm32mp157c-dk2.dts.

The exact nand device I'm using is MT29F4G08ABAEAH4-ITS:E TR. It has 8 bits.

[AMurr.2282]

Well, after much debugging and comparing DT source files with other boards, we have found the problem. And it was quite a silly problem.

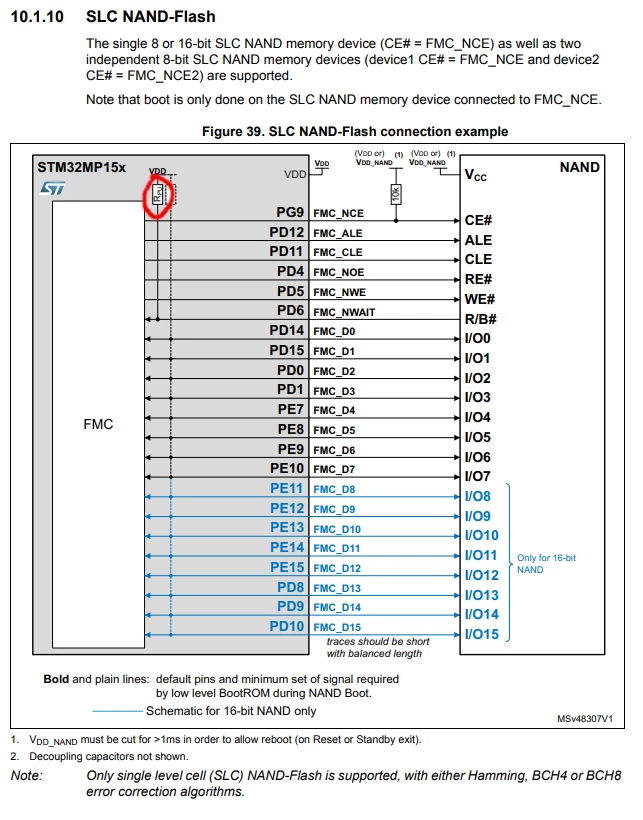

The default pin config from CubeMX does not enable the internal pull-up resistor on the FMC_NWAIT pin. In the getting started guide section 10.1.10 it's hinted at:

https://www.st.com/content/ccc/resource/technical/document/application_note/group1/b7/b5/ca/8e/93/20/42/0e/DM00389996/files/DM00389996.pdf/jcr:content/translations/en.DM00389996.pdf

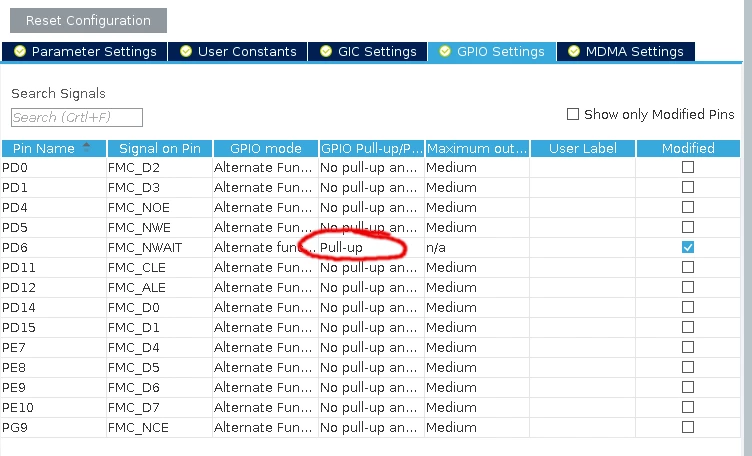

So a heads up: Make sure you enable this option:

Or set bias-pull-up; in the DT source:

fmc_pins_mx: fmc_mx-0 {
 u-boot,dm-pre-reloc;
 pins1 {
 u-boot,dm-pre-reloc;
 pinmux = <STM32_PINMUX('D', 0, AF12)>, /* FMC_D2 */
 <STM32_PINMUX('D', 1, AF12)>, /* FMC_D3 */
 <STM32_PINMUX('D', 4, AF12)>, /* FMC_NOE */
 <STM32_PINMUX('D', 5, AF12)>, /* FMC_NWE */
 <STM32_PINMUX('D', 11, AF12)>, /* FMC_CLE */
 <STM32_PINMUX('D', 12, AF12)>, /* FMC_ALE */
 <STM32_PINMUX('D', 14, AF12)>, /* FMC_D0 */
 <STM32_PINMUX('D', 15, AF12)>, /* FMC_D1 */
 <STM32_PINMUX('E', 7, AF12)>, /* FMC_D4 */
 <STM32_PINMUX('E', 8, AF12)>, /* FMC_D5 */
 <STM32_PINMUX('E', 9, AF12)>, /* FMC_D6 */
 <STM32_PINMUX('E', 10, AF12)>, /* FMC_D7 */
 <STM32_PINMUX('G', 9, AF12)>; /* FMC_NCE */
 bias-disable;
 drive-push-pull;
 slew-rate = <1>;
 };
 pins2 {
 u-boot,dm-pre-reloc;
 pinmux = <STM32_PINMUX('D', 6, AF12)>; /* FMC_NWAIT */
 bias-pull-up;
 };
};

Why the R/W addresses and chip counts are still 0 is unknown. Apparently that's ok?
