qt creater setup for STM32Mp1

[asadullah4571]

how to setup qt creater application for STM32MP157f-Dk2 board , and where is the location of the toolchain location and how to setup qt version .





[Erwan SZYMANSKI]

Hello @asadullah4571 ,
Can you tell me on which OpenSTLinux version you are please ?

As information, on OpenSTLinux v5.1, the support of Qt is made through X-LINUX-QT Expansion Package (https://wiki.st.com/stm32mpu/wiki/X-LINUX-QT_Expansion_Package). In  this article indeed, you have explanations to configure QtCreator IDE.

However, this package is made for STM32MP2x series right now. The support for MP1x series will come in Q4 2024.

If you absolutely need Qt on STM32MP15 before, you can stay on OpenSTLinux v 5.0, and look at the Wiki article here that are still usable (https://wiki.st.com/stm32mpu-ecosystem-v4/wiki/How_to_build_and_use_an_SDK_for_QT)

Kind regards,
Erwan.

[asadullah4571]

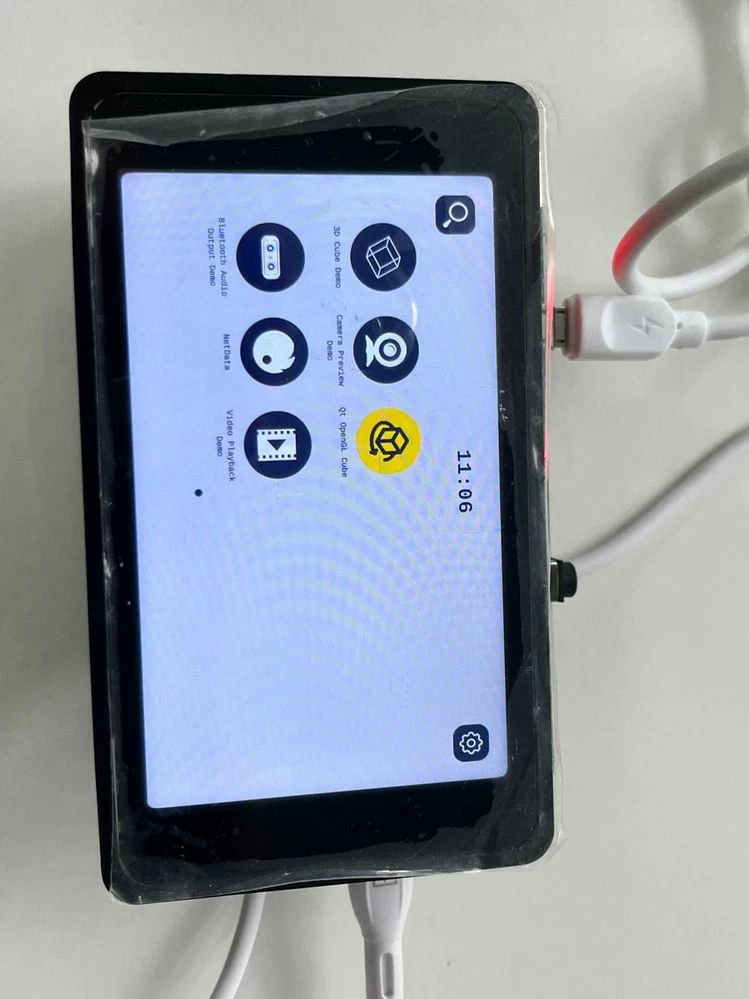

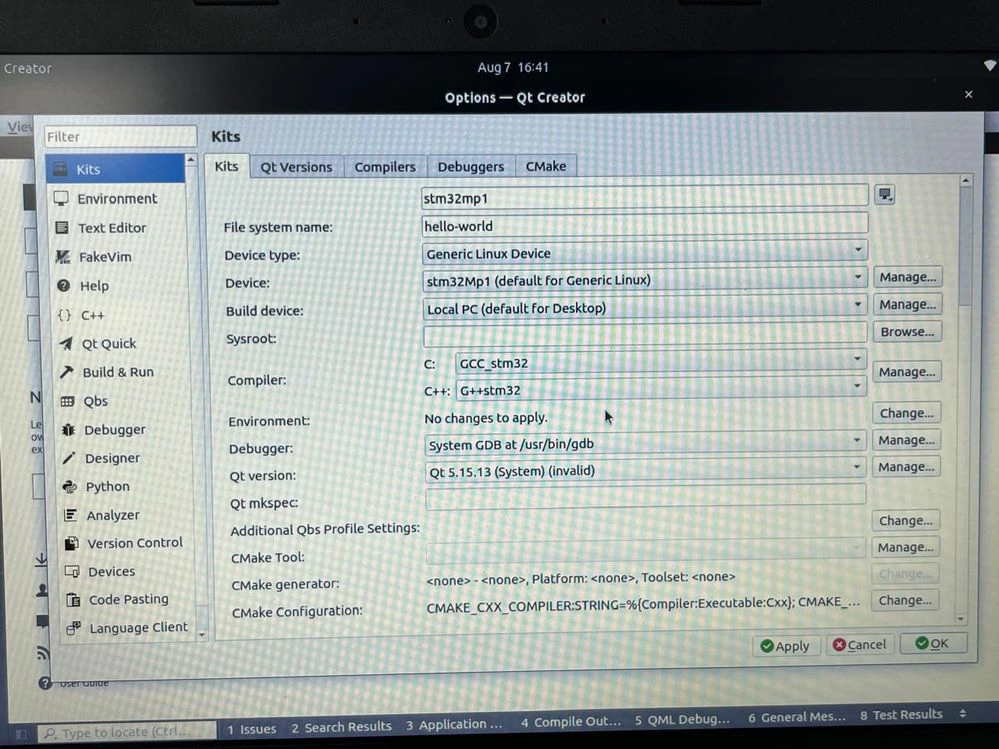

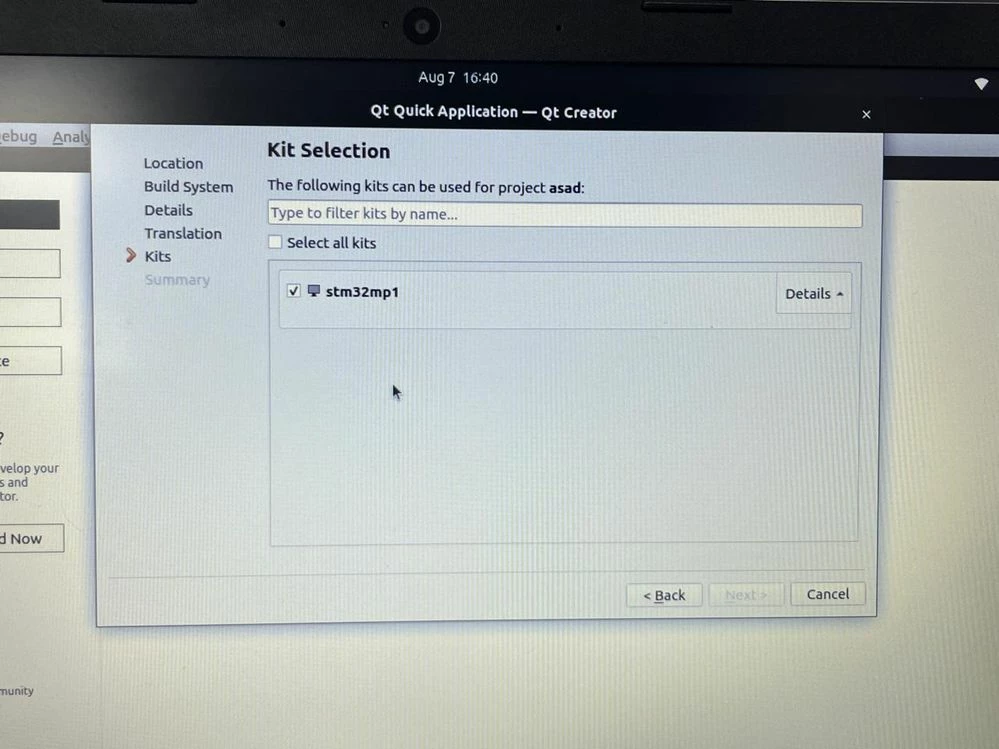

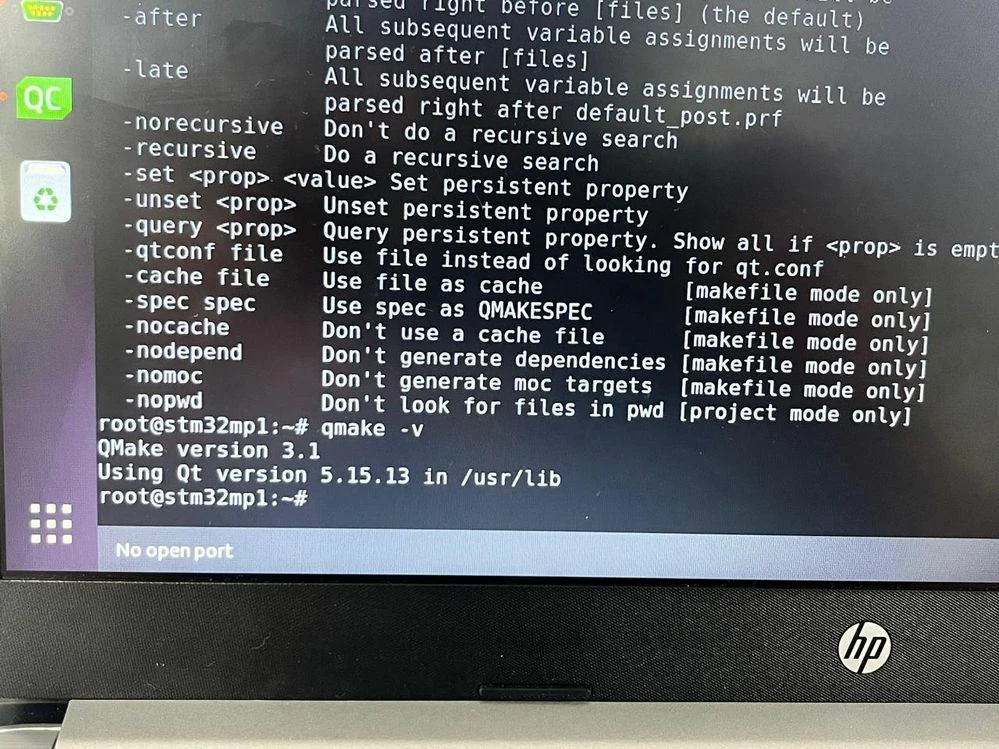

you can see qt cubeopenstlinux distribution with qt layer , you can see my qt versionplease check the settings, gcc , g++ ,and qmake i added from build directoryin this i select the STm32, but the next option not available





i only want to print hello word on my screen using qt, how i can do to that ,please explain me step by step

please

[PPAGE.13]

Hello @asadullah4571

In your kit window, I see "Qt version" item as "invalid".

Could you please go to the Kits -> "Qt Versions" panel and check the "qmake Path" set in the tool is correct.

It should point to qmake SDK tool. Something like:

<Your PC Install path >/SDK/sysroots/x86_64-ostl_sdk-linux/usr/bin/qmake

BR,

Philippe.

[Sharan]

hi i am using stm32mp157d-dk1  how to setup qt creater application

[PPAGE.13]

Hello @Sharan ,

all info should be above.

When setting a Qt creator kit, you need a MP1 SDK.

If the SDK has been generated by yourself with the Distribution Package, please use "asadullah4571" screenshots to configure your own MP1 kit.

If you get the SDK with Developper Package and X-LINUX-Qt SDK add-on, the installation automatically configures Qt creator with the MP1 kit.

Philippe.

[emnarsla]

I was struggling with properly configuring QtCreator for the STM32MP1 SDK generated from the Distribution Package. Turns out Qt provides a script to configure a kit automatically: https://code.qt.io/cgit/yocto/meta-boot2qt.git/tree/meta-boot2qt/files/configure-qtcreator.sh

$ configure-qtcreator.sh --config /opt/st/stm32mp1/5.0.8-snapshot/environment-setup-cortexa7t2hf-neon-vfpv4-ostl-linux-gnueabi --sdktool ~/Qt/Tools/sdktool/libexec/qtcreator/sdktool --name STM32MP1



[PPAGE.13]

Hi,

ST  cannot provide support on Qt property script.

If you want an MP1 Kit already configured in Qt Creator, please use X-LINUX-QT developer package that will install it automatically. Then you can use this kit as a reference and clone your own one targeting your compiled SDK.

Please refer to :

https://wiki.st.com/stm32mpu/wiki/X-LINUX-QT_Developer_Package



Consistent releases to be used:

OpenSTLinux 6.0.0

https://www.st.com/en/embedded-software/stm32mp1dev.html

https://www.st.com/en/embedded-software/stm32mp2dev.html



X-LINUX-QT 2.1.0

https://www.st.com/en/embedded-software/x-linux-qt.html#overview



Philippe.
