SRAM Usage and Address Ranges on STM32MP25x in OpenSTLinux

[drodr]

I'm using the Yocto-based OpenSTLinux embedded software on a STM32MP25x and I don't understand which portion of the SRAM1/2 is free to use at runtime.

Aside from the first 4kBytes of the SRAM1 reserved for OTP shadow, can the rest be fully used, or is it also reserved ?

Additionally, in chapter 2.4.2 of the reference manual (RM0457), it states that SRAM1/2 can be accessed through the following address ranges [0x0A04 0000, 0x0A08 0000[, [0x0E04 0000, 0x0E08 0000[, [0x2004 0000, 0x2008 0000[ and [0x3004 0000, 0x3008 0000[. Why are there four physical addresses for SRAM ? Should Cortex-A35 and Cortex-M33 use specific regions to communicate with each other ?





[PatrickF]

Hi @drodr

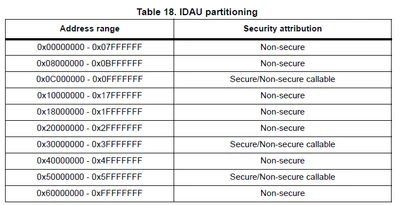

regarding the 4 possible address ranges to access same memories, this is due to the Cortex-M33 address space split between Code and SRAM and secure/non-secure split done with IDAU.
This allows full flexibility for your secure/non-secure code+data applications in a single set of contiguous memories (need to play with different load and execution address in linker).

See PM0264 and RM0457



Regards

[drodr]

Hi @PatrickF

Thank you for your answer !

I don't understand how applications are detected "secure/non-secure". Is there something specific that needs to be done to make them run in one mode or the other?

What do you mean by "need to play with different load and execution address in linker" ?



Regards
