Can STM32MP151 transfer sound via HDMI connector?

  • April 18, 2024
  • 4 replies
  • 3122 views

I'm buildning my own computer by using STM32MP151AAC3.

I'm going to draw lines for the HDMI connector. I have one question: Can I transfer sound via the HDMI cable? For example if I run OpenSTLinux onto the STM32MP151AAC3 processor, and then I connect the HDMI cable and I can see the screen. Will I be able to hear sound too if I surf into Youtube?

Best answer by DMårt

@PatrickF

Hi!

I solved the problem. Now I can hear sound from my SII9022A PHY.

I did not use ASoC Graph Card, instead I used Simple Card inside Linux kernel.

I post the Linux Device Tree in case if some one in the future want to play some music through the SII9022A.



// SPDX-License-Identifier: (GPL-2.0-or-later OR BSD-3-Clause)
/*
 * Copyright (C) 2024, STMicroelectronics - All Rights Reserved
 * Author: STM32CubeMX code generation for STMicroelectronics.
 */

/* For more information on Device Tree configuration, please refer to
 * https://wiki.st.com/stm32mpu/wiki/Category:Device_tree_configuration
 */

/dts-v1/;

#include <dt-bindings/pinctrl/stm32-pinfunc.h>
#include "stm32mp151.dtsi"
#include "stm32mp15xa.dtsi"
#include "stm32mp15xxac-pinctrl.dtsi"
#include "stm32mp15-m4-srm.dtsi"

/* USER CODE BEGIN includes */
#include "stm32mp15-scmi.dtsi"
#include <dt-bindings/gpio/gpio.h>
#include <dt-bindings/mfd/st,stpmic1.h>
/* USER CODE END includes */

/ {
	model = "STMicroelectronics custom STM32CubeMX board - openstlinux-6.1-yocto-mickledore-mpu-v24.06.26";
	compatible = "st,stm32mp151a-stm32-computer-firmware-mx", "st,stm32mp151";

	memory@c0000000 {
		device_type = "memory";
		reg = <0xc0000000 0x20000000>;

		/* USER CODE BEGIN memory */
		/* USER CODE END memory */
	};

	reserved-memory {
		#address-cells = <1>;
		#size-cells = <1>;
		ranges;

		/* USER CODE BEGIN reserved-memory */
		optee@de000000 {
			reg = <0xde000000 0x2000000>;
			no-map;
		};

		mcuram2:mcuram2@10000000{
			compatible = "shared-dma-pool";
			reg = <0x10000000 0x40000>;
			no-map;
		};

		vdev0vring0:vdev0vring0@10040000{
			compatible = "shared-dma-pool";
			reg = <0x10040000 0x1000>;
			no-map;
		};

		vdev0vring1:vdev0vring1@10041000{
			compatible = "shared-dma-pool";
			reg = <0x10041000 0x1000>;
			no-map;
		};

		vdev0buffer:vdev0buffer@10042000{
			compatible = "shared-dma-pool";
			reg = <0x10042000 0x4000>;
			no-map;
		};

		mcu_rsc_table:mcu-rsc-table@10048000{
			compatible = "shared-dma-pool";
			reg = <0x10048000 0x8000>;
			no-map;
		};

		mcuram:mcuram@30000000{
			compatible = "shared-dma-pool";
			reg = <0x30000000 0x40000>;
			no-map;
		};

		retram:retram@38000000{
			compatible = "shared-dma-pool";
			reg = <0x38000000 0x10000>;
			no-map;
		};
		/* USER CODE END reserved-memory */
	};

	/* USER CODE BEGIN root */
	aliases{
		ethernet0 = &ethernet0;
		serial0 = &uart4;
	};

	hdmi:connector{
		compatible = "hdmi-connector";
		#sound-dai-cells = <0>;
		label = "hdmi";
		type = "a";

		port{
			hdmi_connector_in:endpoint{
				remote-endpoint = <&sii9022_out>;
			};
			hdmi_audio_out:endpoit{
				remote-endpoint= <&sii9022_tx_endpoint>;
			};
		};
	};

	sound {
		compatible = "simple-audio-card";
		simple-audio-card,name = "SII9022A HDMI";
		simple-audio-card,format = "i2s";
		/*simple-audio-card,widgets = "Speaker", "External Speaker";
		simple-audio-card,routing = "External Speaker", "LINE_OUT";*/
		simple-audio-card,bitclock-master = <&dailink0_master>;
		simple-audio-card,frame-master = <&dailink0_master>;
		simple-audio-card,mclk-fs = <256>;

		dailink0_master: simple-audio-card,cpu {
			sound-dai = <&i2s2>;
		};

		simple-audio-card,codec {
			sound-dai = <&sii9022A>;
		};
	};

	config {
		u-boot,boot-led = "heartbeat";
		u-boot,error-led = "error";
		u-boot,mmc-env-partition = "u-boot-env";
		st,fastboot-gpios = <&gpioa 13 (GPIO_ACTIVE_LOW | GPIO_PULL_UP)>;
		st,stm32prog-gpios = <&gpioa 14 (GPIO_ACTIVE_LOW | GPIO_PULL_UP)>;
	};

	led{
		compatible = "gpio-leds";

		led-blue{
			label = "heartbeat";
			gpios = <&gpioa 14 GPIO_ACTIVE_LOW>;
			linux,default-trigger = "timer"; /* Change from heartbeat -> timer */
			default-state = "off";
		};

		led-red {
			label = "error";
			gpios = <&gpioa 13 GPIO_ACTIVE_LOW>;
			default-state = "off";
		};
	};

	vin:vin{
		compatible = "regulator-fixed";
		regulator-name = "vin";
		regulator-min-microvolt = <5000000>;
		regulator-max-microvolt = <5000000>;
		regulator-always-on;
	};

	chosen{
		stdout-path = "serial0:115200n8";
	};
	/* USER CODE END root */

	clocks{

		/* USER CODE BEGIN clocks */
		clk_csi: clk-csi {
			#clock-cells = <0>;
			compatible = "fixed-clock";
			clock-frequency = <4000000>;
		};

		clk_hse: clk-hse {
			#clock-cells = <0>;
			compatible = "fixed-clock";
			clock-frequency = <24000000>;
		};

		clk_hsi: clk-hsi {
			#clock-cells = <0>;
			compatible = "fixed-clock";
			clock-frequency = <64000000>;
		};

		clk_lse: clk-lse {
			#clock-cells = <0>;
			compatible = "fixed-clock";
			clock-frequency = <32768>;
		};

		clk_lsi: clk-lsi {
			#clock-cells = <0>;
			compatible = "fixed-clock";
			clock-frequency = <32000>;
		};
		/* USER CODE END clocks */
	};

}; /*root*/

&pinctrl {

	eth1_pins_mx: eth1_mx-0 {
		pins1 {
			pinmux = <STM32_PINMUX('A', 1, AF11)>, /* ETH1_RX_CLK */
					 <STM32_PINMUX('A', 7, AF11)>, /* ETH1_RX_CTL */
					 <STM32_PINMUX('B', 0, AF11)>, /* ETH1_RXD2 */
					 <STM32_PINMUX('C', 4, AF11)>, /* ETH1_RXD0 */
					 <STM32_PINMUX('C', 5, AF11)>, /* ETH1_RXD1 */
					 <STM32_PINMUX('H', 7, AF11)>; /* ETH1_RXD3 */
			bias-disable;
		};
		pins2 {
			pinmux = <STM32_PINMUX('A', 2, AF11)>; /* ETH1_MDIO */
			bias-disable;
			drive-push-pull;
			slew-rate = <0>;
		};
		pins3 {
			pinmux = <STM32_PINMUX('B', 11, AF11)>, /* ETH1_TX_CTL */
					 <STM32_PINMUX('C', 1, AF11)>, /* ETH1_MDC */
					 <STM32_PINMUX('C', 2, AF11)>, /* ETH1_TXD2 */
					 <STM32_PINMUX('E', 2, AF11)>, /* ETH1_TXD3 */
					 <STM32_PINMUX('G', 4, AF11)>, /* ETH1_GTX_CLK */
					 <STM32_PINMUX('G', 5, AF11)>, /* ETH1_CLK125 */
					 <STM32_PINMUX('G', 13, AF11)>, /* ETH1_TXD0 */
					 <STM32_PINMUX('G', 14, AF11)>; /* ETH1_TXD1 */
			bias-disable;
			drive-push-pull;
			slew-rate = <2>;
		};
		pins4 {
			pinmux = <STM32_PINMUX('B', 5, AF0)>; /* ETH1_CLK */
			bias-disable;
			drive-push-pull;
			slew-rate = <1>;
		};
	};

	eth1_sleep_pins_mx: eth1_sleep_mx-0 {
		pins {
			pinmux = <STM32_PINMUX('A', 1, ANALOG)>, /* ETH1_RX_CLK */
					 <STM32_PINMUX('A', 2, ANALOG)>, /* ETH1_MDIO */
					 <STM32_PINMUX('A', 7, ANALOG)>, /* ETH1_RX_CTL */
					 <STM32_PINMUX('B', 0, ANALOG)>, /* ETH1_RXD2 */
					 <STM32_PINMUX('B', 5, ANALOG)>, /* ETH1_CLK */
					 <STM32_PINMUX('B', 11, ANALOG)>, /* ETH1_TX_CTL */
					 <STM32_PINMUX('C', 1, ANALOG)>, /* ETH1_MDC */
					 <STM32_PINMUX('C', 2, ANALOG)>, /* ETH1_TXD2 */
					 <STM32_PINMUX('C', 4, ANALOG)>, /* ETH1_RXD0 */
					 <STM32_PINMUX('C', 5, ANALOG)>, /* ETH1_RXD1 */
					 <STM32_PINMUX('E', 2, ANALOG)>, /* ETH1_TXD3 */
					 <STM32_PINMUX('G', 4, ANALOG)>, /* ETH1_GTX_CLK */
					 <STM32_PINMUX('G', 5, ANALOG)>, /* ETH1_CLK125 */
					 <STM32_PINMUX('G', 13, ANALOG)>, /* ETH1_TXD0 */
					 <STM32_PINMUX('G', 14, ANALOG)>, /* ETH1_TXD1 */
					 <STM32_PINMUX('H', 7, ANALOG)>; /* ETH1_RXD3 */
		};
	};

	hdmi_cec_pins_mx: hdmi_cec_mx-0 {
		pins {
			pinmux = <STM32_PINMUX('B', 6, AF5)>; /* CEC */
			bias-disable;
			drive-open-drain;
			slew-rate = <0>;
		};
	};

	hdmi_cec_sleep_pins_mx: hdmi_cec_sleep_mx-0 {
		pins {
			pinmux = <STM32_PINMUX('B', 6, ANALOG)>; /* CEC */
		};
	};

	i2c1_pins_mx: i2c1_mx-0 {
		pins {
			pinmux = <STM32_PINMUX('D', 12, AF5)>, /* I2C1_SCL */
					 <STM32_PINMUX('D', 13, AF5)>; /* I2C1_SDA */
			bias-disable;
			drive-open-drain;
			slew-rate = <0>;
		};
	};

	i2c1_sleep_pins_mx: i2c1_sleep_mx-0 {
		pins {
			pinmux = <STM32_PINMUX('D', 12, ANALOG)>, /* I2C1_SCL */
					 <STM32_PINMUX('D', 13, ANALOG)>; /* I2C1_SDA */
		};
	};

	i2c4_pins_mx: i2c4_mx-0 {
		pins {
			pinmux = <STM32_PINMUX('F', 14, AF4)>, /* I2C4_SCL */
					 <STM32_PINMUX('F', 15, AF4)>; /* I2C4_SDA */
			bias-disable;
			drive-open-drain;
			slew-rate = <0>;
		};
	};

	i2c4_sleep_pins_mx: i2c4_sleep_mx-0 {
		pins {
			pinmux = <STM32_PINMUX('F', 14, ANALOG)>, /* I2C4_SCL */
					 <STM32_PINMUX('F', 15, ANALOG)>; /* I2C4_SDA */
		};
	};

	i2s2_pins_mx: i2s2_mx-0 {
		pins {
			pinmux = <STM32_PINMUX('A', 9, AF5)>, /* I2S2_CK */
					 <STM32_PINMUX('B', 12, AF5)>, /* I2S2_WS */
					 <STM32_PINMUX('I', 3, AF5)>; /* I2S2_SDO */
			bias-disable;
			drive-push-pull;
			slew-rate = <1>;
		};
	};

	i2s2_sleep_pins_mx: i2s2_sleep_mx-0 {
		pins {
			pinmux = <STM32_PINMUX('A', 9, ANALOG)>, /* I2S2_CK */
					 <STM32_PINMUX('B', 12, ANALOG)>, /* I2S2_WS */
					 <STM32_PINMUX('I', 3, ANALOG)>; /* I2S2_SDO */
		};
	};

	ltdc_pins_mx: ltdc_mx-0 {
		pins1 {
			pinmux = <STM32_PINMUX('A', 3, AF14)>, /* LTDC_B5 */
					 <STM32_PINMUX('B', 1, AF14)>, /* LTDC_G0 */
					 <STM32_PINMUX('B', 8, AF14)>, /* LTDC_B6 */
					 <STM32_PINMUX('C', 0, AF14)>, /* LTDC_R5 */
					 <STM32_PINMUX('D', 8, AF14)>, /* LTDC_B7 */
					 <STM32_PINMUX('D', 9, AF14)>, /* LTDC_B0 */
					 <STM32_PINMUX('D', 10, AF14)>, /* LTDC_B3 */
					 <STM32_PINMUX('E', 6, AF14)>, /* LTDC_G1 */
					 <STM32_PINMUX('E', 15, AF14)>, /* LTDC_R7 */
					 <STM32_PINMUX('F', 10, AF14)>, /* LTDC_DE */
					 <STM32_PINMUX('G', 10, AF14)>, /* LTDC_B2 */
					 <STM32_PINMUX('G', 12, AF14)>, /* LTDC_B1 */
					 <STM32_PINMUX('H', 2, AF14)>, /* LTDC_R0 */
					 <STM32_PINMUX('H', 3, AF14)>, /* LTDC_R1 */
					 <STM32_PINMUX('H', 8, AF14)>, /* LTDC_R2 */
					 <STM32_PINMUX('H', 9, AF14)>, /* LTDC_R3 */
					 <STM32_PINMUX('H', 10, AF14)>, /* LTDC_R4 */
					 <STM32_PINMUX('H', 12, AF14)>, /* LTDC_R6 */
					 <STM32_PINMUX('H', 13, AF14)>, /* LTDC_G2 */
					 <STM32_PINMUX('H', 14, AF14)>, /* LTDC_G3 */
					 <STM32_PINMUX('H', 15, AF14)>, /* LTDC_G4 */
					 <STM32_PINMUX('I', 0, AF14)>, /* LTDC_G5 */
					 <STM32_PINMUX('I', 1, AF14)>, /* LTDC_G6 */
					 <STM32_PINMUX('I', 2, AF14)>, /* LTDC_G7 */
					 <STM32_PINMUX('I', 4, AF14)>, /* LTDC_B4 */
					 <STM32_PINMUX('I', 9, AF14)>, /* LTDC_VSYNC */
					 <STM32_PINMUX('I', 10, AF14)>; /* LTDC_HSYNC */
			bias-disable;
			drive-push-pull;
			slew-rate = <0>;
		};
		pins2 {
			pinmux = <STM32_PINMUX('G', 7, AF14)>; /* LTDC_CLK */
			bias-disable;
			drive-push-pull;
			slew-rate = <1>;
		};
	};

	ltdc_sleep_pins_mx: ltdc_sleep_mx-0 {
		pins {
			pinmux = <STM32_PINMUX('A', 3, ANALOG)>, /* LTDC_B5 */
					 <STM32_PINMUX('B', 1, ANALOG)>, /* LTDC_G0 */
					 <STM32_PINMUX('B', 8, ANALOG)>, /* LTDC_B6 */
					 <STM32_PINMUX('C', 0, ANALOG)>, /* LTDC_R5 */
					 <STM32_PINMUX('D', 8, ANALOG)>, /* LTDC_B7 */
					 <STM32_PINMUX('D', 9, ANALOG)>, /* LTDC_B0 */
					 <STM32_PINMUX('D', 10, ANALOG)>, /* LTDC_B3 */
					 <STM32_PINMUX('E', 6, ANALOG)>, /* LTDC_G1 */
					 <STM32_PINMUX('E', 15, ANALOG)>, /* LTDC_R7 */
					 <STM32_PINMUX('F', 10, ANALOG)>, /* LTDC_DE */
					 <STM32_PINMUX('G', 7, ANALOG)>, /* LTDC_CLK */
					 <STM32_PINMUX('G', 10, ANALOG)>, /* LTDC_B2 */
					 <STM32_PINMUX('G', 12, ANALOG)>, /* LTDC_B1 */
					 <STM32_PINMUX('H', 2, ANALOG)>, /* LTDC_R0 */
					 <STM32_PINMUX('H', 3, ANALOG)>, /* LTDC_R1 */
					 <STM32_PINMUX('H', 8, ANALOG)>, /* LTDC_R2 */
					 <STM32_PINMUX('H', 9, ANALOG)>, /* LTDC_R3 */
					 <STM32_PINMUX('H', 10, ANALOG)>, /* LTDC_R4 */
					 <STM32_PINMUX('H', 12, ANALOG)>, /* LTDC_R6 */
					 <STM32_PINMUX('H', 13, ANALOG)>, /* LTDC_G2 */
					 <STM32_PINMUX('H', 14, ANALOG)>, /* LTDC_G3 */
					 <STM32_PINMUX('H', 15, ANALOG)>, /* LTDC_G4 */
					 <STM32_PINMUX('I', 0, ANALOG)>, /* LTDC_G5 */
					 <STM32_PINMUX('I', 1, ANALOG)>, /* LTDC_G6 */
					 <STM32_PINMUX('I', 2, ANALOG)>, /* LTDC_G7 */
					 <STM32_PINMUX('I', 4, ANALOG)>, /* LTDC_B4 */
					 <STM32_PINMUX('I', 9, ANALOG)>, /* LTDC_VSYNC */
					 <STM32_PINMUX('I', 10, ANALOG)>; /* LTDC_HSYNC */
		};
	};

	sdmmc2_pins_mx: sdmmc2_mx-0 {
		pins1 {
			pinmux = <STM32_PINMUX('A', 8, AF9)>, /* SDMMC2_D4 */
					 <STM32_PINMUX('B', 3, AF9)>, /* SDMMC2_D2 */
					 <STM32_PINMUX('B', 4, AF9)>, /* SDMMC2_D3 */
					 <STM32_PINMUX('B', 9, AF10)>, /* SDMMC2_D5 */
					 <STM32_PINMUX('B', 15, AF9)>, /* SDMMC2_D1 */
					 <STM32_PINMUX('C', 7, AF10)>, /* SDMMC2_D7 */
					 <STM32_PINMUX('E', 5, AF9)>; /* SDMMC2_D6 */
			bias-disable;
			drive-push-pull;
			slew-rate = <1>;
		};
		pins2 {
			pinmux = <STM32_PINMUX('B', 14, AF9)>, /* SDMMC2_D0 */
					 <STM32_PINMUX('E', 3, AF9)>, /* SDMMC2_CK */
					 <STM32_PINMUX('G', 6, AF10)>; /* SDMMC2_CMD */
			bias-pull-up;
			drive-push-pull;
			slew-rate = <1>;
		};
	};

	sdmmc2_opendrain_pins_mx: sdmmc2_opendrain_mx-0 {
		pins1 {
			pinmux = <STM32_PINMUX('A', 8, AF9)>, /* SDMMC2_D4 */
					 <STM32_PINMUX('B', 3, AF9)>, /* SDMMC2_D2 */
					 <STM32_PINMUX('B', 4, AF9)>, /* SDMMC2_D3 */
					 <STM32_PINMUX('B', 9, AF10)>, /* SDMMC2_D5 */
					 <STM32_PINMUX('B', 15, AF9)>, /* SDMMC2_D1 */
					 <STM32_PINMUX('C', 7, AF10)>, /* SDMMC2_D7 */
					 <STM32_PINMUX('E', 5, AF9)>; /* SDMMC2_D6 */
			bias-disable;
			drive-push-pull;
			slew-rate = <1>;
		};
		pins2 {
			pinmux = <STM32_PINMUX('B', 14, AF9)>, /* SDMMC2_D0 */
					 <STM32_PINMUX('E', 3, AF9)>; /* SDMMC2_CK */
			bias-pull-up;
			drive-push-pull;
			slew-rate = <1>;
		};
		pins3 {
			pinmux = <STM32_PINMUX('G', 6, AF10)>; /* SDMMC2_CMD */
			bias-pull-up;
			drive-open-drain;
			slew-rate = <1>;
		};
	};

	sdmmc2_sleep_pins_mx: sdmmc2_sleep_mx-0 {
		pins {
			pinmux = <STM32_PINMUX('A', 8, ANALOG)>, /* SDMMC2_D4 */
					 <STM32_PINMUX('B', 3, ANALOG)>, /* SDMMC2_D2 */
					 <STM32_PINMUX('B', 4, ANALOG)>, /* SDMMC2_D3 */
					 <STM32_PINMUX('B', 9, ANALOG)>, /* SDMMC2_D5 */
					 <STM32_PINMUX('B', 14, ANALOG)>, /* SDMMC2_D0 */
					 <STM32_PINMUX('B', 15, ANALOG)>, /* SDMMC2_D1 */
					 <STM32_PINMUX('C', 7, ANALOG)>, /* SDMMC2_D7 */
					 <STM32_PINMUX('E', 3, ANALOG)>, /* SDMMC2_CK */
					 <STM32_PINMUX('E', 5, ANALOG)>, /* SDMMC2_D6 */
					 <STM32_PINMUX('G', 6, ANALOG)>; /* SDMMC2_CMD */
		};
	};

	uart4_pins_mx: uart4_mx-0 {
		pins1 {
			pinmux = <STM32_PINMUX('B', 2, AF8)>; /* UART4_RX */
			bias-pull-up;
		};
		pins2 {
			pinmux = <STM32_PINMUX('G', 11, AF6)>; /* UART4_TX */
			bias-pull-up;
			drive-push-pull;
			slew-rate = <0>;
		};
	};

	uart4_idle_pins_mx: uart4_idle_mx-0 {
		pins1 {
			pinmux = <STM32_PINMUX('B', 2, AF8)>; /* UART4_RX */
			bias-pull-up;
		};
		pins2 {
			pinmux = <STM32_PINMUX('G', 11, ANALOG)>; /* UART4_TX */
			bias-pull-up;
		};
	};

	uart4_sleep_pins_mx: uart4_sleep_mx-0 {
		pins {
			pinmux = <STM32_PINMUX('B', 2, ANALOG)>, /* UART4_RX */
					 <STM32_PINMUX('G', 11, ANALOG)>; /* UART4_TX */
			bias-pull-up;
		};
	};

	usb_otg_hs_pins_mx: usb_otg_hs_mx-0 {
		pins {
			pinmux = <STM32_PINMUX('A', 10, ANALOG)>; /* USB_OTG_HS_ID */
		};
	};

	usb_otg_hs_sleep_pins_mx: usb_otg_hs_sleep_mx-0 {
		pins {
			pinmux = <STM32_PINMUX('A', 10, ANALOG)>; /* USB_OTG_HS_ID */
		};
	};

	/* USER CODE BEGIN pinctrl */
	/* USER CODE END pinctrl */
};

&pinctrl_z {

	/* USER CODE BEGIN pinctrl_z */
	/* USER CODE END pinctrl_z */
};

&m4_rproc{
	status = "disabled";

	/* USER CODE BEGIN m4_rproc */
	resets = <&scmi_reset RST_SCMI_MCU>, <&scmi_reset RST_SCMI_MCU_HOLD_BOOT>;
	reset-names = "mcu_rst", "hold_boot";
	/*/delete-property/ st,syscfg-holdboot;*/
	mboxes = <&ipcc 0>, <&ipcc 1>, <&ipcc 2>, <&ipcc 3>;
	mbox-names = "vq0", "vq1", "shutdown", "detach";
	memory-region = <&retram>, <&mcuram>, <&mcuram2>, <&vdev0vring0>, <&vdev0vring1>, <&vdev0buffer>, <&mcu_rsc_table>;
	interrupt-parent = <&exti>;
	interrupts = <68 1>;
	wakeup-source;
	/* USER CODE END m4_rproc */

	m4_system_resources{
		status = "disabled";

		/* USER CODE BEGIN m4_system_resources */
		/* USER CODE END m4_system_resources */
	};
};

&bsec{
	status = "okay";

	/* USER CODE BEGIN bsec */
	/* USER CODE END bsec */
};

&cec{
	pinctrl-names = "default", "sleep";
	pinctrl-0 = <&hdmi_cec_pins_mx>;
	pinctrl-1 = <&hdmi_cec_sleep_pins_mx>;
	status = "okay";

	/* USER CODE BEGIN cec */
	/* USER CODE END cec */
};

&dma1{
	status = "okay";

	/* USER CODE BEGIN dma1 */
	resets = <&scmi_reset RST_SCMI_MDMA>;
	/* USER CODE END dma1 */
};

&dma2{
	status = "disabled";

	/* USER CODE BEGIN dma2 */
	/* USER CODE END dma2 */
};

&dmamux1{
	status = "okay";

	dma-masters = <&dma1>;
	dma-channels = <8>;

	/* USER CODE BEGIN dmamux1 */
	/* USER CODE END dmamux1 */
};

&ethernet0{
	pinctrl-names = "default", "sleep";
	pinctrl-0 = <&eth1_pins_mx>;
	pinctrl-1 = <&eth1_sleep_pins_mx>;
	status = "okay";

	/* USER CODE BEGIN ethernet0 */
	phy-mode = "rgmii-id";
	max-speed = <1000>;
	phy-handle = <&phy0>;
	nvmem-cells = <&ethernet_mac_address>;
	nvmem-cell-names = "mac-address";

	mdio{
		#address-cells = <1>;
		#size-cells = <0>;
		compatible = "snps,dwmac-mdio";

		phy0:ethernet-phy@0{
			reg = <0>;
		};
	};
	/* USER CODE END ethernet0 */
};

&hsem{
	status = "okay";

	/* USER CODE BEGIN hsem */
	/* USER CODE END hsem */
};

&i2c1{
	pinctrl-names = "default", "sleep";
	pinctrl-0 = <&i2c1_pins_mx>;
	pinctrl-1 = <&i2c1_sleep_pins_mx>;
	status = "okay";

	/* USER CODE BEGIN i2c1 */
	/* USER CODE END i2c1 */
};

&i2c4{
	pinctrl-names = "default", "sleep";
	pinctrl-0 = <&i2c4_pins_mx>;
	pinctrl-1 = <&i2c4_sleep_pins_mx>;
	status = "okay";

	/* USER CODE BEGIN i2c4 */
	clocks = <&scmi_clk CK_SCMI_I2C4>;
	resets = <&scmi_reset RST_SCMI_I2C4>;
	i2c-scl-rising-time-ns = <185>;
	i2c-scl-falling-time-ns = <20>;
	clock-frequency = <400000>;
	/delete-property/ dmas;
	/delete-property/ dma-names;

	sii9022A: hdmi-transmitter@39{
		compatible = "sil,sii9022";
		reg = <0x39>;
		iovcc-supply = <&v3v3_hdmi>;
		cvcc12-supply = <&v1v2_hdmi>;
		reset-gpios = <&gpioe 8 GPIO_ACTIVE_LOW>;
		interrupts = <1 IRQ_TYPE_EDGE_FALLING>;
		interrupt-parent = <&gpiog>;
		#sound-dai-cells = <0>;

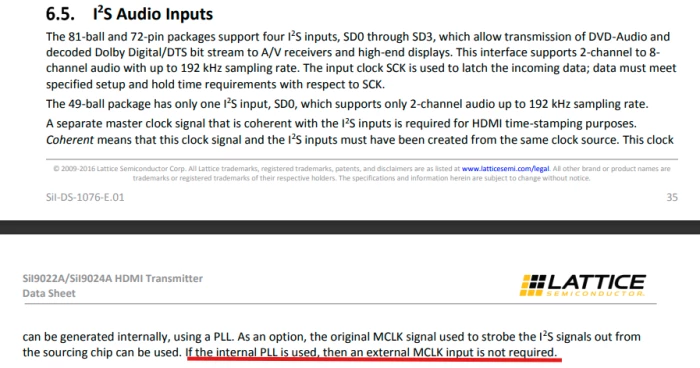

		sil,i2s-data-lanes = <0>;
		/*clocks = <&mclk>;
		clock-names = "mclk";*/
		status = "okay";

		ports{
			#address-cells = <1>;
			#size-cells = <0>;

			port@0{
				reg = <0>;

				sii9022_in:endpoint{
					remote-endpoint = <&ltdc_ep0_out>;
				};
			};

			port@1{
				reg = <1>;

				sii9022_out:endpoint{
					remote-endpoint = <&hdmi_connector_in>;
				};
			};

			port@3{
				reg = <3>;

				sii9022_tx_endpoint:endpoint{
					remote-endpoint = <&i2s2_endpoint>;
				};
			};
		};
	};

	pmic:stpmic@33{
		compatible = "st,stpmic1";
		reg = <0x33>;
		/*interrupts-extended = <&gpioa 0 IRQ_TYPE_EDGE_FALLING>;*/
		interrupts-extended = <&exti 55 IRQ_TYPE_EDGE_FALLING>;
		interrupt-controller;
		#interrupt-cells = <2>;
		status = "okay";

		regulators{
			compatible = "st,stpmic1-regulators";
			buck1-supply = <&vin>;
			buck2-supply = <&vin>;
			buck3-supply = <&vin>;
			buck4-supply = <&vin>;
			/*ldo1-supply = <&v3v3>;*/
			ldo2-supply = <&vin>;
			ldo3-supply = <&vdd_ddr>;
			ldo4-supply = <&vin>;
			ldo5-supply = <&vin>;
			ldo6-supply = <&v3v3>;
			vref_ddr-supply = <&vin>;
			/*boost-supply = <&vin>;
			pwr_sw1-supply = <&bst_out>;
			pwr_sw2-supply = <&bst_out>;*/

			vddcore:buck1{
				regulator-name = "vddcore";
				regulator-min-microvolt = <1200000>;
				regulator-max-microvolt = <1350000>;
				regulator-always-on;
				regulator-initial-mode = <0>;
				regulator-over-current-protection;
			};

			vdd_ddr:buck2{
				regulator-name = "vdd_ddr";
				regulator-min-microvolt = <1350000>;
				regulator-max-microvolt = <1350000>;
				regulator-always-on;
				regulator-initial-mode = <0>;
				regulator-over-current-protection;
			};

			vdd:buck3{
				regulator-name = "vdd";
				regulator-min-microvolt = <3300000>;
				regulator-max-microvolt = <3300000>;
				regulator-always-on;
				st,mask-reset;
				regulator-initial-mode = <0>;
				regulator-over-current-protection;
			};

			v3v3:buck4{
				regulator-name = "v3v3";
				regulator-min-microvolt = <3300000>;
				regulator-max-microvolt = <3300000>;
				regulator-always-on;
				regulator-over-current-protection;
				regulator-initial-mode = <0>;
			};

			/*
			v1v8_audio:ldo1{
				regulator-name = "v1v8_audio";
				regulator-min-microvolt = <1800000>;
				regulator-max-microvolt = <1800000>;
				regulator-always-on;
				interrupts = <IT_CURLIM_LDO1 0>;
			};*/

			v3v3_hdmi:ldo2{
				regulator-name = "v3v3_hdmi";
				regulator-min-microvolt = <3300000>;
				regulator-max-microvolt = <3300000>;
				regulator-always-on;
				interrupts = <IT_CURLIM_LDO2 0>;
			};

			vtt_ddr:ldo3{
				regulator-name = "vtt_ddr";
				regulator-min-microvolt = <500000>;
				regulator-max-microvolt = <750000>;
				regulator-always-on;
				regulator-over-current-protection;
			};

			vdd_usb:ldo4{
				regulator-name = "vdd_usb";
				interrupts = <IT_CURLIM_LDO4 0>;
			};

			vdda:ldo5{
				regulator-name = "vdda";
				regulator-min-microvolt = <2900000>;
				regulator-max-microvolt = <2900000>;
				interrupts = <IT_CURLIM_LDO5 0>;
				regulator-boot-on;
			};

			v1v2_hdmi:ldo6{
				regulator-name = "v1v2_hdmi";
				regulator-min-microvolt = <1200000>;
				regulator-max-microvolt = <1200000>;
				regulator-always-on;
				interrupts = <IT_CURLIM_LDO6 0>;
			};

			vref_ddr:vref-ddr{
				regulator-name = "vref_ddr";
				regulator-always-on;
			};

			/*
			bst_out:boost{
				regulator-name = "bst_out";
				interrupts = <IT_OCP_BOOST 0>;
			};

			vbus_otg:pwr-sw1{
				regulator-name = "vbus_otg";
				interrupts = <IT_OCP_OTG 0>;
			};

			vbus_sw:pwr-sw2{
				regulator-name = "vbus_sw";
				interrupts = <IT_OCP_SWOUT 0>;
				regulator-active-discharge = <1>;
			};
			*/
		};

		onkey{
			compatible = "st,stpmic1-onkey";
			interrupts = <IT_PONKEY_F 0>, <IT_PONKEY_R 0>;
			interrupt-names = "onkey-falling", "onkey-rising";
			power-off-time-sec = <10>;
			status = "okay";
		};
	};
	/* USER CODE END i2c4 */
};

&i2s2{
	pinctrl-names = "default", "sleep";
	pinctrl-0 = <&i2s2_pins_mx>;
	pinctrl-1 = <&i2s2_sleep_pins_mx>;
	status = "okay";

	/* USER CODE BEGIN i2s2 */
	clocks = <&rcc SPI2>, <&rcc SPI2_K>, <&rcc PLL3_Q>, <&rcc PLL3_R>;
	clock-names = "pclk", "i2sclk", "x8k", "x11k";

	i2s2_port:port{
		i2s2_endpoint:endpoint{
			remote-endpoint = <&sii9022_tx_endpoint>;
			dai-format = "i2s";
			mclk-fs = <256>;
		};
	};
	/* USER CODE END i2s2 */
};

&ltdc{
	pinctrl-names = "default", "sleep";
	pinctrl-0 = <&ltdc_pins_mx>;
	pinctrl-1 = <&ltdc_sleep_pins_mx>;
	status = "okay";

	/* USER CODE BEGIN ltdc */
	port{

		ltdc_ep0_out:endpoint{
			remote-endpoint = <&sii9022_in>;
		};
	};
	/* USER CODE END ltdc */
};

&m4_dma2{
	status = "okay";

	/* USER CODE BEGIN m4_dma2 */
	/* USER CODE END m4_dma2 */
};

&mdma1{
	status = "okay";

	/* USER CODE BEGIN mdma1 */
	/* USER CODE END mdma1 */
};

&pwr_regulators{
	status = "okay";

	/* USER CODE BEGIN pwr_regulators */
	vdd-supply = <&vdd>;
	vdd_3v3_usbfs-supply = <&vdd_usb>;
	/* USER CODE END pwr_regulators */
};

&rcc{
	status = "okay";

	/* USER CODE BEGIN rcc */
	compatible = "st,stm32mp1-rcc-secure", "syscon";
	clock-names = "hse", "hsi", "csi", "lse", "lsi";
	clocks = <&scmi_clk CK_SCMI_HSE>,
		 <&scmi_clk CK_SCMI_HSI>,
		 <&scmi_clk CK_SCMI_CSI>,
		 <&scmi_clk CK_SCMI_LSE>,
		 <&scmi_clk CK_SCMI_LSI>;
	/* USER CODE END rcc */
};

&rng1{
	status = "okay";

	/* USER CODE BEGIN rng1 */
	clocks = <&scmi_clk CK_SCMI_RNG1>;
	resets = <&scmi_reset RST_SCMI_RNG1>;
	/* USER CODE END rng1 */
};

&rtc{
	status = "okay";

	/* USER CODE BEGIN rtc */
	clocks = <&scmi_clk CK_SCMI_RTCAPB>, <&scmi_clk CK_SCMI_RTC>;
	/* USER CODE END rtc */
};

&sdmmc2{
	pinctrl-names = "default", "opendrain", "sleep";
	pinctrl-0 = <&sdmmc2_pins_mx>;
	pinctrl-1 = <&sdmmc2_opendrain_pins_mx>;
	pinctrl-2 = <&sdmmc2_sleep_pins_mx>;
	status = "okay";

	/* USER CODE BEGIN sdmmc2 */
	non-removable;
	no-sd;
	no-sdio;
	st,neg-edge;
	bus-width = <8>;
	vmmc-supply = <&v3v3>;
	vqmmc-supply = <&vdd>;
	mmc-ddr-3_3v;
	/* USER CODE END sdmmc2 */
};

&tamp{
	status = "okay";

	/* USER CODE BEGIN tamp */
	/* USER CODE END tamp */
};

&uart4{
	pinctrl-names = "default", "idle", "sleep";
	pinctrl-0 = <&uart4_pins_mx>;
	pinctrl-1 = <&uart4_idle_pins_mx>;
	pinctrl-2 = <&uart4_sleep_pins_mx>;
	status = "okay";

	/* USER CODE BEGIN uart4 */
	/delete-property/ dmas;
	/delete-property/ dma-names;
	u-boot,dm-pre-reloc;
	/* USER CODE END uart4 */
};

&usbh_ehci{
	status = "okay";

	/* USER CODE BEGIN usbh_ehci */
	phys = <&usbphyc_port0>;
	#address-cells = <1>;
	#size-cells = <0>;
	/* onboard HUB */
	hub@1 {
		compatible = "usb424,2514";
		reg = <1>;
		vdd-supply = <&v3v3>;
	};
	/* USER CODE END usbh_ehci */
};

&usbh_ohci{
	status = "okay";

	/* USER CODE BEGIN usbh_ohci */
	/* USER CODE END usbh_ohci */
};

&usbotg_hs{
	pinctrl-names = "default", "sleep";
	pinctrl-0 = <&usb_otg_hs_pins_mx>;
	pinctrl-1 = <&usb_otg_hs_sleep_pins_mx>;
	status = "okay";

	/* USER CODE BEGIN usbotg_hs */
	phys = <&usbphyc_port1 0>;
	phy-names = "usb2-phy";
	usb-role-switch;
 u-boot,dm-pre-reloc;
 u-boot,force-b-session-valid;
 hnp-srp-disable;
 dr_mode = "peripheral";
	/* USER CODE END usbotg_hs */
};

&usbphyc{
	status = "okay";

	/* USER CODE BEGIN usbphyc */
	phy-supply = <&vdd_usb>;
	/* USER CODE END usbphyc */
};

&usbphyc_port0{
	status = "okay";

	/* USER CODE BEGIN usbphyc_port0 */
	phy-supply = <&vdd_usb>;
	st,tune-hs-dc-level = <2>;
	st,enable-fs-rftime-tuning;
	st,enable-hs-rftime-reduction;
	st,trim-hs-current = <15>;
	st,trim-hs-impedance = <1>;
	st,tune-squelch-level = <3>;
	st,tune-hs-rx-offset = <2>;
	st,no-lsfs-sc;
	/* USER CODE END usbphyc_port0 */
};

&usbphyc_port1{
	status = "okay";

	/* USER CODE BEGIN usbphyc_port1 */
	phy-supply = <&vdd_usb>;
	st,tune-hs-dc-level = <2>;
	st,enable-fs-rftime-tuning;
	st,enable-hs-rftime-reduction;
	st,trim-hs-current = <15>;
	st,trim-hs-impedance = <1>;
	st,tune-squelch-level = <3>;
	st,tune-hs-rx-offset = <2>;
	st,no-lsfs-sc;
	/* USER CODE END usbphyc_port1 */
};

/* USER CODE BEGIN addons */
/*
&arm_wdt{
	timeout-sec = <32>;
	status = "okay";
};
*/
&cpu0 {
	cpu-supply = <&vddcore>;
	clocks = <&scmi_clk CK_SCMI_MPU>;
};

&uart4_pins_mx {
	u-boot,dm-pre-reloc;
	pins1 {
		u-boot,dm-pre-reloc;
	};
	pins2 {
		u-boot,dm-pre-reloc;
	};
};
&gpioz {
	clocks = <&scmi_clk CK_SCMI_GPIOZ>;
};
/* USER CODE END addons */

4 replies

PatrickF
PatrickF
Technical Moderator
April 19, 2024

Hi @DMårt

note that performance of STM32MP151A as general purpose 'computer' might be deceptive. I think you could forget Youtube video thru HTML browsing (e.g. no high-resolution capable and only SW video decoder).

Anyway, no issue to output audio on HDMI, please refer to STM32MP157F-DK2 reference design.

Regards.

In order to give better visibility on the answered topics, please click on 'Accept as Solution' on the reply which solved your issue or answered your question.NEW ! Sidekick STM32 AI agent, see here
D
DMårtAuthor
Lead
April 20, 2024

@PatrickF

Thank you for your reply.

I have no plats to have that STM32MP151AAC3 as a general purpose computer. But I have plans to have a GUI application onto it, written in C or C++ or Java.

Is that possible? 3D or 2D.

STM32MP151AAC3 custom board with STM32-OS as operating system: https://github.com/DanielMartensson/STM32-ComputerSTM32MP257FAK3 custom board with STM64-OS as operating system: https://github.com/DanielMartensson/STM64-Computer
PatrickF
PatrickF
Technical Moderator
April 22, 2024

Hi,

no issue to have nice GUI with STM32MP151.

3D is possible, but without GPU and with single-core Cortex-A7, might not be best performances.

Regards.

In order to give better visibility on the answered topics, please click on 'Accept as Solution' on the reply which solved your issue or answered your question.NEW ! Sidekick STM32 AI agent, see here
D
DMårtAuthor
Lead
October 26, 2024

Hi @PatrickF

Note! What you are refering to is not the HDMI PHY.

You refering to another IC chip.

The linux kernel does not support sii9022A without MCLK.

I get these debug messages from sii902x.c https://github.com/torvalds/linux/blob/master/drivers/gpu/drm/bridge/sii902x.c because my device requries MCLK. I have not routed that track from my MCU to the PHY. So sound won't work for the moment until sii902x.c supports PLL as a clock instead of only MCLK.





 if (daifmt->bit_clk_provider || daifmt->frame_clk_provider) {
 dev_dbg(dev, "%s: I2S clock provider mode not supported\n", __func__); <--------------------------
 return -EINVAL;
 }

 switch (daifmt->fmt) {
 case HDMI_I2S:
 i2s_config_reg |= SII902X_TPI_I2S_FIRST_BIT_SHIFT_YES |
 SII902X_TPI_I2S_SD_JUSTIFY_LEFT;
 break;
 case HDMI_RIGHT_J:
 i2s_config_reg |= SII902X_TPI_I2S_SD_JUSTIFY_RIGHT;
 break;
 case HDMI_LEFT_J:
 i2s_config_reg |= SII902X_TPI_I2S_SD_JUSTIFY_LEFT;
 break;
 default:
 dev_dbg(dev, "%s: Unsupported i2s format %u\n", __func__, daifmt->fmt); <--------------------------------
 return -EINVAL;
 }

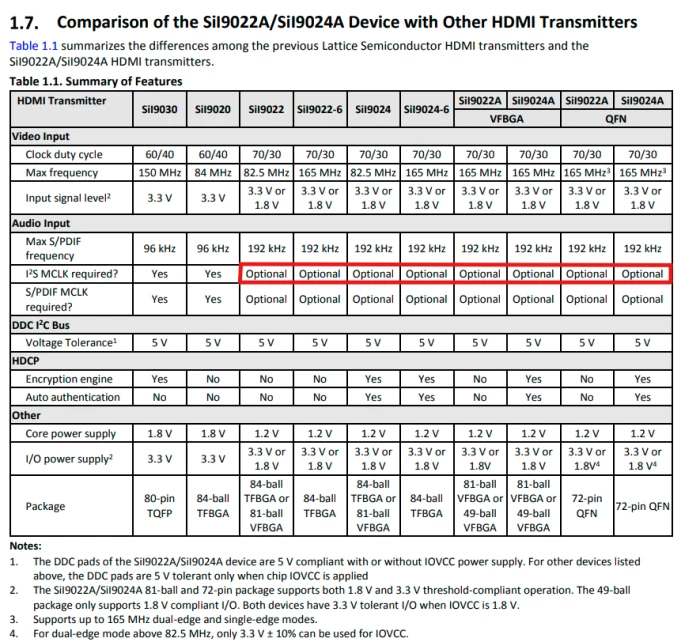

Skärmbild 2024-10-24 200554.pngSkärmbild 2024-10-24 200702.png



The device tree requries the mclk.

https://www.kernel.org/doc/Documentation/devicetree/bindings/display/bridge/sil%2Csii9022.yaml



# SPDX-License-Identifier: (GPL-2.0-only OR BSD-2-Clause)
%YAML 1.2
---
$id: http://devicetree.org/schemas/display/bridge/sil,sii9022.yaml#
$schema: http://devicetree.org/meta-schemas/core.yaml#

title: Silicon Image sii902x HDMI bridge

maintainers:
 - Boris Brezillon <bbrezillon@kernel.org>

properties:
 compatible:
 oneOf:
 - items:
 - enum:
 - sil,sii9022-cpi # CEC Programming Interface
 - sil,sii9022-tpi # Transmitter Programming Interface
 - const: sil,sii9022
 - const: sil,sii9022

 reg:
 maxItems: 1

 interrupts:
 maxItems: 1
 description: Interrupt line used to inform the host about hotplug events.

 reset-gpios:
 maxItems: 1

 iovcc-supply:
 description: I/O Supply Voltage (1.8V or 3.3V)

 cvcc12-supply:
 description: Digital Core Supply Voltage (1.2V)

 '#sound-dai-cells':
 enum: [ 0, 1 ]
 description: |
 <0> if only I2S or S/PDIF pin is wired,
 <1> if both are wired.
 HDMI audio is configured only if this property is found.
 If HDMI audio is configured, the sii902x device becomes an I2S and/or
 S/PDIF audio codec component (e.g. a digital audio sink), that can be
 used in configuring full audio devices with simple-card or
 audio-graph-card bindings. See their binding documents on how to describe
 the way the
 sii902x device is connected to the rest of the audio system:
 Documentation/devicetree/bindings/sound/simple-card.yaml
 Documentation/devicetree/bindings/sound/audio-graph-card.yaml
 Note: In case of the audio-graph-card binding the used port index should
 be 3.

 sil,i2s-data-lanes:
 $ref: /schemas/types.yaml#/definitions/uint32-array
 minItems: 1
 maxItems: 4
 uniqueItems: true
 items:
 enum: [ 0, 1, 2, 3 ]
 description:
 Each integer indicates which I2S pin is connected to which audio FIFO.
 The first integer selects the I2S audio pin for the first audio FIFO#0
 (HDMI channels 1&2), the second for FIFO#1 (HDMI channels 3&4), and so
 on. There are 4 FIFOs and 4 I2S pins (SD0 - SD3). Any I2S pin can be
 connected to any FIFO, but there can be no gaps. E.g. an I2S pin must be
 mapped to FIFO#0 and FIFO#1 before mapping a channel to FIFO#2. The
 default value is <0>, describing SD0 pin being routed to HDMI audio
 FIFO#0.

 clocks:
 maxItems: 1
 description: MCLK input. MCLK can be used to produce HDMI audio CTS values.

 clock-names:
 const: mclk

 ports:
 $ref: /schemas/graph.yaml#/properties/ports

 properties:
 port@0:
 $ref: /schemas/graph.yaml#/properties/port
 description: Parallel RGB input port

 port@1:
 $ref: /schemas/graph.yaml#/properties/port
 description: HDMI output port

 port@3:
 $ref: /schemas/graph.yaml#/properties/port
 description: Sound input port

required:
 - compatible
 - reg

additionalProperties: false

examples:
 - |
 i2c {
 #address-cells = <1>;
 #size-cells = <0>;

 hdmi-bridge@39 {
 compatible = "sil,sii9022";
 reg = <0x39>;
 reset-gpios = <&pioA 1 0>;
 iovcc-supply = <&v3v3_hdmi>;
 cvcc12-supply = <&v1v2_hdmi>;

 #sound-dai-cells = <0>;
 sil,i2s-data-lanes = < 0 1 2 >;
 clocks = <&mclk>;
 clock-names = "mclk";

 ports {
 #address-cells = <1>;
 #size-cells = <0>;

 port@0 {
 reg = <0>;
 bridge_in: endpoint {
 remote-endpoint = <&dc_out>;
 };
 };
 };
 };
 };
STM32MP151AAC3 custom board with STM32-OS as operating system: https://github.com/DanielMartensson/STM32-ComputerSTM32MP257FAK3 custom board with STM64-OS as operating system: https://github.com/DanielMartensson/STM64-Computer
D
DMårtAuthor
Lead
October 27, 2024

Hi @PatrickF

I have updated my DT.

Instead of ASoC Audio Graph Card, I'm using Simple Sound Card instead. It seems like I can get a hdmi-audio-codec and ha i2s-hifi...I don't know what they are doing.




/ {
	hdmi:connector{
		compatible = "hdmi-connector";
		#sound-dai-cells = <0>;
		label = "hdmi";
		type = "a";

		port{
			hdmi_connector_in:endpoint{
				remote-endpoint = <&sii9022_out>;
			};
 hdmi_audio_out:endpoit{
				remote-endpoint= <&sii9022_tx_endpoint>;
			};
		};
	};

	sound {
		compatible = "simple-audio-card";
		simple-audio-card,name = "SII9022A HDMI";
		simple-audio-card,format = "i2s";
		simple-audio-card,widgets = "Speaker", "External Speaker";
		simple-audio-card,routing = "External Speaker", "LINE_OUT";
		simple-audio-card,bitclock-master = <&dailink0_master>;
		simple-audio-card,frame-master = <&dailink0_master>;

		simple-audio-card,cpu {
			sound-dai = <&i2s2>;
		};

		dailink0_master: simple-audio-card,codec {
			sound-dai = <&hdmi>;
		};
	};
};

&i2c4{
	pinctrl-names = "default", "sleep";
	pinctrl-0 = <&i2c4_pins_mx>;
	pinctrl-1 = <&i2c4_sleep_pins_mx>;
	status = "okay";

	/* USER CODE BEGIN i2c4 */
	clocks = <&scmi_clk CK_SCMI_I2C4>;
	resets = <&scmi_reset RST_SCMI_I2C4>;
	i2c-scl-rising-time-ns = <185>;
	i2c-scl-falling-time-ns = <20>;
	clock-frequency = <400000>;
	/delete-property/ dmas;
	/delete-property/ dma-names;

 hdmi-transmitter@39{
		compatible = "sil,sii9022";
		reg = <0x39>;
		iovcc-supply = <&v3v3_hdmi>;
		cvcc12-supply = <&v1v2_hdmi>;
		reset-gpios = <&gpioe 8 GPIO_ACTIVE_LOW>;
		interrupts = <1 IRQ_TYPE_EDGE_FALLING>;
		interrupt-parent = <&gpiog>;
		#sound-dai-cells = <0>;
		sil,i2s-data-lanes = <0>;
		/*clocks = <&mclk>;
		clock-names = "mclk";*/
		status = "okay";

		ports{
			#address-cells = <1>;
			#size-cells = <0>;

			port@0{
				reg = <0>;

				sii9022_in:endpoint{
					remote-endpoint = <&ltdc_ep0_out>;
				};
			};

			port@1{
				reg = <1>;

				sii9022_out:endpoint{
					remote-endpoint = <&hdmi_connector_in>;
				};
			};

			port@3{
				reg = <3>;

				sii9022_tx_endpoint:endpoint{
					remote-endpoint = <&i2s2_endpoint>;
				};
			};
		};
	};
};

&i2s2{
	pinctrl-names = "default", "sleep";
	pinctrl-0 = <&i2s2_pins_mx>;
	pinctrl-1 = <&i2s2_sleep_pins_mx>;
	status = "okay";

	/* USER CODE BEGIN i2s2 */
	clocks = <&rcc SPI2>, <&rcc SPI2_K>, <&rcc PLL3_Q>, <&rcc PLL3_R>;
	clock-names = "pclk", "i2sclk", "x8k", "x11k";

	i2s2_port:port{
		i2s2_endpoint:endpoint{
			remote-endpoint = <&sii9022_tx_endpoint>;
			dai-format = "i2s";
			mclk-fs = <256>;
		};
	};
	/* USER CODE END i2s2 */
};





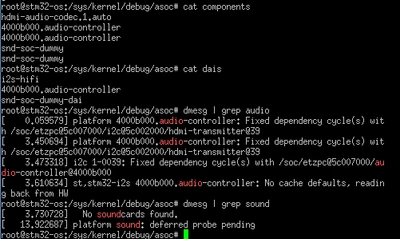

STM32MP151AAC3 custom board with STM32-OS as operating system: https://github.com/DanielMartensson/STM32-ComputerSTM32MP257FAK3 custom board with STM64-OS as operating system: https://github.com/DanielMartensson/STM64-Computer
D
DMårtAuthorBest answer
Lead
October 29, 2024

@PatrickF

Hi!

I solved the problem. Now I can hear sound from my SII9022A PHY.

I did not use ASoC Graph Card, instead I used Simple Card inside Linux kernel.

I post the Linux Device Tree in case if some one in the future want to play some music through the SII9022A.



// SPDX-License-Identifier: (GPL-2.0-or-later OR BSD-3-Clause)
/*
 * Copyright (C) 2024, STMicroelectronics - All Rights Reserved
 * Author: STM32CubeMX code generation for STMicroelectronics.
 */

/* For more information on Device Tree configuration, please refer to
 * https://wiki.st.com/stm32mpu/wiki/Category:Device_tree_configuration
 */

/dts-v1/;

#include <dt-bindings/pinctrl/stm32-pinfunc.h>
#include "stm32mp151.dtsi"
#include "stm32mp15xa.dtsi"
#include "stm32mp15xxac-pinctrl.dtsi"
#include "stm32mp15-m4-srm.dtsi"

/* USER CODE BEGIN includes */
#include "stm32mp15-scmi.dtsi"
#include <dt-bindings/gpio/gpio.h>
#include <dt-bindings/mfd/st,stpmic1.h>
/* USER CODE END includes */

/ {
	model = "STMicroelectronics custom STM32CubeMX board - openstlinux-6.1-yocto-mickledore-mpu-v24.06.26";
	compatible = "st,stm32mp151a-stm32-computer-firmware-mx", "st,stm32mp151";

	memory@c0000000 {
		device_type = "memory";
		reg = <0xc0000000 0x20000000>;

		/* USER CODE BEGIN memory */
		/* USER CODE END memory */
	};

	reserved-memory {
		#address-cells = <1>;
		#size-cells = <1>;
		ranges;

		/* USER CODE BEGIN reserved-memory */
		optee@de000000 {
			reg = <0xde000000 0x2000000>;
			no-map;
		};

		mcuram2:mcuram2@10000000{
			compatible = "shared-dma-pool";
			reg = <0x10000000 0x40000>;
			no-map;
		};

		vdev0vring0:vdev0vring0@10040000{
			compatible = "shared-dma-pool";
			reg = <0x10040000 0x1000>;
			no-map;
		};

		vdev0vring1:vdev0vring1@10041000{
			compatible = "shared-dma-pool";
			reg = <0x10041000 0x1000>;
			no-map;
		};

		vdev0buffer:vdev0buffer@10042000{
			compatible = "shared-dma-pool";
			reg = <0x10042000 0x4000>;
			no-map;
		};

		mcu_rsc_table:mcu-rsc-table@10048000{
			compatible = "shared-dma-pool";
			reg = <0x10048000 0x8000>;
			no-map;
		};

		mcuram:mcuram@30000000{
			compatible = "shared-dma-pool";
			reg = <0x30000000 0x40000>;
			no-map;
		};

		retram:retram@38000000{
			compatible = "shared-dma-pool";
			reg = <0x38000000 0x10000>;
			no-map;
		};
		/* USER CODE END reserved-memory */
	};

	/* USER CODE BEGIN root */
	aliases{
		ethernet0 = &ethernet0;
		serial0 = &uart4;
	};

	hdmi:connector{
		compatible = "hdmi-connector";
		#sound-dai-cells = <0>;
		label = "hdmi";
		type = "a";

		port{
			hdmi_connector_in:endpoint{
				remote-endpoint = <&sii9022_out>;
			};
			hdmi_audio_out:endpoit{
				remote-endpoint= <&sii9022_tx_endpoint>;
			};
		};
	};

	sound {
		compatible = "simple-audio-card";
		simple-audio-card,name = "SII9022A HDMI";
		simple-audio-card,format = "i2s";
		/*simple-audio-card,widgets = "Speaker", "External Speaker";
		simple-audio-card,routing = "External Speaker", "LINE_OUT";*/
		simple-audio-card,bitclock-master = <&dailink0_master>;
		simple-audio-card,frame-master = <&dailink0_master>;
		simple-audio-card,mclk-fs = <256>;

		dailink0_master: simple-audio-card,cpu {
			sound-dai = <&i2s2>;
		};

		simple-audio-card,codec {
			sound-dai = <&sii9022A>;
		};
	};

	config {
		u-boot,boot-led = "heartbeat";
		u-boot,error-led = "error";
		u-boot,mmc-env-partition = "u-boot-env";
		st,fastboot-gpios = <&gpioa 13 (GPIO_ACTIVE_LOW | GPIO_PULL_UP)>;
		st,stm32prog-gpios = <&gpioa 14 (GPIO_ACTIVE_LOW | GPIO_PULL_UP)>;
	};

	led{
		compatible = "gpio-leds";

		led-blue{
			label = "heartbeat";
			gpios = <&gpioa 14 GPIO_ACTIVE_LOW>;
			linux,default-trigger = "timer"; /* Change from heartbeat -> timer */
			default-state = "off";
		};

		led-red {
			label = "error";
			gpios = <&gpioa 13 GPIO_ACTIVE_LOW>;
			default-state = "off";
		};
	};

	vin:vin{
		compatible = "regulator-fixed";
		regulator-name = "vin";
		regulator-min-microvolt = <5000000>;
		regulator-max-microvolt = <5000000>;
		regulator-always-on;
	};

	chosen{
		stdout-path = "serial0:115200n8";
	};
	/* USER CODE END root */

	clocks{

		/* USER CODE BEGIN clocks */
		clk_csi: clk-csi {
			#clock-cells = <0>;
			compatible = "fixed-clock";
			clock-frequency = <4000000>;
		};

		clk_hse: clk-hse {
			#clock-cells = <0>;
			compatible = "fixed-clock";
			clock-frequency = <24000000>;
		};

		clk_hsi: clk-hsi {
			#clock-cells = <0>;
			compatible = "fixed-clock";
			clock-frequency = <64000000>;
		};

		clk_lse: clk-lse {
			#clock-cells = <0>;
			compatible = "fixed-clock";
			clock-frequency = <32768>;
		};

		clk_lsi: clk-lsi {
			#clock-cells = <0>;
			compatible = "fixed-clock";
			clock-frequency = <32000>;
		};
		/* USER CODE END clocks */
	};

}; /*root*/

&pinctrl {

	eth1_pins_mx: eth1_mx-0 {
		pins1 {
			pinmux = <STM32_PINMUX('A', 1, AF11)>, /* ETH1_RX_CLK */
					 <STM32_PINMUX('A', 7, AF11)>, /* ETH1_RX_CTL */
					 <STM32_PINMUX('B', 0, AF11)>, /* ETH1_RXD2 */
					 <STM32_PINMUX('C', 4, AF11)>, /* ETH1_RXD0 */
					 <STM32_PINMUX('C', 5, AF11)>, /* ETH1_RXD1 */
					 <STM32_PINMUX('H', 7, AF11)>; /* ETH1_RXD3 */
			bias-disable;
		};
		pins2 {
			pinmux = <STM32_PINMUX('A', 2, AF11)>; /* ETH1_MDIO */
			bias-disable;
			drive-push-pull;
			slew-rate = <0>;
		};
		pins3 {
			pinmux = <STM32_PINMUX('B', 11, AF11)>, /* ETH1_TX_CTL */
					 <STM32_PINMUX('C', 1, AF11)>, /* ETH1_MDC */
					 <STM32_PINMUX('C', 2, AF11)>, /* ETH1_TXD2 */
					 <STM32_PINMUX('E', 2, AF11)>, /* ETH1_TXD3 */
					 <STM32_PINMUX('G', 4, AF11)>, /* ETH1_GTX_CLK */
					 <STM32_PINMUX('G', 5, AF11)>, /* ETH1_CLK125 */
					 <STM32_PINMUX('G', 13, AF11)>, /* ETH1_TXD0 */
					 <STM32_PINMUX('G', 14, AF11)>; /* ETH1_TXD1 */
			bias-disable;
			drive-push-pull;
			slew-rate = <2>;
		};
		pins4 {
			pinmux = <STM32_PINMUX('B', 5, AF0)>; /* ETH1_CLK */
			bias-disable;
			drive-push-pull;
			slew-rate = <1>;
		};
	};

	eth1_sleep_pins_mx: eth1_sleep_mx-0 {
		pins {
			pinmux = <STM32_PINMUX('A', 1, ANALOG)>, /* ETH1_RX_CLK */
					 <STM32_PINMUX('A', 2, ANALOG)>, /* ETH1_MDIO */
					 <STM32_PINMUX('A', 7, ANALOG)>, /* ETH1_RX_CTL */
					 <STM32_PINMUX('B', 0, ANALOG)>, /* ETH1_RXD2 */
					 <STM32_PINMUX('B', 5, ANALOG)>, /* ETH1_CLK */
					 <STM32_PINMUX('B', 11, ANALOG)>, /* ETH1_TX_CTL */
					 <STM32_PINMUX('C', 1, ANALOG)>, /* ETH1_MDC */
					 <STM32_PINMUX('C', 2, ANALOG)>, /* ETH1_TXD2 */
					 <STM32_PINMUX('C', 4, ANALOG)>, /* ETH1_RXD0 */
					 <STM32_PINMUX('C', 5, ANALOG)>, /* ETH1_RXD1 */
					 <STM32_PINMUX('E', 2, ANALOG)>, /* ETH1_TXD3 */
					 <STM32_PINMUX('G', 4, ANALOG)>, /* ETH1_GTX_CLK */
					 <STM32_PINMUX('G', 5, ANALOG)>, /* ETH1_CLK125 */
					 <STM32_PINMUX('G', 13, ANALOG)>, /* ETH1_TXD0 */
					 <STM32_PINMUX('G', 14, ANALOG)>, /* ETH1_TXD1 */
					 <STM32_PINMUX('H', 7, ANALOG)>; /* ETH1_RXD3 */
		};
	};

	hdmi_cec_pins_mx: hdmi_cec_mx-0 {
		pins {
			pinmux = <STM32_PINMUX('B', 6, AF5)>; /* CEC */
			bias-disable;
			drive-open-drain;
			slew-rate = <0>;
		};
	};

	hdmi_cec_sleep_pins_mx: hdmi_cec_sleep_mx-0 {
		pins {
			pinmux = <STM32_PINMUX('B', 6, ANALOG)>; /* CEC */
		};
	};

	i2c1_pins_mx: i2c1_mx-0 {
		pins {
			pinmux = <STM32_PINMUX('D', 12, AF5)>, /* I2C1_SCL */
					 <STM32_PINMUX('D', 13, AF5)>; /* I2C1_SDA */
			bias-disable;
			drive-open-drain;
			slew-rate = <0>;
		};
	};

	i2c1_sleep_pins_mx: i2c1_sleep_mx-0 {
		pins {
			pinmux = <STM32_PINMUX('D', 12, ANALOG)>, /* I2C1_SCL */
					 <STM32_PINMUX('D', 13, ANALOG)>; /* I2C1_SDA */
		};
	};

	i2c4_pins_mx: i2c4_mx-0 {
		pins {
			pinmux = <STM32_PINMUX('F', 14, AF4)>, /* I2C4_SCL */
					 <STM32_PINMUX('F', 15, AF4)>; /* I2C4_SDA */
			bias-disable;
			drive-open-drain;
			slew-rate = <0>;
		};
	};

	i2c4_sleep_pins_mx: i2c4_sleep_mx-0 {
		pins {
			pinmux = <STM32_PINMUX('F', 14, ANALOG)>, /* I2C4_SCL */
					 <STM32_PINMUX('F', 15, ANALOG)>; /* I2C4_SDA */
		};
	};

	i2s2_pins_mx: i2s2_mx-0 {
		pins {
			pinmux = <STM32_PINMUX('A', 9, AF5)>, /* I2S2_CK */
					 <STM32_PINMUX('B', 12, AF5)>, /* I2S2_WS */
					 <STM32_PINMUX('I', 3, AF5)>; /* I2S2_SDO */
			bias-disable;
			drive-push-pull;
			slew-rate = <1>;
		};
	};

	i2s2_sleep_pins_mx: i2s2_sleep_mx-0 {
		pins {
			pinmux = <STM32_PINMUX('A', 9, ANALOG)>, /* I2S2_CK */
					 <STM32_PINMUX('B', 12, ANALOG)>, /* I2S2_WS */
					 <STM32_PINMUX('I', 3, ANALOG)>; /* I2S2_SDO */
		};
	};

	ltdc_pins_mx: ltdc_mx-0 {
		pins1 {
			pinmux = <STM32_PINMUX('A', 3, AF14)>, /* LTDC_B5 */
					 <STM32_PINMUX('B', 1, AF14)>, /* LTDC_G0 */
					 <STM32_PINMUX('B', 8, AF14)>, /* LTDC_B6 */
					 <STM32_PINMUX('C', 0, AF14)>, /* LTDC_R5 */
					 <STM32_PINMUX('D', 8, AF14)>, /* LTDC_B7 */
					 <STM32_PINMUX('D', 9, AF14)>, /* LTDC_B0 */
					 <STM32_PINMUX('D', 10, AF14)>, /* LTDC_B3 */
					 <STM32_PINMUX('E', 6, AF14)>, /* LTDC_G1 */
					 <STM32_PINMUX('E', 15, AF14)>, /* LTDC_R7 */
					 <STM32_PINMUX('F', 10, AF14)>, /* LTDC_DE */
					 <STM32_PINMUX('G', 10, AF14)>, /* LTDC_B2 */
					 <STM32_PINMUX('G', 12, AF14)>, /* LTDC_B1 */
					 <STM32_PINMUX('H', 2, AF14)>, /* LTDC_R0 */
					 <STM32_PINMUX('H', 3, AF14)>, /* LTDC_R1 */
					 <STM32_PINMUX('H', 8, AF14)>, /* LTDC_R2 */
					 <STM32_PINMUX('H', 9, AF14)>, /* LTDC_R3 */
					 <STM32_PINMUX('H', 10, AF14)>, /* LTDC_R4 */
					 <STM32_PINMUX('H', 12, AF14)>, /* LTDC_R6 */
					 <STM32_PINMUX('H', 13, AF14)>, /* LTDC_G2 */
					 <STM32_PINMUX('H', 14, AF14)>, /* LTDC_G3 */
					 <STM32_PINMUX('H', 15, AF14)>, /* LTDC_G4 */
					 <STM32_PINMUX('I', 0, AF14)>, /* LTDC_G5 */
					 <STM32_PINMUX('I', 1, AF14)>, /* LTDC_G6 */
					 <STM32_PINMUX('I', 2, AF14)>, /* LTDC_G7 */
					 <STM32_PINMUX('I', 4, AF14)>, /* LTDC_B4 */
					 <STM32_PINMUX('I', 9, AF14)>, /* LTDC_VSYNC */
					 <STM32_PINMUX('I', 10, AF14)>; /* LTDC_HSYNC */
			bias-disable;
			drive-push-pull;
			slew-rate = <0>;
		};
		pins2 {
			pinmux = <STM32_PINMUX('G', 7, AF14)>; /* LTDC_CLK */
			bias-disable;
			drive-push-pull;
			slew-rate = <1>;
		};
	};

	ltdc_sleep_pins_mx: ltdc_sleep_mx-0 {
		pins {
			pinmux = <STM32_PINMUX('A', 3, ANALOG)>, /* LTDC_B5 */
					 <STM32_PINMUX('B', 1, ANALOG)>, /* LTDC_G0 */
					 <STM32_PINMUX('B', 8, ANALOG)>, /* LTDC_B6 */
					 <STM32_PINMUX('C', 0, ANALOG)>, /* LTDC_R5 */
					 <STM32_PINMUX('D', 8, ANALOG)>, /* LTDC_B7 */
					 <STM32_PINMUX('D', 9, ANALOG)>, /* LTDC_B0 */
					 <STM32_PINMUX('D', 10, ANALOG)>, /* LTDC_B3 */
					 <STM32_PINMUX('E', 6, ANALOG)>, /* LTDC_G1 */
					 <STM32_PINMUX('E', 15, ANALOG)>, /* LTDC_R7 */
					 <STM32_PINMUX('F', 10, ANALOG)>, /* LTDC_DE */
					 <STM32_PINMUX('G', 7, ANALOG)>, /* LTDC_CLK */
					 <STM32_PINMUX('G', 10, ANALOG)>, /* LTDC_B2 */
					 <STM32_PINMUX('G', 12, ANALOG)>, /* LTDC_B1 */
					 <STM32_PINMUX('H', 2, ANALOG)>, /* LTDC_R0 */
					 <STM32_PINMUX('H', 3, ANALOG)>, /* LTDC_R1 */
					 <STM32_PINMUX('H', 8, ANALOG)>, /* LTDC_R2 */
					 <STM32_PINMUX('H', 9, ANALOG)>, /* LTDC_R3 */
					 <STM32_PINMUX('H', 10, ANALOG)>, /* LTDC_R4 */
					 <STM32_PINMUX('H', 12, ANALOG)>, /* LTDC_R6 */
					 <STM32_PINMUX('H', 13, ANALOG)>, /* LTDC_G2 */
					 <STM32_PINMUX('H', 14, ANALOG)>, /* LTDC_G3 */
					 <STM32_PINMUX('H', 15, ANALOG)>, /* LTDC_G4 */
					 <STM32_PINMUX('I', 0, ANALOG)>, /* LTDC_G5 */
					 <STM32_PINMUX('I', 1, ANALOG)>, /* LTDC_G6 */
					 <STM32_PINMUX('I', 2, ANALOG)>, /* LTDC_G7 */
					 <STM32_PINMUX('I', 4, ANALOG)>, /* LTDC_B4 */
					 <STM32_PINMUX('I', 9, ANALOG)>, /* LTDC_VSYNC */
					 <STM32_PINMUX('I', 10, ANALOG)>; /* LTDC_HSYNC */
		};
	};

	sdmmc2_pins_mx: sdmmc2_mx-0 {
		pins1 {
			pinmux = <STM32_PINMUX('A', 8, AF9)>, /* SDMMC2_D4 */
					 <STM32_PINMUX('B', 3, AF9)>, /* SDMMC2_D2 */
					 <STM32_PINMUX('B', 4, AF9)>, /* SDMMC2_D3 */
					 <STM32_PINMUX('B', 9, AF10)>, /* SDMMC2_D5 */
					 <STM32_PINMUX('B', 15, AF9)>, /* SDMMC2_D1 */
					 <STM32_PINMUX('C', 7, AF10)>, /* SDMMC2_D7 */
					 <STM32_PINMUX('E', 5, AF9)>; /* SDMMC2_D6 */
			bias-disable;
			drive-push-pull;
			slew-rate = <1>;
		};
		pins2 {
			pinmux = <STM32_PINMUX('B', 14, AF9)>, /* SDMMC2_D0 */
					 <STM32_PINMUX('E', 3, AF9)>, /* SDMMC2_CK */
					 <STM32_PINMUX('G', 6, AF10)>; /* SDMMC2_CMD */
			bias-pull-up;
			drive-push-pull;
			slew-rate = <1>;
		};
	};

	sdmmc2_opendrain_pins_mx: sdmmc2_opendrain_mx-0 {
		pins1 {
			pinmux = <STM32_PINMUX('A', 8, AF9)>, /* SDMMC2_D4 */
					 <STM32_PINMUX('B', 3, AF9)>, /* SDMMC2_D2 */
					 <STM32_PINMUX('B', 4, AF9)>, /* SDMMC2_D3 */
					 <STM32_PINMUX('B', 9, AF10)>, /* SDMMC2_D5 */
					 <STM32_PINMUX('B', 15, AF9)>, /* SDMMC2_D1 */
					 <STM32_PINMUX('C', 7, AF10)>, /* SDMMC2_D7 */
					 <STM32_PINMUX('E', 5, AF9)>; /* SDMMC2_D6 */
			bias-disable;
			drive-push-pull;
			slew-rate = <1>;
		};
		pins2 {
			pinmux = <STM32_PINMUX('B', 14, AF9)>, /* SDMMC2_D0 */
					 <STM32_PINMUX('E', 3, AF9)>; /* SDMMC2_CK */
			bias-pull-up;
			drive-push-pull;
			slew-rate = <1>;
		};
		pins3 {
			pinmux = <STM32_PINMUX('G', 6, AF10)>; /* SDMMC2_CMD */
			bias-pull-up;
			drive-open-drain;
			slew-rate = <1>;
		};
	};

	sdmmc2_sleep_pins_mx: sdmmc2_sleep_mx-0 {
		pins {
			pinmux = <STM32_PINMUX('A', 8, ANALOG)>, /* SDMMC2_D4 */
					 <STM32_PINMUX('B', 3, ANALOG)>, /* SDMMC2_D2 */
					 <STM32_PINMUX('B', 4, ANALOG)>, /* SDMMC2_D3 */
					 <STM32_PINMUX('B', 9, ANALOG)>, /* SDMMC2_D5 */
					 <STM32_PINMUX('B', 14, ANALOG)>, /* SDMMC2_D0 */
					 <STM32_PINMUX('B', 15, ANALOG)>, /* SDMMC2_D1 */
					 <STM32_PINMUX('C', 7, ANALOG)>, /* SDMMC2_D7 */
					 <STM32_PINMUX('E', 3, ANALOG)>, /* SDMMC2_CK */
					 <STM32_PINMUX('E', 5, ANALOG)>, /* SDMMC2_D6 */
					 <STM32_PINMUX('G', 6, ANALOG)>; /* SDMMC2_CMD */
		};
	};

	uart4_pins_mx: uart4_mx-0 {
		pins1 {
			pinmux = <STM32_PINMUX('B', 2, AF8)>; /* UART4_RX */
			bias-pull-up;
		};
		pins2 {
			pinmux = <STM32_PINMUX('G', 11, AF6)>; /* UART4_TX */
			bias-pull-up;
			drive-push-pull;
			slew-rate = <0>;
		};
	};

	uart4_idle_pins_mx: uart4_idle_mx-0 {
		pins1 {
			pinmux = <STM32_PINMUX('B', 2, AF8)>; /* UART4_RX */
			bias-pull-up;
		};
		pins2 {
			pinmux = <STM32_PINMUX('G', 11, ANALOG)>; /* UART4_TX */
			bias-pull-up;
		};
	};

	uart4_sleep_pins_mx: uart4_sleep_mx-0 {
		pins {
			pinmux = <STM32_PINMUX('B', 2, ANALOG)>, /* UART4_RX */
					 <STM32_PINMUX('G', 11, ANALOG)>; /* UART4_TX */
			bias-pull-up;
		};
	};

	usb_otg_hs_pins_mx: usb_otg_hs_mx-0 {
		pins {
			pinmux = <STM32_PINMUX('A', 10, ANALOG)>; /* USB_OTG_HS_ID */
		};
	};

	usb_otg_hs_sleep_pins_mx: usb_otg_hs_sleep_mx-0 {
		pins {
			pinmux = <STM32_PINMUX('A', 10, ANALOG)>; /* USB_OTG_HS_ID */
		};
	};

	/* USER CODE BEGIN pinctrl */
	/* USER CODE END pinctrl */
};

&pinctrl_z {

	/* USER CODE BEGIN pinctrl_z */
	/* USER CODE END pinctrl_z */
};

&m4_rproc{
	status = "disabled";

	/* USER CODE BEGIN m4_rproc */
	resets = <&scmi_reset RST_SCMI_MCU>, <&scmi_reset RST_SCMI_MCU_HOLD_BOOT>;
	reset-names = "mcu_rst", "hold_boot";
	/*/delete-property/ st,syscfg-holdboot;*/
	mboxes = <&ipcc 0>, <&ipcc 1>, <&ipcc 2>, <&ipcc 3>;
	mbox-names = "vq0", "vq1", "shutdown", "detach";
	memory-region = <&retram>, <&mcuram>, <&mcuram2>, <&vdev0vring0>, <&vdev0vring1>, <&vdev0buffer>, <&mcu_rsc_table>;
	interrupt-parent = <&exti>;
	interrupts = <68 1>;
	wakeup-source;
	/* USER CODE END m4_rproc */

	m4_system_resources{
		status = "disabled";

		/* USER CODE BEGIN m4_system_resources */
		/* USER CODE END m4_system_resources */
	};
};

&bsec{
	status = "okay";

	/* USER CODE BEGIN bsec */
	/* USER CODE END bsec */
};

&cec{
	pinctrl-names = "default", "sleep";
	pinctrl-0 = <&hdmi_cec_pins_mx>;
	pinctrl-1 = <&hdmi_cec_sleep_pins_mx>;
	status = "okay";

	/* USER CODE BEGIN cec */
	/* USER CODE END cec */
};

&dma1{
	status = "okay";

	/* USER CODE BEGIN dma1 */
	resets = <&scmi_reset RST_SCMI_MDMA>;
	/* USER CODE END dma1 */
};

&dma2{
	status = "disabled";

	/* USER CODE BEGIN dma2 */
	/* USER CODE END dma2 */
};

&dmamux1{
	status = "okay";

	dma-masters = <&dma1>;
	dma-channels = <8>;

	/* USER CODE BEGIN dmamux1 */
	/* USER CODE END dmamux1 */
};

&ethernet0{
	pinctrl-names = "default", "sleep";
	pinctrl-0 = <&eth1_pins_mx>;
	pinctrl-1 = <&eth1_sleep_pins_mx>;
	status = "okay";

	/* USER CODE BEGIN ethernet0 */
	phy-mode = "rgmii-id";
	max-speed = <1000>;
	phy-handle = <&phy0>;
	nvmem-cells = <&ethernet_mac_address>;
	nvmem-cell-names = "mac-address";

	mdio{
		#address-cells = <1>;
		#size-cells = <0>;
		compatible = "snps,dwmac-mdio";

		phy0:ethernet-phy@0{
			reg = <0>;
		};
	};
	/* USER CODE END ethernet0 */
};

&hsem{
	status = "okay";

	/* USER CODE BEGIN hsem */
	/* USER CODE END hsem */
};

&i2c1{
	pinctrl-names = "default", "sleep";
	pinctrl-0 = <&i2c1_pins_mx>;
	pinctrl-1 = <&i2c1_sleep_pins_mx>;
	status = "okay";

	/* USER CODE BEGIN i2c1 */
	/* USER CODE END i2c1 */
};

&i2c4{
	pinctrl-names = "default", "sleep";
	pinctrl-0 = <&i2c4_pins_mx>;
	pinctrl-1 = <&i2c4_sleep_pins_mx>;
	status = "okay";

	/* USER CODE BEGIN i2c4 */
	clocks = <&scmi_clk CK_SCMI_I2C4>;
	resets = <&scmi_reset RST_SCMI_I2C4>;
	i2c-scl-rising-time-ns = <185>;
	i2c-scl-falling-time-ns = <20>;
	clock-frequency = <400000>;
	/delete-property/ dmas;
	/delete-property/ dma-names;

	sii9022A: hdmi-transmitter@39{
		compatible = "sil,sii9022";
		reg = <0x39>;
		iovcc-supply = <&v3v3_hdmi>;
		cvcc12-supply = <&v1v2_hdmi>;
		reset-gpios = <&gpioe 8 GPIO_ACTIVE_LOW>;
		interrupts = <1 IRQ_TYPE_EDGE_FALLING>;
		interrupt-parent = <&gpiog>;
		#sound-dai-cells = <0>;
		sil,i2s-data-lanes = <0>;
		/*clocks = <&mclk>;
		clock-names = "mclk";*/
		status = "okay";

		ports{
			#address-cells = <1>;
			#size-cells = <0>;

			port@0{
				reg = <0>;

				sii9022_in:endpoint{
					remote-endpoint = <&ltdc_ep0_out>;
				};
			};

			port@1{
				reg = <1>;

				sii9022_out:endpoint{
					remote-endpoint = <&hdmi_connector_in>;
				};
			};

			port@3{
				reg = <3>;

				sii9022_tx_endpoint:endpoint{
					remote-endpoint = <&i2s2_endpoint>;
				};
			};
		};
	};

	pmic:stpmic@33{
		compatible = "st,stpmic1";
		reg = <0x33>;
		/*interrupts-extended = <&gpioa 0 IRQ_TYPE_EDGE_FALLING>;*/
		interrupts-extended = <&exti 55 IRQ_TYPE_EDGE_FALLING>;
		interrupt-controller;
		#interrupt-cells = <2>;
		status = "okay";

		regulators{
			compatible = "st,stpmic1-regulators";
			buck1-supply = <&vin>;
			buck2-supply = <&vin>;
			buck3-supply = <&vin>;
			buck4-supply = <&vin>;
			/*ldo1-supply = <&v3v3>;*/
			ldo2-supply = <&vin>;
			ldo3-supply = <&vdd_ddr>;
			ldo4-supply = <&vin>;
			ldo5-supply = <&vin>;
			ldo6-supply = <&v3v3>;
			vref_ddr-supply = <&vin>;
			/*boost-supply = <&vin>;
			pwr_sw1-supply = <&bst_out>;
			pwr_sw2-supply = <&bst_out>;*/

			vddcore:buck1{
				regulator-name = "vddcore";
				regulator-min-microvolt = <1200000>;
				regulator-max-microvolt = <1350000>;
				regulator-always-on;
				regulator-initial-mode = <0>;
				regulator-over-current-protection;
			};

			vdd_ddr:buck2{
				regulator-name = "vdd_ddr";
				regulator-min-microvolt = <1350000>;
				regulator-max-microvolt = <1350000>;
				regulator-always-on;
				regulator-initial-mode = <0>;
				regulator-over-current-protection;
			};

			vdd:buck3{
				regulator-name = "vdd";
				regulator-min-microvolt = <3300000>;
				regulator-max-microvolt = <3300000>;
				regulator-always-on;
				st,mask-reset;
				regulator-initial-mode = <0>;
				regulator-over-current-protection;
			};

			v3v3:buck4{
				regulator-name = "v3v3";
				regulator-min-microvolt = <3300000>;
				regulator-max-microvolt = <3300000>;
				regulator-always-on;
				regulator-over-current-protection;
				regulator-initial-mode = <0>;
			};

			/*
			v1v8_audio:ldo1{
				regulator-name = "v1v8_audio";
				regulator-min-microvolt = <1800000>;
				regulator-max-microvolt = <1800000>;
				regulator-always-on;
				interrupts = <IT_CURLIM_LDO1 0>;
			};*/

			v3v3_hdmi:ldo2{
				regulator-name = "v3v3_hdmi";
				regulator-min-microvolt = <3300000>;
				regulator-max-microvolt = <3300000>;
				regulator-always-on;
				interrupts = <IT_CURLIM_LDO2 0>;
			};

			vtt_ddr:ldo3{
				regulator-name = "vtt_ddr";
				regulator-min-microvolt = <500000>;
				regulator-max-microvolt = <750000>;
				regulator-always-on;
				regulator-over-current-protection;
			};

			vdd_usb:ldo4{
				regulator-name = "vdd_usb";
				interrupts = <IT_CURLIM_LDO4 0>;
			};

			vdda:ldo5{
				regulator-name = "vdda";
				regulator-min-microvolt = <2900000>;
				regulator-max-microvolt = <2900000>;
				interrupts = <IT_CURLIM_LDO5 0>;
				regulator-boot-on;
			};

			v1v2_hdmi:ldo6{
				regulator-name = "v1v2_hdmi";
				regulator-min-microvolt = <1200000>;
				regulator-max-microvolt = <1200000>;
				regulator-always-on;
				interrupts = <IT_CURLIM_LDO6 0>;
			};

			vref_ddr:vref-ddr{
				regulator-name = "vref_ddr";
				regulator-always-on;
			};

			/*
			bst_out:boost{
				regulator-name = "bst_out";
				interrupts = <IT_OCP_BOOST 0>;
			};

			vbus_otg:pwr-sw1{
				regulator-name = "vbus_otg";
				interrupts = <IT_OCP_OTG 0>;
			};

			vbus_sw:pwr-sw2{
				regulator-name = "vbus_sw";
				interrupts = <IT_OCP_SWOUT 0>;
				regulator-active-discharge = <1>;
			};
			*/
		};

		onkey{
			compatible = "st,stpmic1-onkey";
			interrupts = <IT_PONKEY_F 0>, <IT_PONKEY_R 0>;
			interrupt-names = "onkey-falling", "onkey-rising";
			power-off-time-sec = <10>;
			status = "okay";
		};
	};
	/* USER CODE END i2c4 */
};

&i2s2{
	pinctrl-names = "default", "sleep";
	pinctrl-0 = <&i2s2_pins_mx>;
	pinctrl-1 = <&i2s2_sleep_pins_mx>;
	status = "okay";

	/* USER CODE BEGIN i2s2 */
	clocks = <&rcc SPI2>, <&rcc SPI2_K>, <&rcc PLL3_Q>, <&rcc PLL3_R>;
	clock-names = "pclk", "i2sclk", "x8k", "x11k";

	i2s2_port:port{
		i2s2_endpoint:endpoint{
			remote-endpoint = <&sii9022_tx_endpoint>;
			dai-format = "i2s";
			mclk-fs = <256>;
		};
	};
	/* USER CODE END i2s2 */
};

&ltdc{
	pinctrl-names = "default", "sleep";
	pinctrl-0 = <&ltdc_pins_mx>;
	pinctrl-1 = <&ltdc_sleep_pins_mx>;
	status = "okay";

	/* USER CODE BEGIN ltdc */
	port{

		ltdc_ep0_out:endpoint{
			remote-endpoint = <&sii9022_in>;
		};
	};
	/* USER CODE END ltdc */
};

&m4_dma2{
	status = "okay";

	/* USER CODE BEGIN m4_dma2 */
	/* USER CODE END m4_dma2 */
};

&mdma1{
	status = "okay";

	/* USER CODE BEGIN mdma1 */
	/* USER CODE END mdma1 */
};

&pwr_regulators{
	status = "okay";

	/* USER CODE BEGIN pwr_regulators */
	vdd-supply = <&vdd>;
	vdd_3v3_usbfs-supply = <&vdd_usb>;
	/* USER CODE END pwr_regulators */
};

&rcc{
	status = "okay";

	/* USER CODE BEGIN rcc */
	compatible = "st,stm32mp1-rcc-secure", "syscon";
	clock-names = "hse", "hsi", "csi", "lse", "lsi";
	clocks = <&scmi_clk CK_SCMI_HSE>,
		 <&scmi_clk CK_SCMI_HSI>,
		 <&scmi_clk CK_SCMI_CSI>,
		 <&scmi_clk CK_SCMI_LSE>,
		 <&scmi_clk CK_SCMI_LSI>;
	/* USER CODE END rcc */
};

&rng1{
	status = "okay";

	/* USER CODE BEGIN rng1 */
	clocks = <&scmi_clk CK_SCMI_RNG1>;
	resets = <&scmi_reset RST_SCMI_RNG1>;
	/* USER CODE END rng1 */
};

&rtc{
	status = "okay";

	/* USER CODE BEGIN rtc */
	clocks = <&scmi_clk CK_SCMI_RTCAPB>, <&scmi_clk CK_SCMI_RTC>;
	/* USER CODE END rtc */
};

&sdmmc2{
	pinctrl-names = "default", "opendrain", "sleep";
	pinctrl-0 = <&sdmmc2_pins_mx>;
	pinctrl-1 = <&sdmmc2_opendrain_pins_mx>;
	pinctrl-2 = <&sdmmc2_sleep_pins_mx>;
	status = "okay";

	/* USER CODE BEGIN sdmmc2 */
	non-removable;
	no-sd;
	no-sdio;
	st,neg-edge;
	bus-width = <8>;
	vmmc-supply = <&v3v3>;
	vqmmc-supply = <&vdd>;
	mmc-ddr-3_3v;
	/* USER CODE END sdmmc2 */
};

&tamp{
	status = "okay";

	/* USER CODE BEGIN tamp */
	/* USER CODE END tamp */
};

&uart4{
	pinctrl-names = "default", "idle", "sleep";
	pinctrl-0 = <&uart4_pins_mx>;
	pinctrl-1 = <&uart4_idle_pins_mx>;
	pinctrl-2 = <&uart4_sleep_pins_mx>;
	status = "okay";

	/* USER CODE BEGIN uart4 */
	/delete-property/ dmas;
	/delete-property/ dma-names;
	u-boot,dm-pre-reloc;
	/* USER CODE END uart4 */
};

&usbh_ehci{
	status = "okay";

	/* USER CODE BEGIN usbh_ehci */
	phys = <&usbphyc_port0>;
	#address-cells = <1>;
	#size-cells = <0>;
	/* onboard HUB */
	hub@1 {
		compatible = "usb424,2514";
		reg = <1>;
		vdd-supply = <&v3v3>;
	};
	/* USER CODE END usbh_ehci */
};

&usbh_ohci{
	status = "okay";

	/* USER CODE BEGIN usbh_ohci */
	/* USER CODE END usbh_ohci */
};

&usbotg_hs{
	pinctrl-names = "default", "sleep";
	pinctrl-0 = <&usb_otg_hs_pins_mx>;
	pinctrl-1 = <&usb_otg_hs_sleep_pins_mx>;
	status = "okay";

	/* USER CODE BEGIN usbotg_hs */
	phys = <&usbphyc_port1 0>;
	phy-names = "usb2-phy";
	usb-role-switch;
 u-boot,dm-pre-reloc;
 u-boot,force-b-session-valid;
 hnp-srp-disable;
 dr_mode = "peripheral";
	/* USER CODE END usbotg_hs */
};

&usbphyc{
	status = "okay";

	/* USER CODE BEGIN usbphyc */
	phy-supply = <&vdd_usb>;
	/* USER CODE END usbphyc */
};

&usbphyc_port0{
	status = "okay";

	/* USER CODE BEGIN usbphyc_port0 */
	phy-supply = <&vdd_usb>;
	st,tune-hs-dc-level = <2>;
	st,enable-fs-rftime-tuning;
	st,enable-hs-rftime-reduction;
	st,trim-hs-current = <15>;
	st,trim-hs-impedance = <1>;
	st,tune-squelch-level = <3>;
	st,tune-hs-rx-offset = <2>;
	st,no-lsfs-sc;
	/* USER CODE END usbphyc_port0 */
};

&usbphyc_port1{
	status = "okay";

	/* USER CODE BEGIN usbphyc_port1 */
	phy-supply = <&vdd_usb>;
	st,tune-hs-dc-level = <2>;
	st,enable-fs-rftime-tuning;
	st,enable-hs-rftime-reduction;
	st,trim-hs-current = <15>;
	st,trim-hs-impedance = <1>;
	st,tune-squelch-level = <3>;
	st,tune-hs-rx-offset = <2>;
	st,no-lsfs-sc;
	/* USER CODE END usbphyc_port1 */
};

/* USER CODE BEGIN addons */
/*
&arm_wdt{
	timeout-sec = <32>;
	status = "okay";
};
*/
&cpu0 {
	cpu-supply = <&vddcore>;
	clocks = <&scmi_clk CK_SCMI_MPU>;
};

&uart4_pins_mx {
	u-boot,dm-pre-reloc;
	pins1 {
		u-boot,dm-pre-reloc;
	};
	pins2 {
		u-boot,dm-pre-reloc;
	};
};
&gpioz {
	clocks = <&scmi_clk CK_SCMI_GPIOZ>;
};
/* USER CODE END addons */
STM32MP151AAC3 custom board with STM32-OS as operating system: https://github.com/DanielMartensson/STM32-ComputerSTM32MP257FAK3 custom board with STM64-OS as operating system: https://github.com/DanielMartensson/STM64-Computer
Terms & ConditionsAccessibility statement
