Where can I find DMA request mapping on STM32MP15 - M4 MCU

  • November 15, 2023
  • 1 reply
  • 1505 views

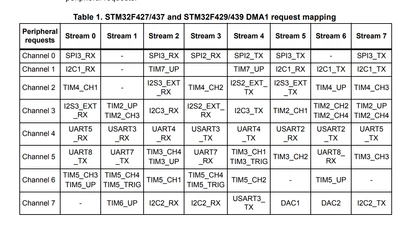

On STM32F4 has this and it is very easy to use. Does STM32MP15 -M4 MCU have same one?






This topic has been closed for replies.
Best answer by PatrickF

Hi @Dat Tran ,

All information are inside Reference Manual.

In complex product, there is a DMAMUX in front of DMAs to allow much more flexibility.

The list of resource is inside the DMAMUX section.

Note that MDMA (devoted to Linux secure/non-secure usage) has their connections described in a separate section under 'Block interconnect / MDMA'

CubeMX might also help you as DMAMUX could be also shared with Linux (where DMA1 and/or DMA2 are assigned to either Linux or Cortex-M, but not shared).

Regards.

1 reply

PatrickF
PatrickFBest answer
Technical Moderator
November 15, 2023

Hi @Dat Tran ,

All information are inside Reference Manual.

In complex product, there is a DMAMUX in front of DMAs to allow much more flexibility.

The list of resource is inside the DMAMUX section.

Note that MDMA (devoted to Linux secure/non-secure usage) has their connections described in a separate section under 'Block interconnect / MDMA'

CubeMX might also help you as DMAMUX could be also shared with Linux (where DMA1 and/or DMA2 are assigned to either Linux or Cortex-M, but not shared).

Regards.
