Problem with DEBUG MCU STM32MP157A-DK1

Forum|Forum|4 years ago
June 12, 2021
3 replies
2335 views

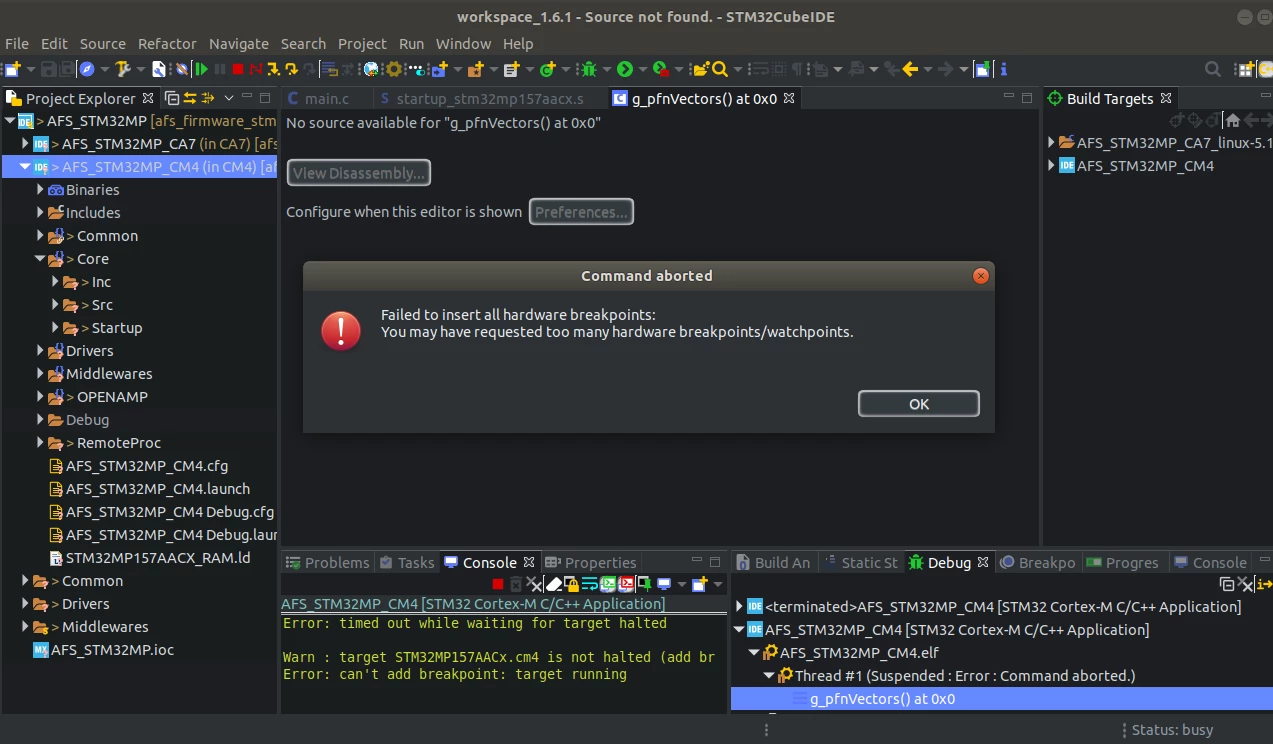

I just created a project in STMCubeIDE for STM32MP157A-DK1 and am trying to run MCU debugging in ENGINEERING MODE and PRODUCTION MODE. I use an ST-LINK wire and an Ethernet Over USB connection. SSH and the UART command line work well. In engineering mode, I get the hardware breakpoints error. In production mode, all breakpoints that are set to an infinite loop do not work...this is very strange. What did I miss?

This topic has been closed for replies.

Best answer by AlexandrShipovsky

Hello LudovicR! I use Ubuntu 20.04.I just rebooted the laptop and everything worked...I don't know what the problem was

LudovicR

ST Employee

Hello SAlex.2,

On which platform are you running STM32CubeIDE?

Regards,

AlexandrShipovskyAuthor

Associate III

Hello LudovicR,

Six months later, I decided to update STM32CubeIDE on my computer, and at the same time the Linux kernel version, the, u-boat, HAL. I found the exact same problem again:

Info : Listening on port 6666 for tcl connections
Info : Listening on port 4444 for telnet connections
Info : STLINK V2J39M27 (API v2) VID:PID 0483:3752
Info : Target voltage: 3.240945
Info : Unable to match requested speed 8000 kHz, using 4000 kHz
Info : Unable to match requested speed 8000 kHz, using 4000 kHz
Info : clock speed 4000 kHz
Info : stlink_dap_op_connect(connect)
Info : SWD DPIDR 0x6ba02477
Info : stlink_dap_op_connect(connect)
Info : SWD DPIDR 0x6ba02477
Info : STM32MP157AACx.cm4: Cortex-M4 r0p1 processor detected
Info : STM32MP157AACx.cm4: target has 6 breakpoints, 4 watchpoints
Info : STM32MP157AACx.cm4: external reset detected
Info : STM32MP157AACx.cpu0: hardware has 6 breakpoints, 4 watchpoints
Info : STM32MP157AACx.cpu1: hardware has 6 breakpoints, 4 watchpoints
Info : gdb port disabled
Info : gdb port disabled
Info : gdb port disabled
Info : starting gdb server for STM32MP157AACx.cpu0 on 3334
Info : Listening on port 3334 for gdb connections
Info : starting gdb server for STM32MP157AACx.cm4 on 3333
Info : Listening on port 3333 for gdb connections
Info : accepting 'gdb' connection on tcp/3333
Info : Halt timed out, wake up GDB.
Error: timed out while waiting for target halted
Error executing event gdb-attach on target STM32MP157AACx.cm4:

Info : New GDB Connection: 1, Target STM32MP157AACx.cm4, state: reset
Warn : GDB connection 1 on target STM32MP157AACx.cm4 not halted
Warn : negative reply, retrying
Warn : negative reply, retrying
O.K.

O.K.:0xE00FFFD0

Info : accepting 'gdb' connection on tcp/3333
Info : Halt timed out, wake up GDB.
Error: timed out while waiting for target halted
Error executing event gdb-attach on target STM32MP157AACx.cm4:

Info : New GDB Connection: 2, Target STM32MP157AACx.cm4, state: reset
Warn : GDB connection 2 on target STM32MP157AACx.cm4 not halted
Warn : negative reply, retrying
Warn : negative reply, retrying
Warn : negative acknowledgment, but no packet pending
Warn : negative acknowledgment, but no packet pending
Info : stlink_dap_op_connect(connect)
Info : SWD DPIDR 0x6ba02477
Info : Deferring arp_examine of STM32MP157AACx.cm4
Info : Use arp_examine command to examine it manually!
Info : stlink_dap_op_connect(connect)
Info : SWD DPIDR 0x6ba02477
Info : STM32MP157AACx.cm4: Cortex-M4 r0p1 processor detected
Info : STM32MP157AACx.cm4: target has 6 breakpoints, 4 watchpoints
Info : Halt timed out, wake up GDB.
Error: timed out while waiting for target halted

Warn : target STM32MP157AACx.cm4 is not halted (add breakpoint)
Error: can't add breakpoint: target running

I try to run debugging in both engineering mode and production mode, but nothing works. I also tried using both OpenOCD and GDB with different settings. For the purity of the experiment, I created a completely new project for STM32MP157A-DK1, chose serial debug for Cortex-M4 in CubeMX and got the same results. When I run my firmware using rproc everything works, but I need debugging.
