Alternate pin for I2C1_SCL on STM32C011J6Mx SO8N

[stevecimo]

Hi ALL

I'm playing with a STM32C011J6Mx on  a plane breakout board.

Sorry if this a basic question, new to using the SMT32 , last time I played with MCUs was 6809 CPU :)

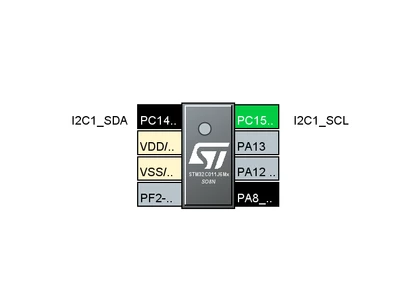

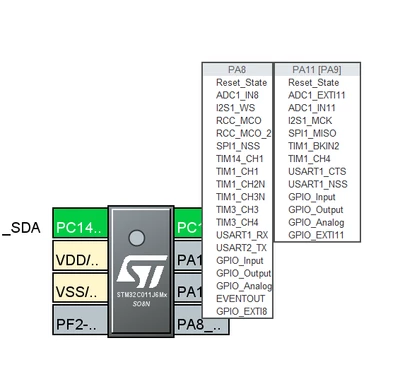

I wanted to use I2C and SWD, to use both I need to move the I2C1_SCL to it's alternate pin, when I CTL+ left click on the  PC15 (I2C1_SCL) it shows PA8 has an alternative.

But when I select PA8 , I2C_SCL , is not listed has an alternative function.

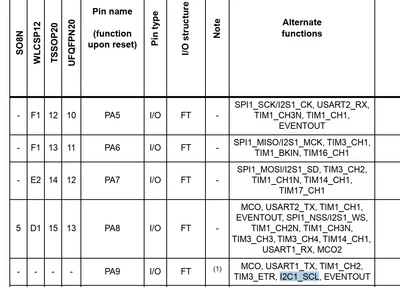

But the data sheet show it has a Alternate function on PA9,

How do I activate PA9, in the MX tool?



Regards, Stephen



[stevecimo]

Never mind figured it out " the old use pin 9 instead of pin 11" trick :(
