Bug: CubeMX adding "Startup" directory to the config of the .cproject file after every regeneration

[Heiko_Gericke]

Bug Description:

When regenerating a CubeMX Project with the STM32CubeIDE Toolchain selected, CubeMX will change the ".cproject" file and add a "./Startup/" directory to the source locations of the project if the following conditions are present:

1. In the root directory of the project (where the .ioc file is located) you need to have a directory with a name that is alphabetically closer to 'A' than the "./Core/" Directory. For example "./Application/"

2. In this directory there needs to be a "main.c" file, which would be created by the user.



This will cause CubeIDE to output a warning message on each build, stating that "./Startup/" could not be found.



If the directory name comes after "Core" alphabetically everything is working like expected and no "Startup" directory is added as a source location to the project configuration.



Version:

This behaviour is reproducible with CubeMX version 6.14.0. I currently have no easy way to test if this problem is also present on the most recent vesion 6.14.1

[Ghofrane GSOURI]

Hello @Heiko_Gericke

First let me thank you for posting.

I'm currently investigating this , i will get back to you asap.

You mentioned that "This will cause CubeIDE to output a warning message on each build, stating that "./Startup/" could not be found."

Could you please share a screenshot of the  warning message that you are facing.

THX

Ghofrane

[Heiko_Gericke]

Hey Ghofrane,

thanks for the quick response.

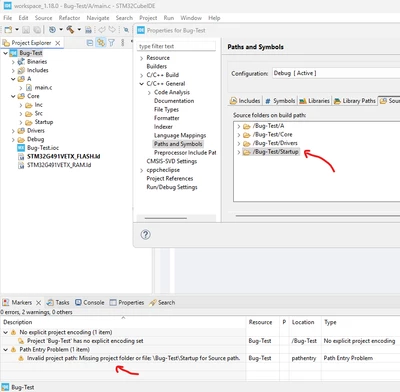

Here is a screenshot of the warning in CubeIDE as well as the entry in the project source locations that gets added by CubeMX:



[Ghofrane GSOURI]

Hello @Heiko_Gericke

Your detailed description is much appreciated.

Issue has been raised to dev team .

Internal ticket number :  213509

I will keep you posted with updates.

THX

Ghofrane
