Bugs in the Memory Management Tool of STM32CubeMX v6.15.0

[Fumihiko]

Hi,

I am using the following environment and found two bugs.

• OS : Ubuntu 20.04 LTS
• STM32CubeMX : 6.15.0
• Toolchain / IDE : CMake
• Board : NUCLEO-H563ZI

Bug 1 : After reconfiguring the memory address and size with Memory Management Tool following code generation, the .ld file does not follow the configuration.

This bug can be reproduced by following the steps below:

1. Configure the FLASH region on MMT.
2. Generated code and .ld files
3. Update the FLASH configuration on MMT. (e.g. change the start address of the FLASH region)
4. Re-generated code and .ld files



Bug 2 : The vector table offset value is not updated from 0x00U even if the ISR vector checkbox is enabled and the start address of the FLASH region is changed from 0x08000000

The VECT_TAB_OFFSET value in system_stm32h5xx.c is not updated after generating code. I think this value should be updated according to FLASH region configuration.

/************************* Miscellaneous Configuration ************************/
/*!< Uncomment the following line if you need to relocate your vector Table in
Internal SRAM. */
/* #define VECT_TAB_SRAM */
#define VECT_TAB_OFFSET 0x00U /*!< Vector Table base offset field.
This value must be a multiple of 0x200. */



[Mahmoud Ben Romdhane]

Hello @Fumihiko



First let me thank you for posting and welcome to the ST Community.

Your request is under investigation, and I will get back to you ASAP.



Thanks.

Mahmoud





[Mahmoud Ben Romdhane]

Hello @Fumihiko ,



I was able to reproduce your request.

Thank you for bringing this issue to our attention.

An internal Ticket was submitted to the Development Team (Internal Ticket Number: 216812).

I will keep you up to date when the problem is solved.



Thanks.

Mahmoud

[hooper_chen]

Hi @Mahmoud Ben Romdhane

I encountered the same issue with version 6.16.1. When can it be fixed.

Thanks.

[hooper_chen]

Hello @Mahmoud Ben Romdhane

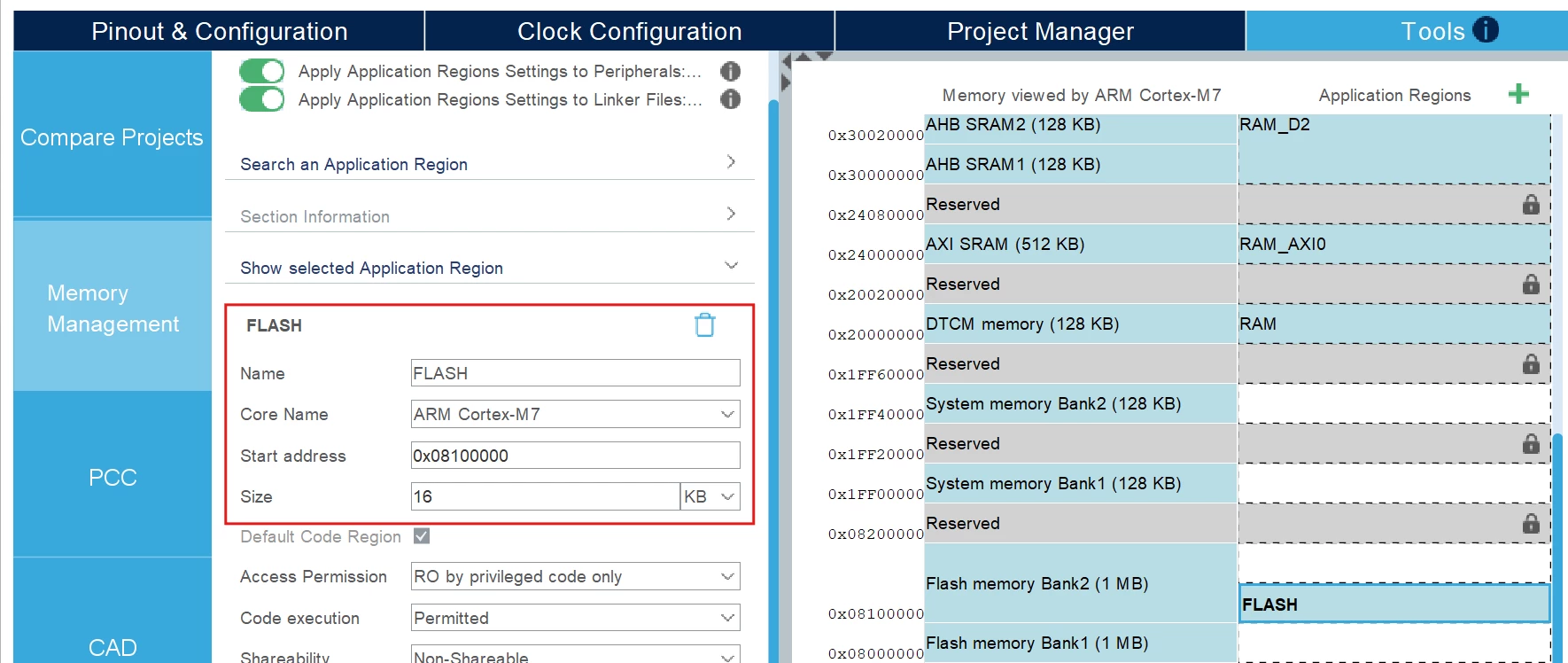

This is the file.

Thanks,

Hooper

[Mahmoud Ben Romdhane]

Hello @hooper_chen

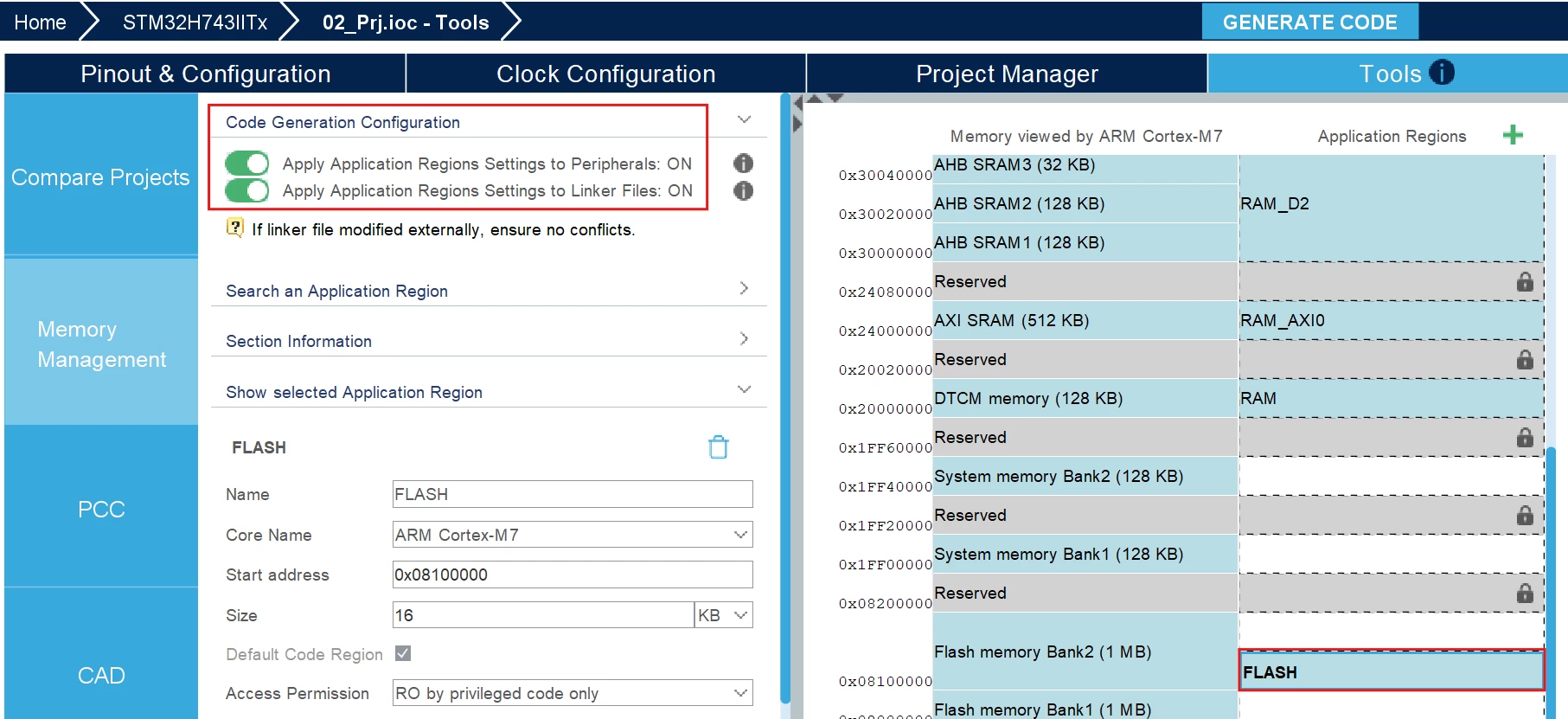

Further to your comment, you need to enable under Code Generation Configuration on the Memory Management Settings:

Apply Application Regions Settings to Peripheral

Apply Application Regions to Linker Files

Thanks.

Mahmoud









[hooper_chen]

Hello @Mahmoud Ben Romdhane

After I enable the switch.

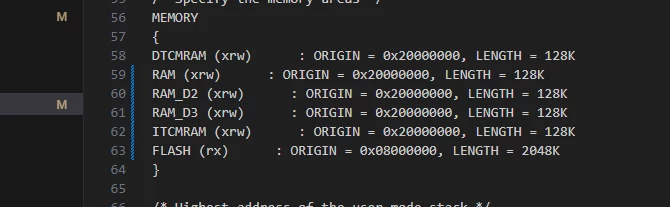

The ld file regenerate as below.



It seems not right.



Thanks,

Hooper

[Mahmoud Ben Romdhane]

Hello @hooper_chen

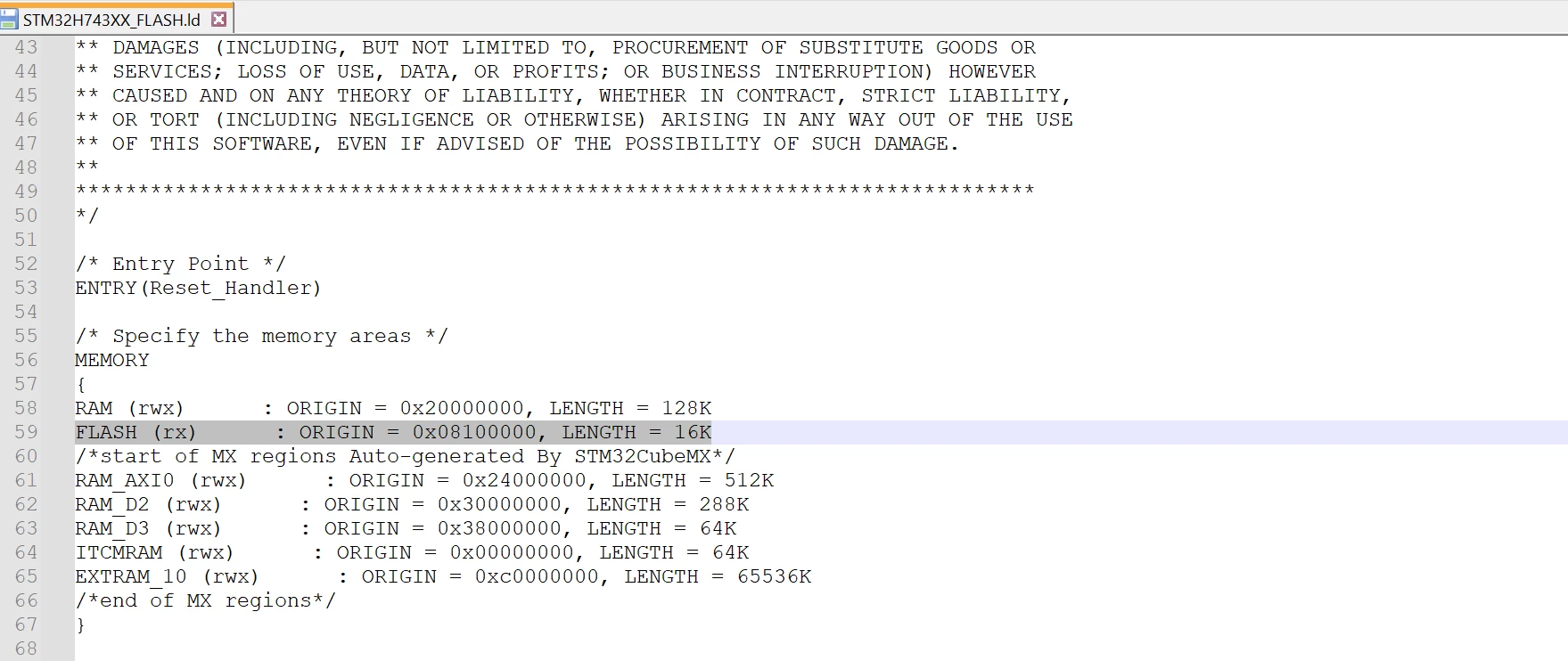

Further to your comment and while generating the project with CubeMX 6.17.0, the start address and size have been correctly updated in STM32H743XX_FLASH.ld.

Thanks

Mahmoud
