Composite USB device class + Azure RTOS USBX + USB_OTG_FS not using USB_OTG_HS?

[exlabs]

These excellent articles make the USBX worth a go for more complicated tasks (I wish composite devices were supported in CUBE IDE),

• How to implement the USB device composite class in STM32 using the Azure package
• How to implement the USB Device CDC (VCOM) in STM32 using the Azure USBX package

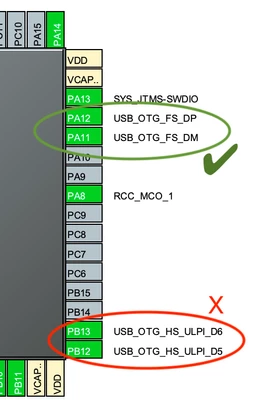

When creating a composite device, I see that USB_OTG_HS was used rather than the USB_OTG_FS. I know that the HS can use the internal FS PHY STM32 (so it is FS under-the-hood). However, it also changes the pins! My particular application is highly constrained, and I cannot change the pins, so I need to use USB_OTG_FS.



Can I use USB_OTG_FS along with Azure USBX to create a composite device, or does it require USB_OTG_HS?



Regards,

Daniel

[Pavel A.]

It can use the FS. FS and HS of STM32F4 have same capabilities when running on the internal PHY.
