Cube 6.17.0 timer_if invalid external reference to RTC Handler

[Tiaan]

Generating code for the STM32WLE5CBU.

In timer_if.c:

extern RTC_HandleTypeDef h;

but in rtc.c:

RTC_HandleTypeDef hrtc;



It happened in CubeMx 6.16.1 and STM32Cube_FW_WL_V1.4.0 and is still happening using CubeMX6.17.0 and STM32Cube_FW_WL_V1.5.0

[Ghofrane GSOURI]

Hello @Tiaan

First let me thank you for posting.

I am currently investigating this behaviour. I will get back to you ASAP.

Thx

Ghofrane

[Ghofrane GSOURI]

Hello @Tiaan

I tried to reproduce the issue described above using the latest STM32CubeMX version 6.17.0.
In the .ioc configuration, I enabled the following peripherals and middleware:

RTC , SUBGHZ, RNG, and LoRaWAN
I also enabled the option:

"Generate peripheral initialization as a pair of .c/.h files per peripheral"

After generating the code, I obtained the following result:

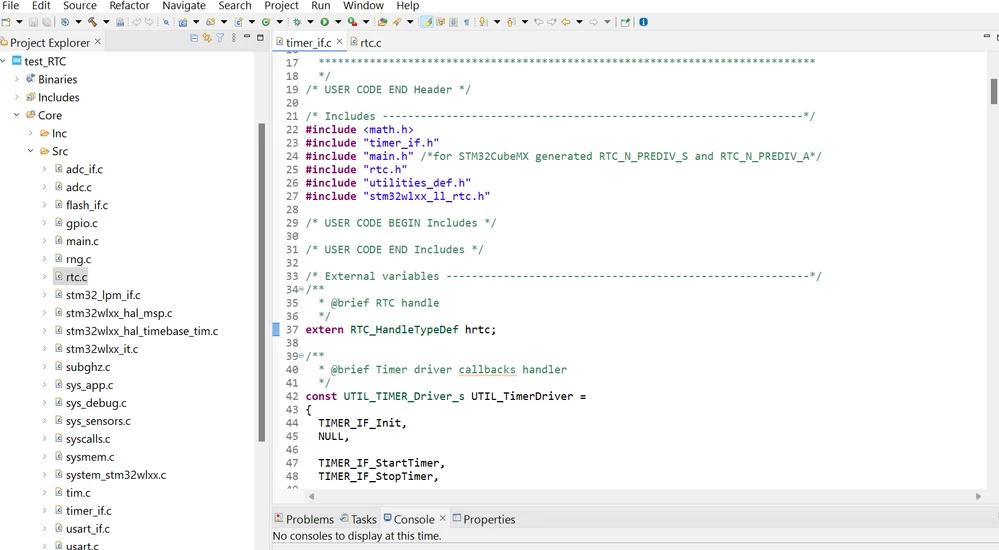

In timer_if.c



It would be useful if you could share your .ioc file ?

I will be waiting for your feedback.

THX

Ghofrane

[Tiaan]

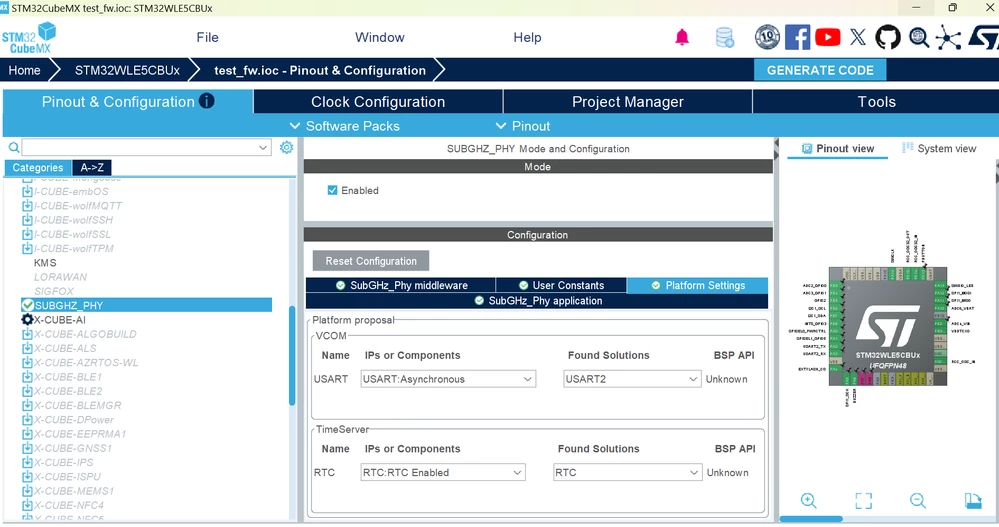

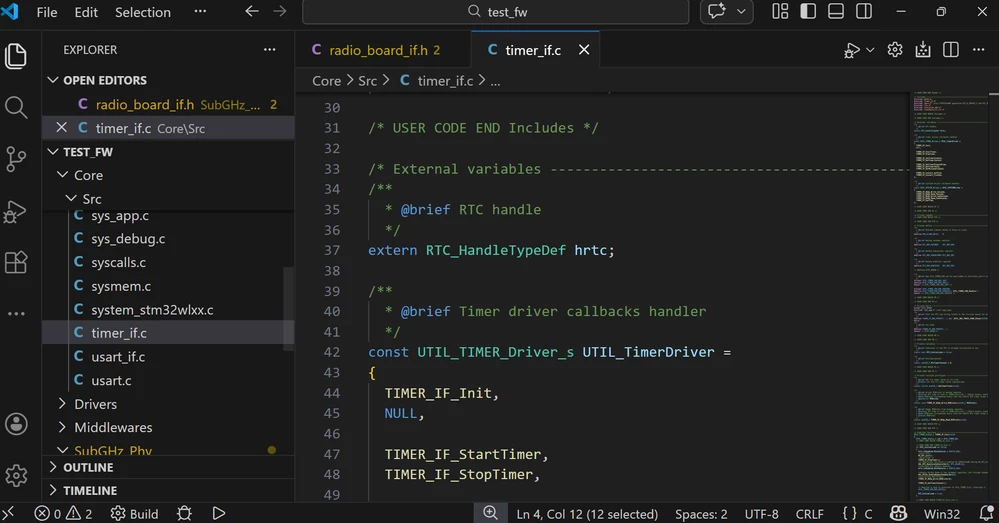

Sure, no problem.
