CubeMX 6.15 does not regenerate code

[ACC]

Hi all,

I recently updated the IDE to v1.19 and MX to v6.15.0, and the MX code generation is no longer working for me.

After some testing, I found out I can create new projects and code is (apparently) well generated. After this first generation, if i change anything in CubeMX and regenerate, the .ioc file is updated accordingly but the code is not changing at all.

My device is STM32U575VG (FW package 1.8.0).

As an example I created a project with just TIM1, generated the code, added TIM2 through CubeMX and renegerated.

I attach the first .ioc file (DELME_New_Project.ioc) and the updated (DELME_Updated_Project.ioc) for reference. The code has not been updated:

Any ideas? Am I missing something? Is anyone else facing this problem?

Alex







[Ghofrane GSOURI]

Hello @ACC

Could you please provide more details about your OS.

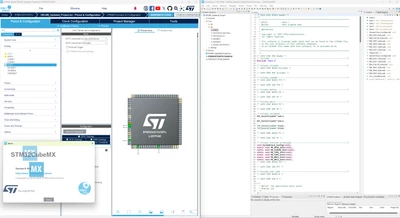

I have tested your IOC file, "DELME_Updated_Project.ioc," and, as shown in the screenshot, the generated code is correct.

Afterward, I configured additional peripherals (ADC1 and DAC), regenerated the code, and confirmed that everything is working as expected.

So I suggest that you close the CubeMX and then delete  the following folder .stm32cubemx  (On Windows: C:\Users\<YourUsername>\.stm32cubemx)

Then  Restart CubeMX and try again generate the code using your IOC  and make sure to use a new workspace



THX

Ghofrane

[ACC]

Hello @Ghofrane GSOURI,

I'm using Windows 11.

[Ghofrane GSOURI]

Hello @ACC

I performed the test using Windows 11 and MX is working correctly , which suggests that the issue may be specific to your environment. Please follow the steps outlined in my initial comment, and let me know your results. I will be awaiting your feedback.

THX

Ghofrane

[ACC]

Hi @Ghofrane GSOURI,

I had already tried deleting the .stm32cubemx folder before posting, and a few other things I read on other similar posts.

Using a local workspace solved the problem for me. I have had the workspace on a server directory for years without issues until now.

Thank you anyway.
