CUBEMX 6.15 with Keil Full Assert bug

[regjoe]

Same problem here (Cube 6.15.0, Keil uVision

Although HAL is selected,

Cube installed both HAL and LL files for ADC and some other peripherals by mistake.

which results in a compile error

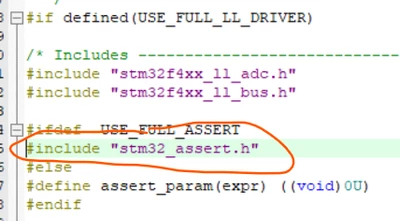

../Drivers/STM32F4xx_HAL_Driver/Src/stm32f4xx_ll_adc.c(25): error: 'stm32_assert.h' file not found

---

To get rid of this, I excluded the unnecessary file in the project as shown above and the error is gone.

Edit: Moved from CUBE MX with Keil 5.39 Full Assert bug in stm32l0xx DFP



[Mahmoud Ben Romdhane]

Hello @regjoe ,



Let me thank you for posting.

For more investigation, I suggest please that you provide your Ioc.File.



Thanks.

Mahmoud



[regjoe]

I've attached the .ioc and generated files by Cube.

Thanks

[Mahmoud Ben Romdhane]

Hello @regjoe ,

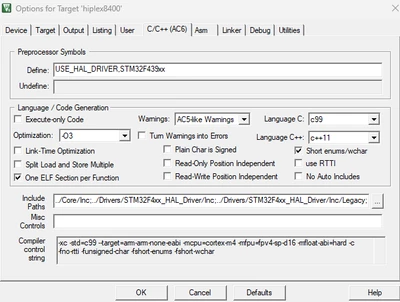

I reproduced your behavior, and I did not get compilation errors.

The stm32f4xx_ll_adc.c is generated and not used.





Thanks.

Mahmoud





[Pavel A.]

Why USE_FULL_LL_DRIVER is defined if LL drivers are not wanted in the project?
