CubeMX: accidentally disabled TIM6

[Krautermann]

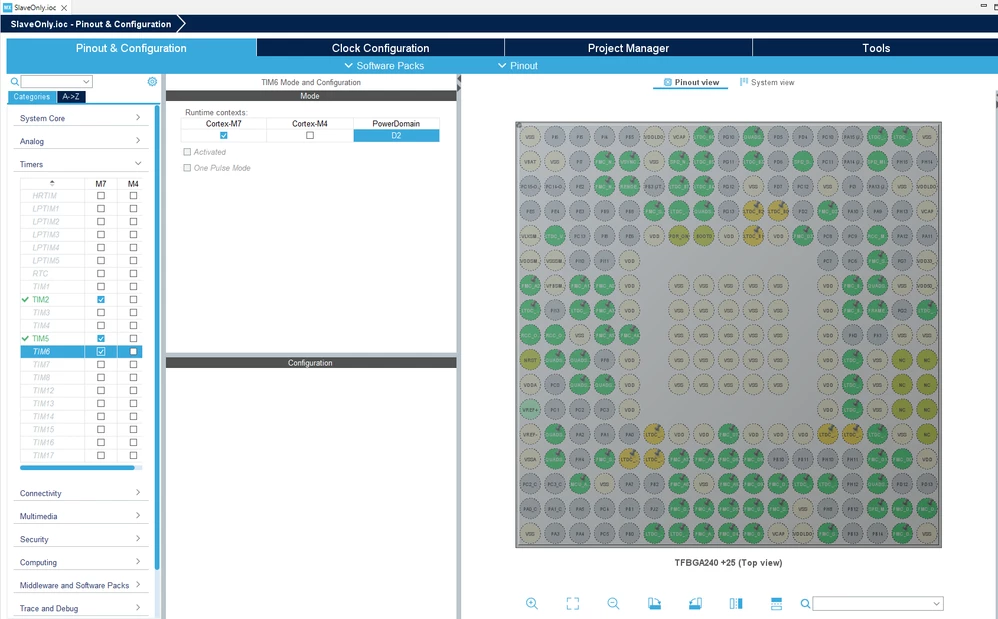

While enabling Timers in CubeMX, I accidentally clicked on TIM6 which is already on by default and used by the Core I believe. I re-enabled it by clicking on it again and of course the default settings got erased. And now whenever I try to run my code, it is giving me this error:

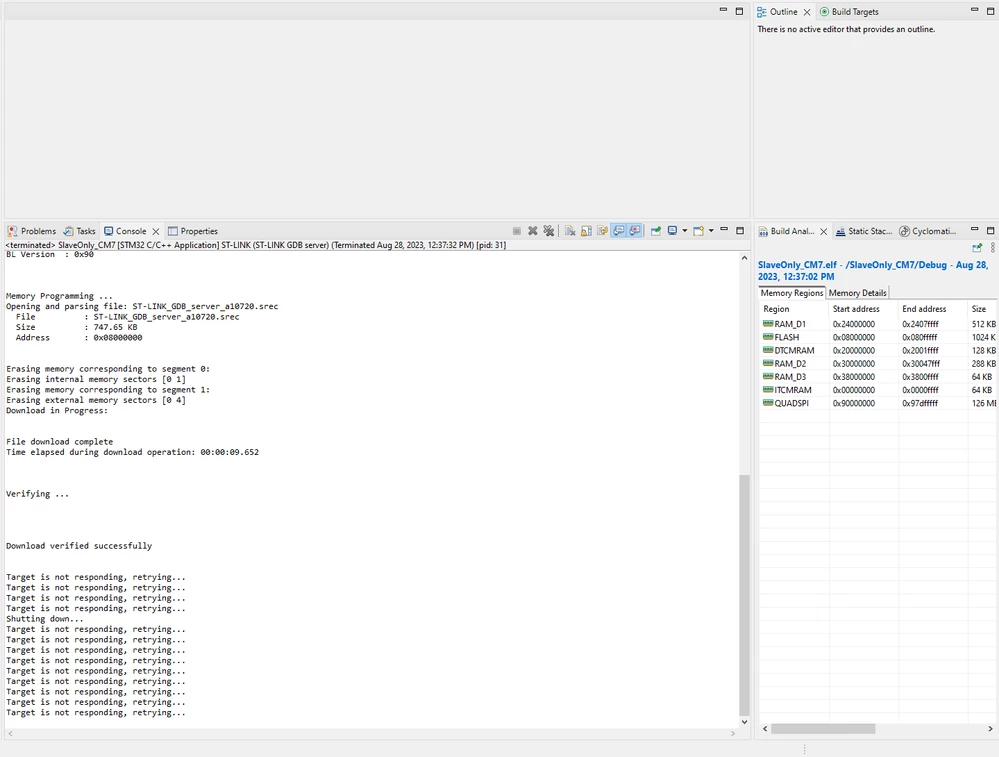

Target is not responding, retrying...



Question: How can I restore the TIM6 to its default settings so that I can solve this problem?



I compared the TIM6 settings with other working projects and couldn't find the difference. Other projects run on the board.



Board: STM32H745XI

[Imen.D]

Hello @Krautermann ,

The "Target is not responding, retrying..." error message means that there is a communication problem between the board and the debugger. You need to consider and review a number of factors, like incorrect settings on the ST-Link, or wrong debug configuration, issue in debug pins assignment, USB connection issues...

First, try recover board with STM32CubeProgrammer: try connection under reset, or with BOOT0 pulled HIGH, might provide a quick way of recovery.

Check SMPS/LDO regulator issue. You can have a look at these articles that may help you:

• How can I recover my STM32H7 board after facing a power configuration deadlock?
• How to make sure the STM32 starts properly in our design?



Imen
