CubeMX bug in generating ThreadX files for Cortex_M55

[prapk-engr]

Hello,

Using the latest CubeMX 6.15.0 I was generating ThreadX for Secure - Non Secure Project (for STM32N6 - Cortex_M55).

This did not add file : "\Middlewares\ST\threadx\ports\cortex_M55\gnu\src\txe_thread_secure_stack_allocate.c" and so is not added in to the CubeIDE project.

Where as it's counterpart - "\Middlewares\ST\threadx\ports\cortex_M55\gnu\src\txe_thread_secure_stack_free.c" is getting generated and added to the project.

Also, compiler includes like "/Secure_nsclib" , "/Drivers/CMSIS/Include" did not get added into the Compiler Include Paths in the CubeIDE project that this CubeMX generates.

[Ghofrane GSOURI]

Hello @prapk-engr

Could you please provide your IOC in order to reproduce the same issue that you are facing.

THX

GHofrane

[prapk-engr]

Hi @Ghofrane GSOURI

Here attached the ioc file.

Thank you



[Ghofrane GSOURI]

Hello @prapk-engr

Regarding the missing file txe_thread_secure_stack_allocate.c, thank you very much for bringing this issue to our attention.

I have raised this issue with our development team for resolution under internal ticket 216459.

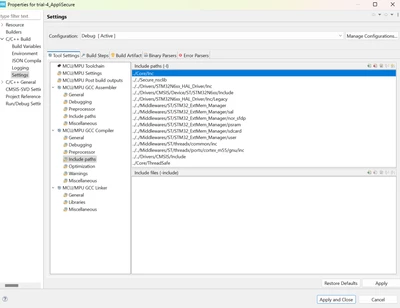

As for your second point, after reviewing the compiler include paths, I can confirm that both /Secure_nsclib and /Drivers/CMSIS/Include have been successfully added.



THX

Ghofrane
