CubeMX doesnt generate any code

[RafaelS]

Hello,

I am new to programming STM MCUs and currently working with an STM32H745I-DISCO board.

I am trying to implement a simple blink project. In CubeMX, I created a new project and configured pin PJ2 as an output push-pull. Then, in the Project Manager tab, I selected the Toolchain/IDE: STM32CubeIDE.

However, when I generate code and open the project, I can’t see any lines of code configuring the PJ2 pin.

I’m not sure if I’m doing something wrong or if there’s a bug in the software. I’ve spent several days trying to figure out how to set up a simple blink project. Could someone please provide any clues or guidance?

Thank you in advance.

[mƎALLEm]

Hello @RafaelS and welcome to the community,

Could you please compress your project and attach it here?

[RafaelS]

Hello @mƎALLEm , thank you for the welcome.

Yes, I attach the project here.

[mƎALLEm]

Hello,

Thank you for the sharing:

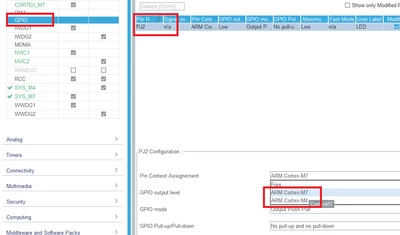

Select one of the core that will handle that GPIO.

Hope that answers your question.

[RafaelS]

Thank you!
