CubeMX support for Cmake

[yourigh]

Hello,

I would like to use the offical VScode extentention together eith STM32CubeMX.

The guide says I need to set up MX generator Toolchain / IDE to Cmake.

However I have no such option:



How could I use the extention with CubeMX?
I remember the option was there about a year ago on a different MCU (F3).

I have STM32F103C8.

Thank you!





[AScha.3]

Hi,

if you choose : makefile ...?

[yourigh]

unfortunately, this does not work then in VScode. It would be possible but it would require a manual setup without the extension.

[Imen.D]

Hello @yourigh,

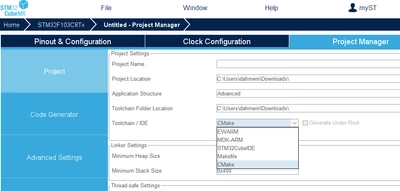

Please try with latest release of STM32CubeMx (V 6.11.0).

AN5952 This application note describes how to use CMake in STM32CubeIDE.

[yourigh]

Thanks for the reply,

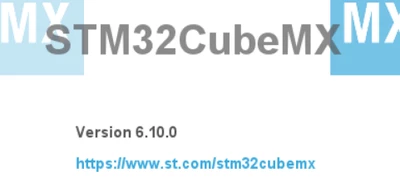

I do have exactly that version, under Windows. But I don't have the last option there. Do you have any recommendation what I can do?



[Imen.D]

Hi @yourigh ,

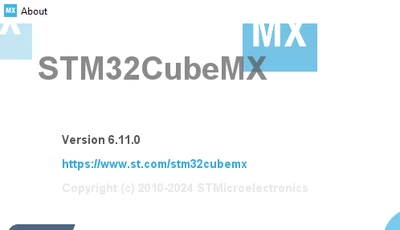

Try with the latest release (Version 6.11.0)



[yourigh]

Thank you, it works.

I updated the Cube, but it did not go through because of the rights error, so I thought I have the latest one. After the successful update, it started to work.
