CubeMX5.6 lwIP code generated for stm32f407 discovery board doesn't compile in KEIL 5.29 Arm Compiler 6.13

[naser moravej]

Hello everyone,

I generated a code for having ethernet on stm32f407 discovery board.

I just enabled lwIP and ethernet in cubeMX and nothing more.

when I compiled the generated code in KEIL 5.29 Arm Compiler version5, everything is OK, but when I change compiler to Arm Compiler version6, I got this error. I've got 83 errors because of missing <sys/time.h>

Thanks for you're answers.

../Src/lwip.c(21): warning: In file included from...
../Inc\lwip.h(28): warning: In file included from...
../Middlewares/Third_Party/LwIP/src/include\lwip/opt.h(52): warning: In file included from...
../Middlewares/Third_Party/LwIP/src/include\lwip/debug.h(40): warning: In file included from...
../Middlewares/Third_Party/LwIP/src/include\lwip/arch.h(48): warning: In file included from...
../Middlewares/Third_Party/LwIP/system\arch/cc.h(46): error: 'sys/time.h' file not found
#include <sys/time.h>
 ^~~~~~~~~~~~
1 error generated.
compiling lwip.c...
../Src/main.c(23): warning: In file included from...
../Inc\lwip.h(28): warning: In file included from...
../Middlewares/Third_Party/LwIP/src/include\lwip/opt.h(52): warning: In file included from...
../Middlewares/Third_Party/LwIP/src/include\lwip/debug.h(40): warning: In file included from...
../Middlewares/Third_Party/LwIP/src/include\lwip/arch.h(48): warning: In file included from...
../Middlewares/Third_Party/LwIP/system\arch/cc.h(46): error: 'sys/time.h' file not found
#include <sys/time.h>
 ^~~~~~~~~~~~

[Nesrine.JLASSI]

Hi @naser moravej​

Could you please share your .ioc file to check the issue.

Please tell me which STM32CubeMX version do you use.

Best regards,

Nesrine

[Junde]

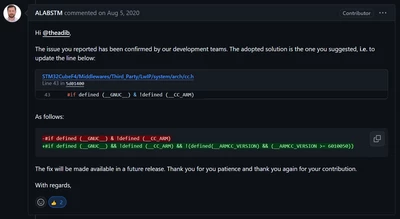

Refer to HERE for the solution.

#if defined (__GNUC__) && !defined (__CC_ARM) && !(defined(__ARMCC_VERSION) && (__ARMCC_VERSION >= 6010050))
