Doubt with GPIO config in stm32cubemx

[rubenles]

Hello,

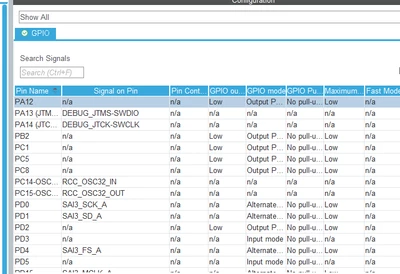

I have a question while configuring the GPIO on stm32cubeMX. I put all my pins in the program like this:

When I configure all the pins and generate the code, not all the configured pins appear in the gpio.c file on stm32cubeIDE; for example, the UART RX and TX pins do not appear in stm32cubeIDE.

Thank you so much.

[mƎALLEm]

Hello,

Could you please share your ioc file reproducing the behavior as we could understand what is going on?

[rubenles]

Just trying to generate the code to show it to you, i realize that now all the gpio configs are there. I don't really know if i was confused just with UART or it was an error. By the way, it is solved, thank you so much.

[Andrew Neil]

---

@rubenles wrote:

the UART RX and TX pins do not appear in stm32cubeIDE.

---

Because they are used as UART RX & TX - rather than just as GPIOs ?

Have you looked in the UART config?

EDIT:

See the HAL_UART_MspInit() in your usart.c; also look in main.h ...

[rubenles]

@Andrew Neil UART config was there, true, thank you so much for this advice!!! Other gpio still doesn't appear, but uart is solved thank you!!

[TDK]

Normally, pins are initialized in stm32h7xx_hal_msp.c for most peripherals.

[rubenles]

@TDK This file is empty for me, just one interrupt configuration is in there



 __HAL_RCC_SYSCFG_CLK_ENABLE();

 /* System interrupt init*/
 /* PendSV_IRQn interrupt configuration */
 HAL_NVIC_SetPriority(PendSV_IRQn, 15, 0);

But nothing about gpio configs.

Thank you
