Edit the auto-generated code in CubeMX

[JohnFrancis]

Is there a way to edit the auto-generated code in CubeMX, such as in the function below?

please see the code below:

void MX_USART2_UART_Init(void)
{
 /* USER CODE BEGIN USART2_Init 0 */
 /* USER CODE END USART2_Init 0 */

 /* USER CODE BEGIN USART2_Init 1 */
 /* USER CODE END USART2_Init 1 */

 huart2.Instance = USART2;
 #ifdef SLOW_CLOCK
 huart2.Init.BaudRate = 9600;
 #else
 huart2.Init.BaudRate = 152285;
 #endif huart2.Init.WordLength = UART_WORDLENGTH_8B;
 ...
}

---

Edited to apply source code formatting - please see How to insert source code for future reference.

[Andrew Neil]

Of course you can edit it.

But any edits outside the USER CODE BEGIN ... USER CODE END marker comments will be lost if you re-generate the code.

You can set set CubeMX to make backups when you re-generate and/or you can keep your own backups - to help you re-apply any edits ...

[JohnFrancis]

But is there a way to make edits outside the /* USER CODE BEGIN ... */ and /* USER CODE END ... */ markers without losing them when the code is re-generated?

[Andrew Neil]

No.

The only edits that are retained over re-generating are those within User Code sections. That is the whole point of the User Code sections.



PS:

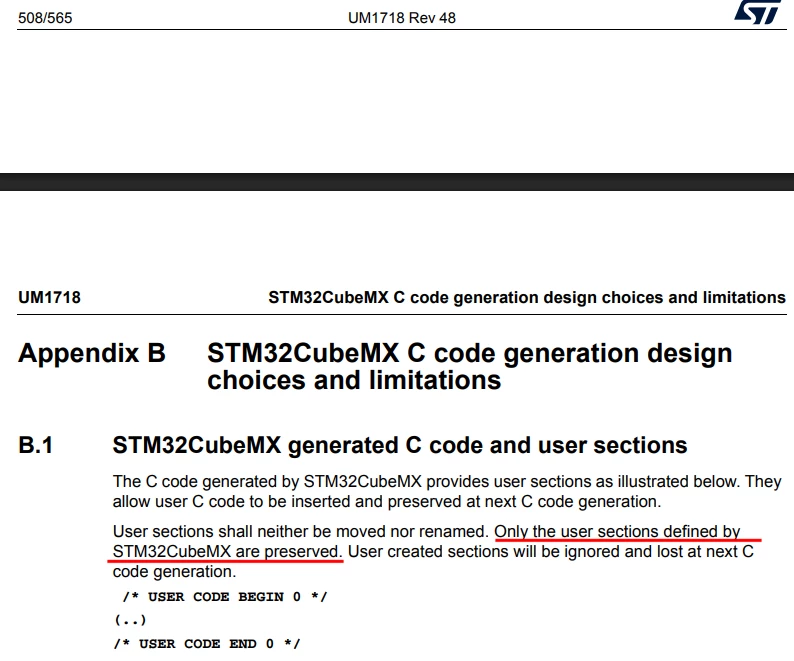

https://www.st.com/resource/en/user_manual/um1718-stm32cubemx-for-stm32-configuration-and-initialization-c-code-generation-stmicroelectronics.pdf#page=509
